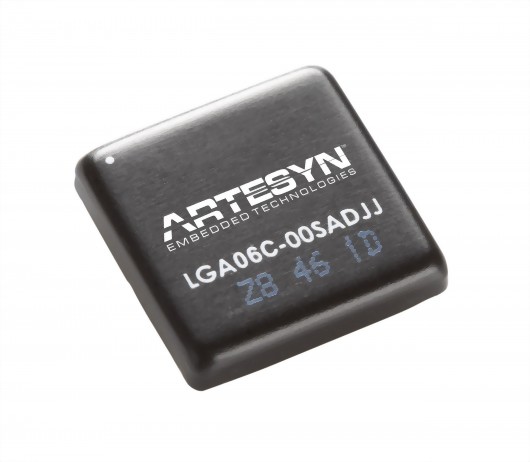

LGA06C Series C類高密度電源
The LGA06C series is a 6 amp non-isolated DC-DC converter that provides a cost-effective high density power solution in a low profile, surface-mount land grid array package for space sensitive applications.
型號 :
lga06c series
The converter accepts a wide range 3–14Vdc input and has a 30 watt power output rating. Its output voltage is adjustable from 0.59 to 5.1 Vdc to accommodate a wide variety of silicon power needs. Standard features include remote sense, remote enable and voltage margining. LGA06C series converters offer resistor-programmable undervoltage lockout, as well as non-latching short-circuit and overvoltage protection.
-
Total Max Power:
30 W -
Total Max Current:
6 A -
Input Voltage:
3 V to 14 V -
Output Voltage:
0.59 V to 5.1 V -
Outputs:
Single -
Size (L x W x H):
0.640" x 0.640" x 0.129" -
Warranty:
2 years -
Operating Temperature:
-40°C to +85°C
- Wide Input Voltage Range
- Excellent Transient response
- High Efficiency
- Standard Features: Input UVLO, Enable, Output Adjust, Differential Remote Sense, Output Margining, Power Good Signal, Short Circuit and Overcurrent Protection
- Low Profile in a small compact LGA footprint
- Wide Output Adjust Range
- RoHS 6 Compliant
