• SIL20C2 Series C類非隔離DC-DC電源

SIL20C2 Series C類非隔離DC-DC電源

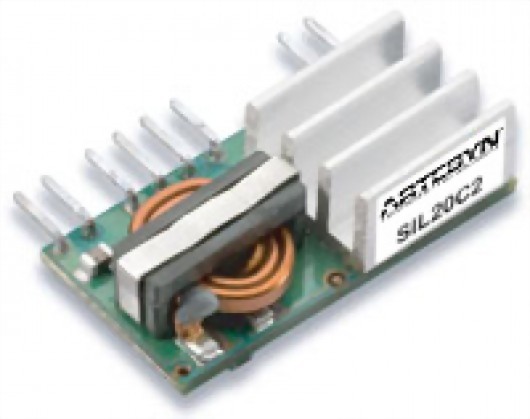

The SIL20C2 series 20 amp high density non-isolated DC-DC converter is designed for cost- and space-sensitive applications.
型號 : sil20c2 series

The SIL20C2 series 20 amp high density non-isolated DC-DC converter is designed for cost- and space-sensitive applications. It accepts a wide range 4.5 to 13.8 Vdc input and provides an output that is adjustable from 0.59 to 5.1 Vdc to accommodate a wide variety of silicon power needs. Rated at 100 watts, the converter has a typical efficiency of 93%. Standard features include remote sense, remote On/Off and remote ‘power good’ indication.

SIL20C series converters offer a choice of through-hole horizontal and through-hole vertical mounting.
  • Total Max Power:
    100 W
  • Total Max Current:
    20 A
  • Input Voltage:
    4.5 V to 13.8 V
  • Output Voltage:
    0.59 V to 5.1 V
  • Outputs:
    Single
  • Size (L x W x H):
    1.200" x 0.610" x 0.482"
  • Warranty:
    2 years
  • Operating Temperature:
    0 to +70°C
  • Wide input voltage range: 4.5 to 13.8Vdc
  • Wide output voltage trim / adjustability: 0.59 to 5.1Vdc
  • High Efficiency up to 93%
  • Remote on/off
  • Remote sense
  • Excellent transient response
  • Current sink capability for termination applications
  • No added input or output capacitors needed for ripple capability or stability
