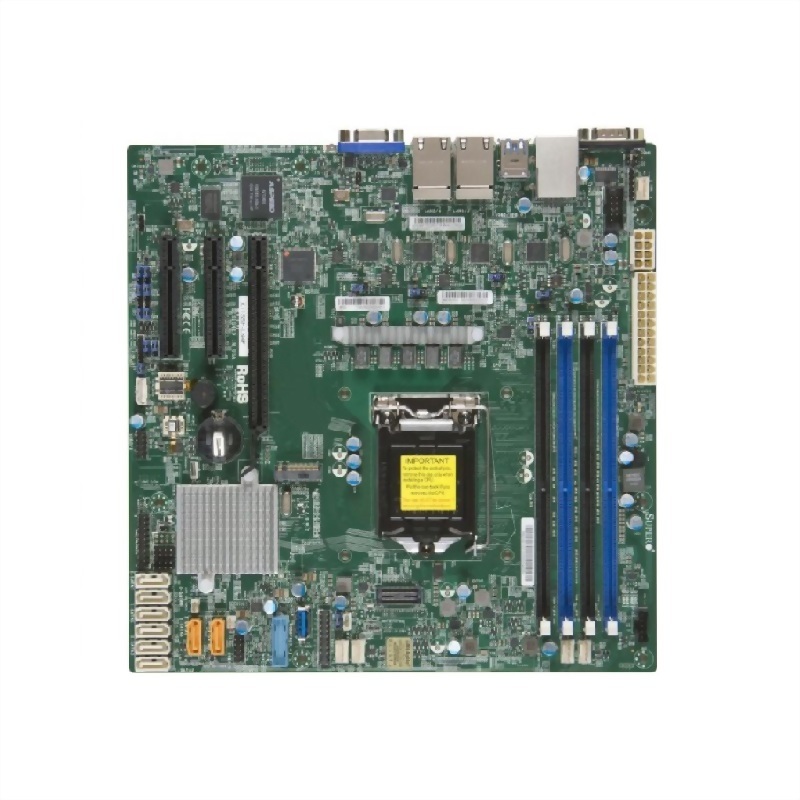

Form Factor
|
|
Dimensions
|
-
9.6" x 9.6" (24.38cm x 24.38cm)
|
|
|
CPU
|
-
Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
-
Single Socket H4 (LGA 1151) supported, CPU TDP support 80W
|
Note
|
-
BIOS version 2.0 or above is required to support 7th Generation Intel® Core i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
|
|
|
Memory Capacity
|
-
64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
|
Memory Type
|
-
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
|
DIMM Sizes
|
|
Memory Voltage
|
|
Error Detection
|
-
Corrects single-bit errors
|
|
|
Chipset
|
|
SATA
|
-
Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
IPMI
|
|
Network Controllers
|
-
Quad LAN with Intel® Ethernet Controller I210-AT
|
Graphics
|
|
|
|
USB
|
-
6 USB 2.0 ports (2 rear + 4 headers)
-
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
|
Video Output
|
|
Serial Port / Header
|
-
2 COM Ports (1 rear, 1 header)
|
TPM
|
|
|
|
PCI-E
|
-
1 PCI-E 3.0 x8 (in x16 slot),
-
1 PCI-E 3.0 x8,
-
1 PCI-E 3.0 x4 (in x8 slot)
|
M.2
|
-
M.2 Interface: PCI-E 3.0 x2
-
Form Factor: 2280
-
Key: M-Key
-
Double Height Connector
|
|
|
BIOS Type
|
-
128Mb SPI Flash EEPROM with AMI BIOS
|
BIOS Features
|
-
Plug and Play (PnP)
-
APM 1.2
-
PCI 2.3
-
DMI 2.3
-
ACPI 1.0 / 2.0 / 3.0 / 4.0
-
USB Keyboard support
-
Hardware BIOS Virus protection
-
SMBIOS 2.7.1
-
UEFI 2.3.1
|
|
|
Software
|
-
Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
Power Configurations
|
-
ACPI Power Management
-
Power-on mode for AC power recovery
|
|
|
Voltage
|
-
+12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
|
FAN
|
-
5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
|
Temperature
|
-
PECI, Thermal Monitor 2 (TM2) support, Monitoring for CPU and chassis environment, CPU thermal trip support
|
LED
|
-
CPU / System Overheat LED, UID/Remote UID
|
Other Features
|
-
Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, VHD, WOL
|
|
|
Operating Temperature Range
|
-
0°C ~ 50°C (32°F ~ 122°F)
|
Non-Operating Temperature Range
|
-
-40°C - 70°C (-40°F - 158°F)
|
Operating Relative Humidity Range
|
-
8% - 90% (non-condensing)
|
Non-Operating Relative Humidity Range
|
-
5% - 95% (non-condensing)
|
|
