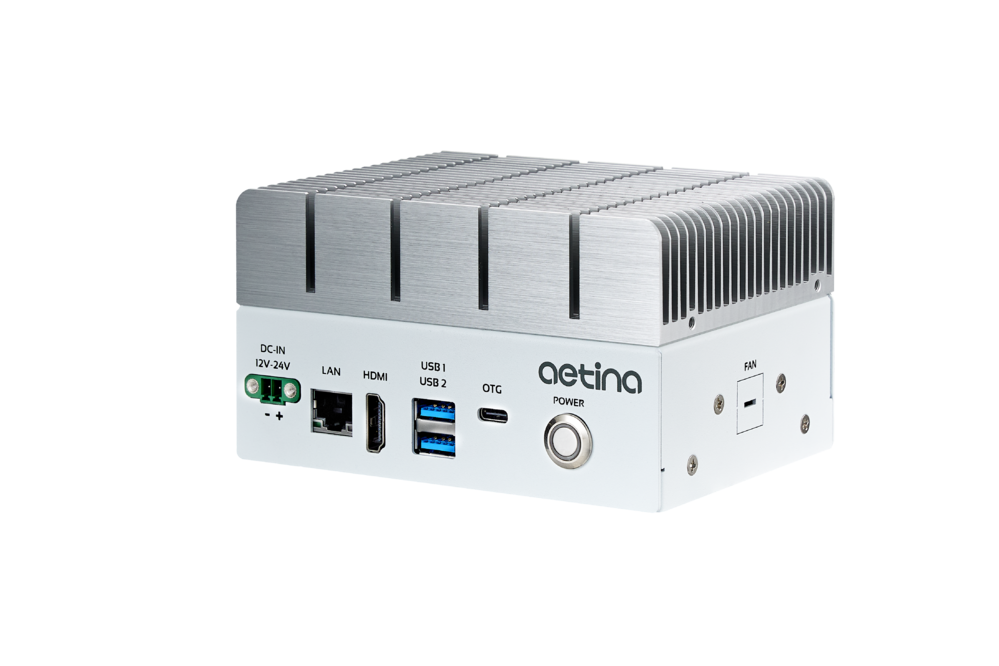

AIE-CO21/31 | AIE-CN31/41 無風扇邊緣運算電腦
• 支援 NVIDIA Jetson Orin™ NX and Orin Nano™ (支援Super Mode) 模組
• 1 x M.2 E-Key, 1 x M.2 M-Key (內建128GB)
• 1 x RJ-45 GbE port
• 寬輸入電壓設計：12至24 VDC
• 作業溫度 -25°C ~ +55°C
• 無風扇設計
• 1 x M.2 E-Key, 1 x M.2 M-Key (內建128GB)
• 1 x RJ-45 GbE port
• 寬輸入電壓設計：12至24 VDC
• 作業溫度 -25°C ~ +55°C
• 無風扇設計
型號 :
AIE-CO21/31 | AIE-CN31/41
| • 體積最小的Jetson模組 高達80倍的AI效能可實現AI推理 |
|
NVIDIA Jetson Orin™ NX模組提供高達100 TOPS的效能，是NVIDIA Jetson AGX Xavier™模組的3倍多，NVIDIA Jetson Xavier™ NX模組的5倍左右；NVIDIA Jetson Orin Nano™提供高達40 TOPS的效能，是NVIDIA Jetson Nano™模組的80倍。換言之，NVIDIA Jetson Orin NX和Orin Nano模組為體積最小的Jetson模組建立了新的主流和入門級邊緣AI標準。 |
| • 充足的M.2 內外儲存擴充兼備 |
| AIE-CO21/31和AIE-CN31/41是用於邊緣運算的無風扇系統，內建1個M.2 E-Key用於Wifi/BT、1個M.2 M-Key用於儲存。為了避免邊緣運算的資料儲存空間不足，更支援外部M.2 2242 NVMe的高速傳輸與擴充。 |
| • 寬輸入電壓和和無風扇設計 適用於智慧城市和智慧農業 |
|
為了滿足智慧城市和智慧農業等各種應用的需求，高成本效益的維護和高可靠性至關重要。因此，AIE-CO21/31和AIE-CN31/41特別設計了無風扇和靜音機制、能在-25°C至55°C的作業溫度範圍內運作。此外，支援12至24 VDC的廣輸入電源範圍，提供彈性的電源供應選擇。 |
| Model Number | AIE-CO21 | AIE-CO31 | AIE-CN31 | AIE-CN41 |
| Module Compatibility | NVIDIA Jetson Orin Nano 4GB | NVIDIA Jetson Orin Nano 8GB | NVIDIA Jetson Orin NX 8GB | NVIDIA Jetson Orin NX 16GB |
| AI Performance | 20 TOPS | 40 TOPS | 70 TOPS | 100 TOPS |
| GPU | 512 Core NVIDIA Ampere, with 16 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | |
| CPU | 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 | 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 | |
| Memory | 4GB 64-bit LPDDR5 34GB/s | 8GB 128-bit LPDDR5 68GB/s | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s |
| Storage | 1 x M.2 M-Key 2242 (128GB built-in) | |||

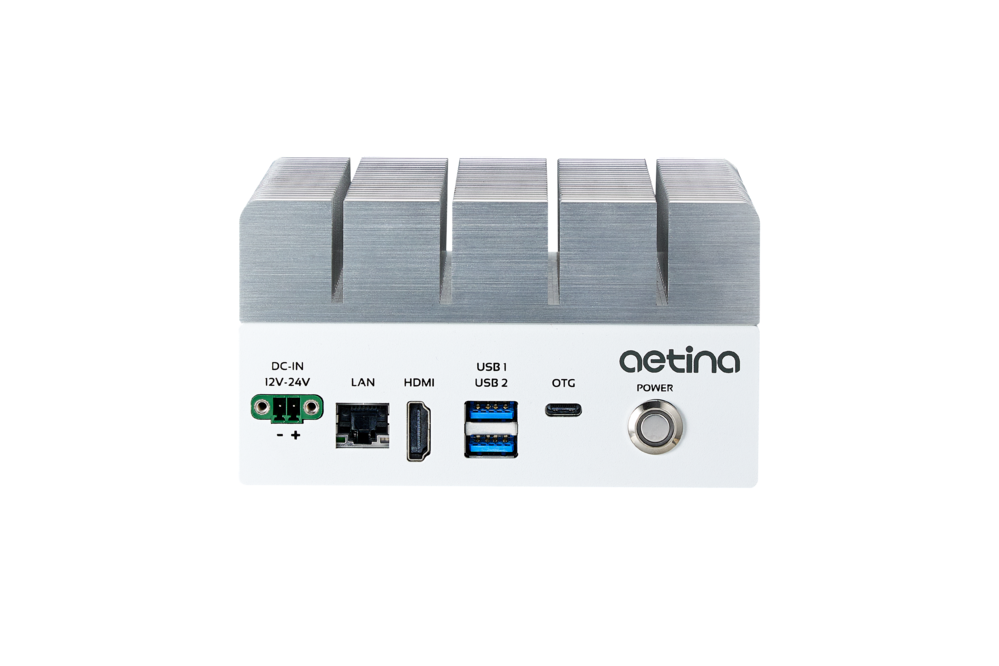

| Display | 1 x HDMI 2.0 Type A | |||
| RTC | With super capacitor, battery (optional) | |||
| LAN | 1 x RJ-45 GbE ports | |||
| USB |
2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared) 1 x OTG Type-C |
|||
| I/O Interfaces |

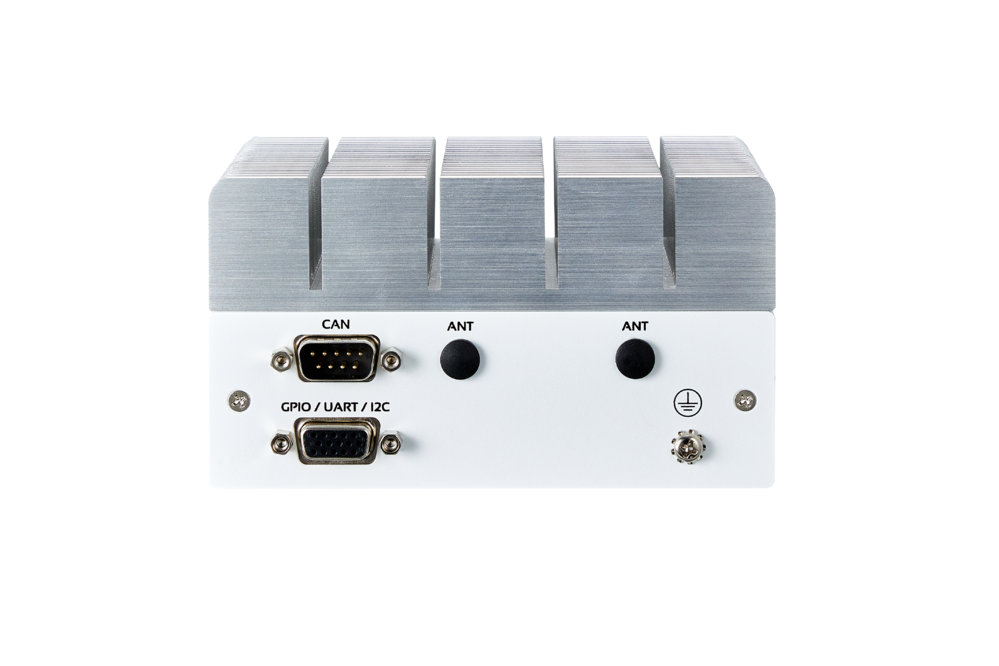

5 x GPIO, 1 x UART, 1 x I2C, 1 x CAN (isolation; support CAN FD) |
|||
| Expansion |
1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2242 (NVMe 128GB built-in) |
|||
| MISC. Function |

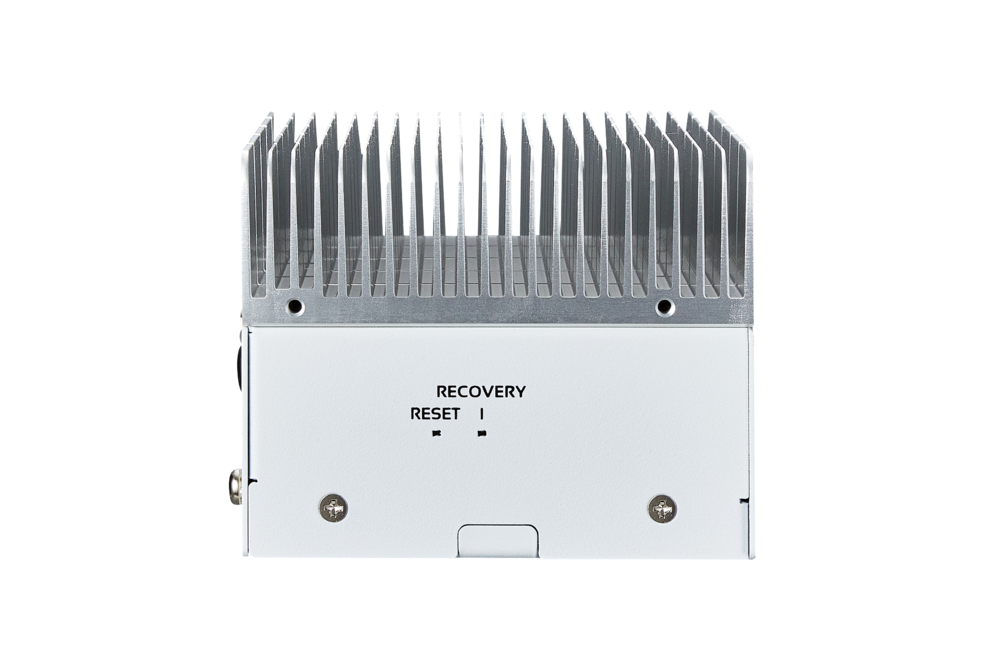

1 x Power / 1 x Recovery Button / 1 x Reset Button 1 x CAN 2.0b with isolation |
|||
| Power Input/Connector | DC-in 12-24VDC / 2-Pin Terminal Block | |||
| Power Consumption |
Idle: 3.4 W Full Loading: 25.08* W |
Idle: 3.7 W Full Loading: 35.5* W |
||
| *For more test condition information, please refer to user manual | ||||
| Dimension (WxDxH) | 130 x 90.2 x 72 mm (5.11 x 3.55 x 2.83 in) | |||
| Mounting | Wall Mount (optional) / Din Rail (optional) | |||
| Net Weight | 0.927 kg (2.044 lb) | |||
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |||
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |||
| Temperature |
Operating Temp. -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow |
|||
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |||
| Software Support | Linux (Support Jetpack 5.0 above) | |||
| Certification | CE / FCC Class A / UKCA | |||
