MBD-X11DPL-i (12" x 10") 工業級主機板

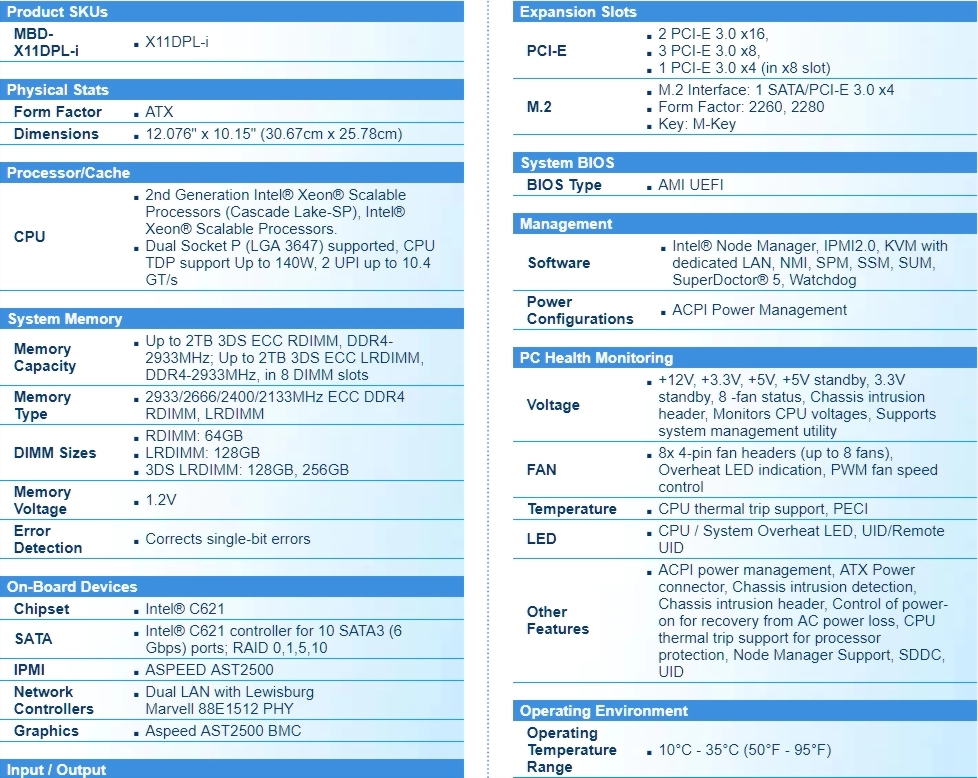

2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s,Intel® C621,Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots,1 VGA port,2 PCI-E 3.0 x16,3 PCI-E 3.0 x8,1 PCI-E 3.0 x4 (in x8 slot)
型號 :
X11DPL-i
-
2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s - Intel® C621
- Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
-
2 PCI-E 3.0 x16,
3 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: 1 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280
M.2 Key: M-Key - 1 VGA port

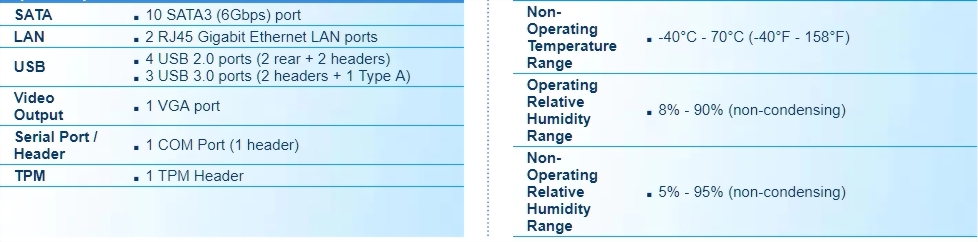

- Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
-
Dual LAN with Lewisburg
Marvell 88E1512 PHY
Parts List
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Note: CPU TDP up to 140W; Square type H/S
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
