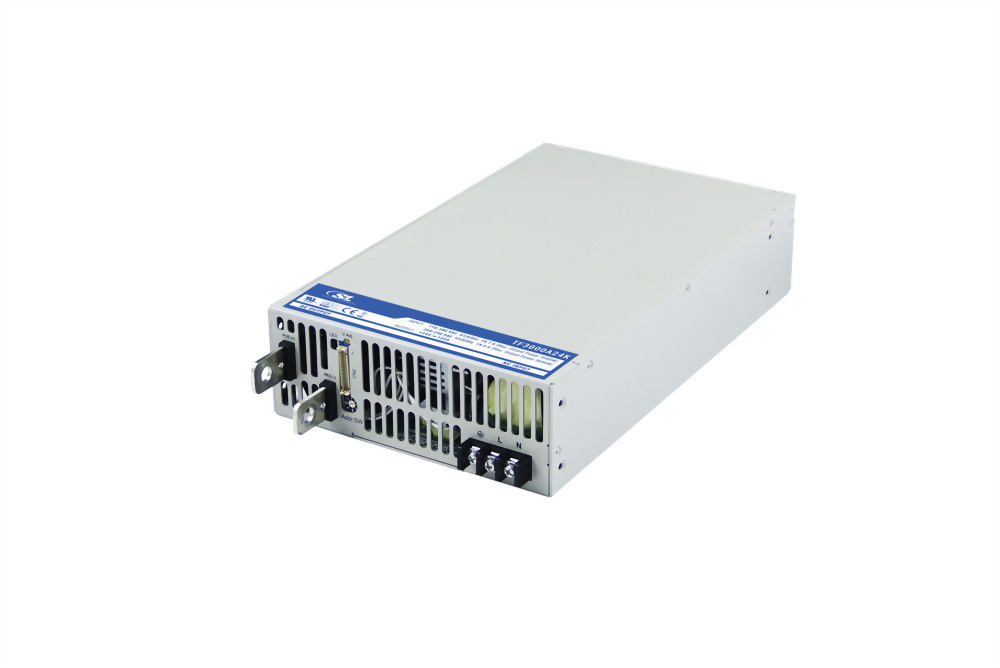

TF3000 封閉式電源供應器3000W
• 3000W Fan-cooled (Load & Temperature Controlled)
• Certified to EN/IEC/cUL62368-1
• Programmable output Voltage (0% ~ 105%)
• Programmable output Current (0% ~ 105%)
• Forced current sharing at parallel operation
• Constant current limit
• Selectable +5V / 0.5A or +9V / 0.3A auxiliary output
• Remote setting multiple PSU via RS232, RS485 & I²C
• Power OK signal
• Remote ON / OFF, Remote sense function
• Protection: OVP, OLP, OTP, Fan failure
• 3 Year Warranty
• RoHS Compliant
• Global control via RS232
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Certified to EN/IEC/cUL62368-1
• Programmable output Voltage (0% ~ 105%)
• Programmable output Current (0% ~ 105%)
• Forced current sharing at parallel operation
• Constant current limit
• Selectable +5V / 0.5A or +9V / 0.3A auxiliary output
• Remote setting multiple PSU via RS232, RS485 & I²C
• Power OK signal
• Remote ON / OFF, Remote sense function
• Protection: OVP, OLP, OTP, Fan failure
• 3 Year Warranty
• RoHS Compliant
• Global control via RS232
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
型號 :
TF3000
| MAX WATTS | 3000.00W |
| OUTPUT RANGE (VDC) | 12-60 |
| FORM FACTOR | Enclosed with Fan |
| SIZE (METRIC/SAE) | 170x64x280 (6.7x2.5x11.02) |
| EFFICIENCY | 88%, typ. Efficiency |
| SAFETY APPROVALS | UL60950-1, EN60950-1 |
- 3000W Fan-cooled (Load & Temperature Controlled)
- Certified to EN/IEC/cUL62368-1
- Programmable output Voltage (0% ~ 105%)
- Programmable output Current (0% ~ 105%)
- Forced current sharing at parallel operation
- Constant current limit
- Selectable +5V / 0.5A or +9V / 0.3A auxiliary output
- Remote setting multiple PSU via RS232, RS485 & I²C
- Power OK signal
- Remote ON / OFF, Remote sense function
- Protection: OVP, OLP, OTP, Fan failure
- 3 Year Warranty
- RoHS Compliant
- Global control via RS232
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
