• X11SRM-VF 嵌入型單板電腦

X11SRM-VF 嵌入型單板電腦

Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors, Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP
Intel® C422
Up to 256GB ECC RDIMM, DDR4-2933MHz; Up to 512GB ECC LRDIMM, DDR4-2933MHz, in 4 DIMM slots
1 PCI-E 3.0 x16,
2 PCI-E 3.0 x8,
4 PCI-E 3.0 NVMe x4 Internal Port(s)
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280
M.2 Key: M-Key
Double Height Connector
Dual LAN with Intel® i210 Gigabit Ethernet Controller
Intel® VROC
型號 : X11SRM-VF

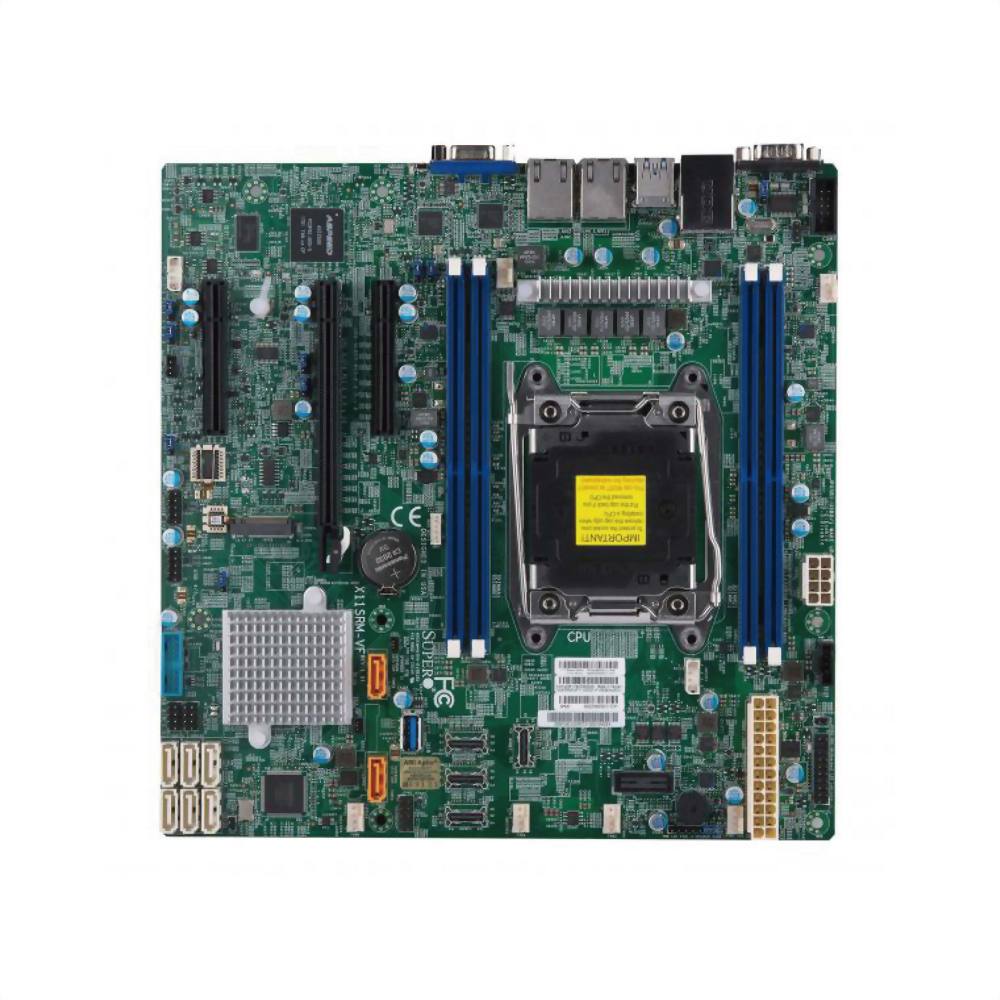

The Supermicro X11SRM-F/-VF supports an Intel® Xeon® W-2200/2100 ((Socket R4)) processor with up to 18 cores and a thermal design power (TDP) of up to 165W. Built with the Intel C422 chipset, the X11SRM-F/-VF supports 4-channel, 4-DIMM DDR4 ECC RDIMM/ LRDIMM memory with speeds of up to 2933MHz. This motherboard offers features such as SATA 3.0 ports, a M.2 slot, dual 1G Base-T ports, SuperDOM connectors, a Trusted Platform Module (TPM) header, and a built-in PCIe storage solution enhancement via Intel VROC. The X11SRM-F/-VF is the perfect solution for data centers, cloud, embedded, storage servers, and high performance computing (HPC). Please note that this motherboard is intended to be installed and serviced by professional technicians only. For processor/memory updates, please refer to our website at http://www.supermicro.com/products/.
