• MBD-X11SSZ-QF (vPro AMT Embedded IPMI)

MBD-X11SSZ-QF (vPro AMT Embedded IPMI)

Single socket H4 (LGA 1151) supports,Intel® 7th/6th Gen. Core i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®,Intel® Q170 Express chipset,Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots,1 PCI-E 3.0 x16,2 PCI-E 3.0 x4 (in x8 slot),Dual GbE LAN w/ Intel i219LM + i210AT
型號 : X11SSZ-QF

  • Single socket H4 (LGA 1151) supports
    Intel® 7th/6th Gen. Core i7/i5/i3 series,
    Intel® Celeron® and Intel® Pentium®
  • Intel® Q170 Express chipset
  • Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
  • 1 PCI-E 3.0 x16
    2 PCI-E 3.0 x4 (in x8 slot)
  • Dual GbE LAN w/ Intel i219LM + i210AT
  • 2 DP, 1 DVI-I, 3 independent displays via Intel HD Graphics, VGA port for BMC
  • 4 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
  • I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
  • IPMI, AMT vPro
  • Supports 12V DC power input

Parts List

Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SSZ-QF 1 X11SSZ-QF Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00093-0N 1 Standard I/O Shield for X11SSZ with EMI Gasket

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SSZ-QF 1 X11SSZ-QF Motherboard
QRG MNL-1744-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00093-0N 1 Standard I/O Shield for X11SSZ with EMI Gasket

Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00094-0N -- 1U I/O Shield for X11SSZ with EMI Gasket in CSE-512/813
TPM security module AOM-TPM-9655V
AOM-TPM-9655H
-- TPM Module with Infineon 9655, RoHS/REACH,PBF;
Vertical or Horizontal


相關產品

MBD-X11SSQ (vPro AMT Embedded Desktop)

MBD-X11SSQ (vPro AMT Embedded Desktop)

MBD-X11SSH-LN4F

MBD-X11SSH-LN4F

MBD-X11SPM-F (Embedded Ready VROC support)

MBD-X11SPM-F (Embedded Ready VROC support)

MBD-X11SCH-LN4F

MBD-X11SCH-LN4F

Micro ATX-Motherboard-Intel® Core™ i7/i5/i3 processor

Micro ATX-Motherboard-Intel® Core™ i7/i5/i3 processor

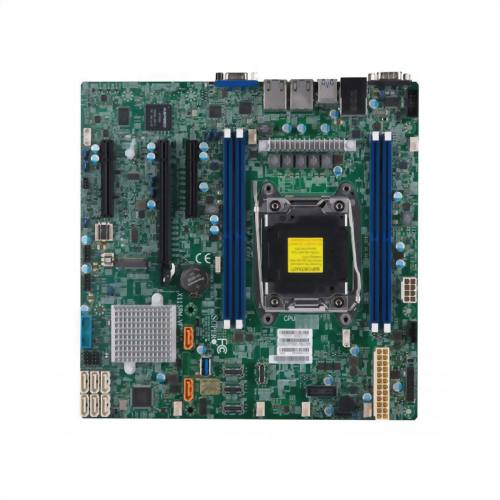

MBD-X10SRM-F (Embedded)
