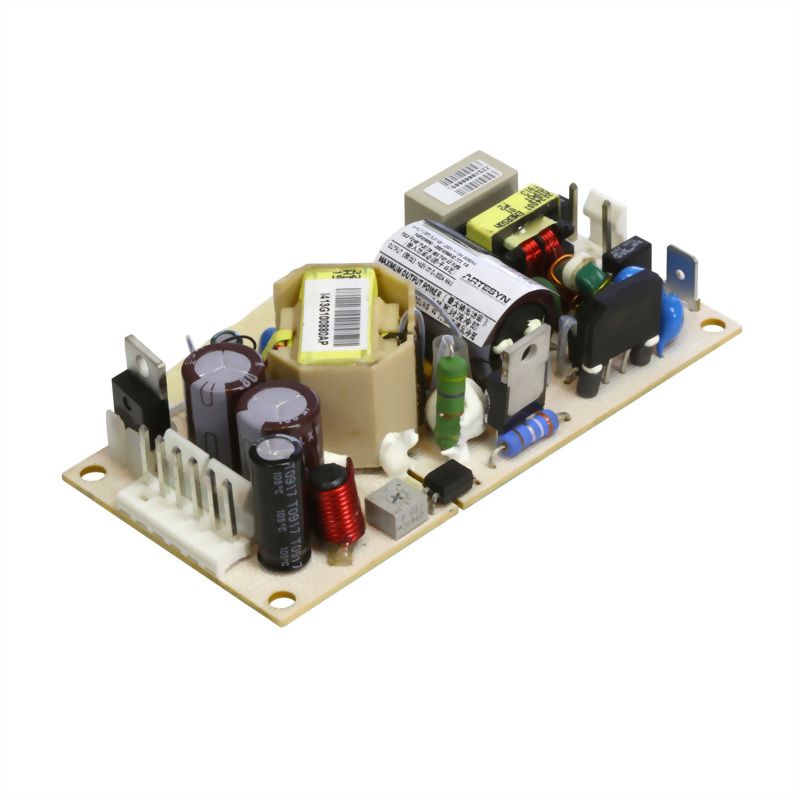

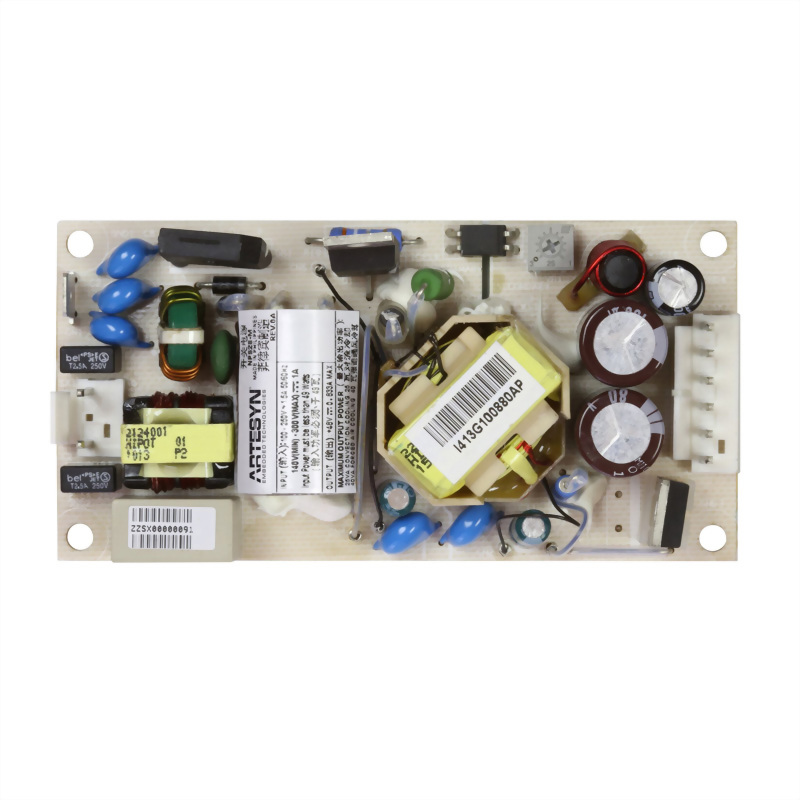

NPS20-M Serie低功率開放式電源

- ITE and medical safety approvals.
- The series comprises five single output models
- Offering voltages of 5 V, 12 V, 15 V, 24 V or 48 Vdc.
型號 : nps20-m serie

Each model has a typical full load efficiency of 87%. These power supplies are primarily intended for use in information technology equipment (ITE) and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications.

Total Max Power:

40 W

Output Voltage:

4.5 V to 57.6 V

Warranty:

2 years

Total Max Current:

8 A

Outputs:

Single

Operating Temperature:

-20° C to +80° C

Input Voltage:

90 V to 264 V

Size (L x W x H):

4.000" x 2.000" x 1.000"


  • Medical and ITE safeties
  • 2 x 4 x 1U form factor
  • Overload and short circuit protection
  • Built-in Class B EMI filter
  • Remote sense



  • EN61000-3-2 compliant
  • Adjustable main output
  • Less than 300 mW no-load power consumption
