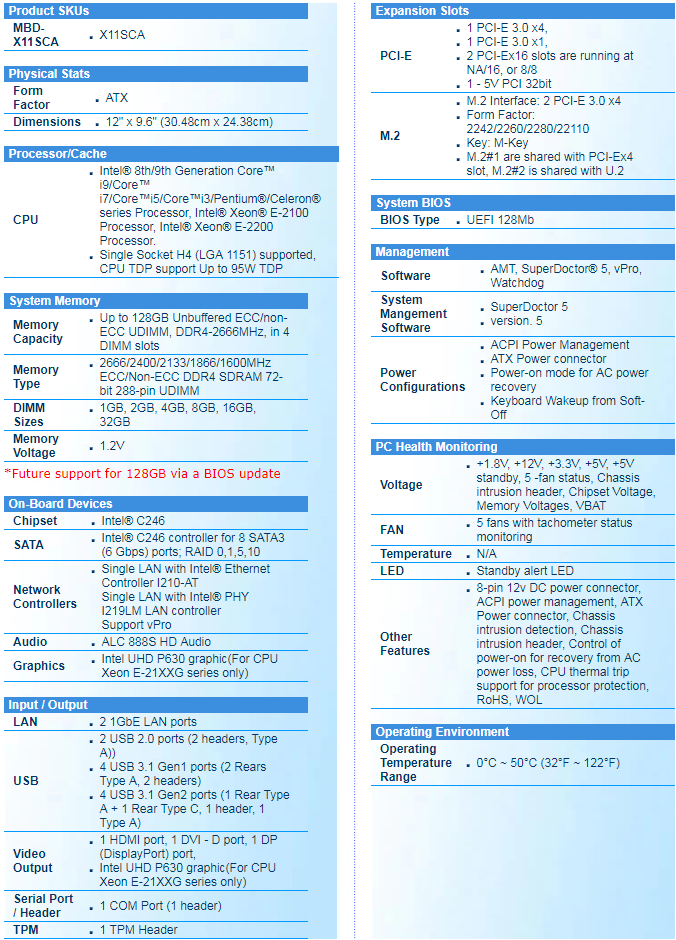

MBD-X11SCA 工作站主機板
1 - 5V PCI 32bit, M.2 Interface: 2 PCI-E 3.0 x4, M.2 Form Factor: 2242/2260/2280/22110, M.2 Key: M-Key, M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2, U.2 Interface: 1 PCI-E 3.0 x4, 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, Intel UHD P630 graphic(For CPU Xeon E-21XXG series only), Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10, Single LAN with Intel® Ethernet Controller I210-AT, Single LAN with Intel® PHY I219LM LAN controller, Support vPro
Specifications
- Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
- Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
- Intel® C246
- Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
- 1 PCI-E 3.0 x4,
- 1 PCI-E 3.0 x1,
- 2 PCI-Ex16 slots are running at NA/16, or 8/8
- 1 - 5V PCI 32bit
- M.2 Interface: 2 PCI-E 3.0 x4
- M.2 Form Factor: 2242/2260/2280/22110
- M.2 Key: M-Key
- M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
- U.2 Interface: 1 PCI-E 3.0 x4
- 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,
- Intel UHD P630 graphic(For CPU Xeon E-21XXG series only)
- Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Single LAN with Intel® Ethernet Controller I210-AT
- Single LAN with Intel® PHY I219LM LAN controller
- Support vPro
Parts List
Parts List (Bulk Package)
Name
Part Number
Qty
Description
Motherboard
MBD-X11SCA
1
X11SCA Motherboard
SATA cable
CBL-0044L
2
SATA 3 Cable
IO shield
MCP-260-00122-0N
1
X11SCA Series IO Shield
M.2 SSD Holder
MCP-450-00005-0B or MCP-450-00006-0B
2
M.2 SSD Holder
Parts List (Retail Package)
Name
Part Number
Qty
Description
Motherboard
MBD-X11SCA
1
X11SCA Motherboard
SATA cable
CBL-0044L
6
SATA 3 Cable
IO shield
MCP-260-00122-0N
1
X11SCA Series IO Shield
M.2 SSD Holder
MCP-450-00005-0B or MCP-450-00006-0B
2
M.2 SSD Holder
Quick Reference Guide
MNL-2087-QRG
1
X11SCA Series Quick Reference Guide
