AET 20W Series Series

The AET series of 20 watt isolated DC-DC converters is available with an ultra wide 9–36 Vdc or 18–75 Vdc input. Each of these versions offers a choice of five single output models, with voltages of 2.5 V, 3.3 V, 5 V, 12 V or 15 V, and three dual output models offering +5/-5 V, +12/-12 V or +15/-15 V.
型號 : aet 20w series

The converters are encapsulated in a 2 x 1.6 inch (50.8 x 40.6 mm) metal case and have a height of just 0.48 inch (12.2 mm). They are ideal for ruggedized applications involving harsh environments. Standard features include 1,500 Vdc input/output isolation, overvoltage protection and short-circuit protection with auto-restart.

AET series converters accommodate an operating temperature range of -40 to 71˚C without derating and are suitable for diverse applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. All models with an output voltage of 5V or higher have a 20 watt power rating.
  • Total Max Power:
    20 W
  • Total Max Current:
    6 A
  • Input Voltage:
    9 V to 75 V
  • Output Voltage:
    -15 V to 15 V
  • Outputs:
    Single, Dual
  • Size (L x W x H):
    2.000" x 1.600" x 0.480"
  • Operating Temperature:
    -40°C to +85°C
  • Encapsulated
  • 4:1 Input Range
  • 1.6" x 2" package
  • 1500 Vdc I/O Isolation
  • Single and Dual output
  • Remote on/off
  • Adjustable output
  • Conducted noise: meets EN55022 Class A, FCC level A

相關產品

AEE 40W High I/P Dual O/P Series

AEE 40W High I/P Dual O/P Series

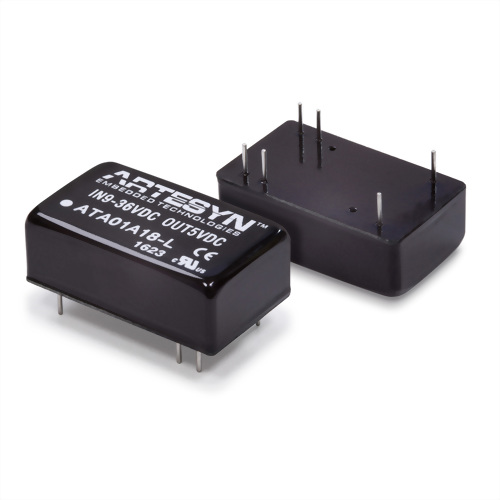

ATA Series 6 Watt Isolated DC-DC Converters Series

ATA Series 6 Watt Isolated DC-DC Converters Series

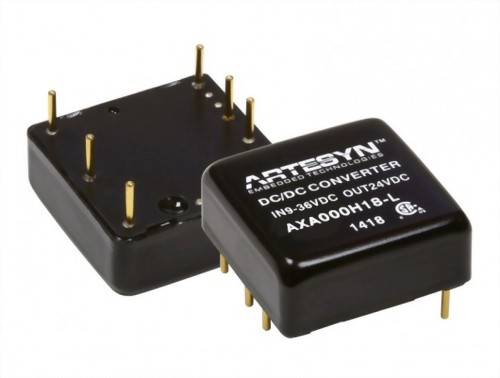

AXA 10W 9-75 Vin Series

AXA 10W 9-75 Vin Series

ATA 系列 10 Watt 工業用DC-DC

ATA 系列 10 Watt 工業用DC-DC

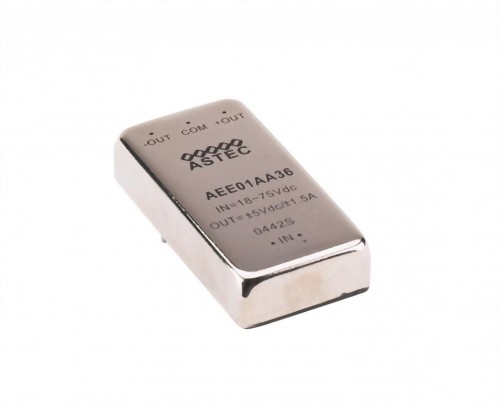

AEE 40W Low I/P Single O/P Series
