E Series
Regulated, High-Precision, DC-to-DC High Voltage Supplies
• Maximum Output Voltage/Power: 15 kV DC/30 W
• Type: Single output
• Ripple: < 10 ppm
• Control Interface: Analog
• Temperature Coefficient: To 10 ppm/⁰C
• Maximum Output Voltage/Power: 15 kV DC/30 W
• Type: Single output
• Ripple: < 10 ppm
• Control Interface: Analog
• Temperature Coefficient: To 10 ppm/⁰C

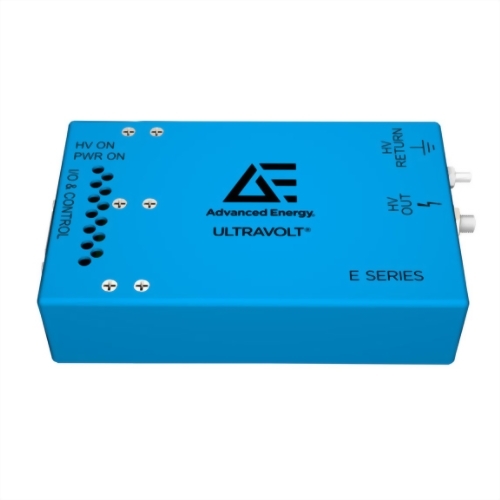

Our UltraVolt E series includes six models
ranging from 1000 to 15,000 VDC maximum high voltage power and are available in
single-output positive or negative polarities. From a 24 VDC input, the E
series delivers up to 30 W of low noise, highly controllable and stable power.
Controlled using a differential analog interface, a selection of electrical and
mechanical integration options can be factory-configured to meet specific
application needs.

- Better measure repeatability, resolution, and longer-term tool reliability
- Obtain more consistent high voltage performance in varying ambient temperatures and line loading conditions
- Enhance high voltage output performance by minimizing control signal noise and drift
- Simplify integration with more responsive control of high voltage module performance
- Speed up both electrical and mechanical integration tasks
- Output ripple performance < 10 ppm (0.01 Vpp)
- Available temperature coefficient to 10 ppm/⁰C with line regulation less than 25 ppm
- High voltage output controlled using differential analog inputs
- Full-featured 0-to-10 VDC control and interface that includes voltage/current controls and monitors
- Selection of electrical performance and mechanical integration options
