GB10 低功率開放式電源

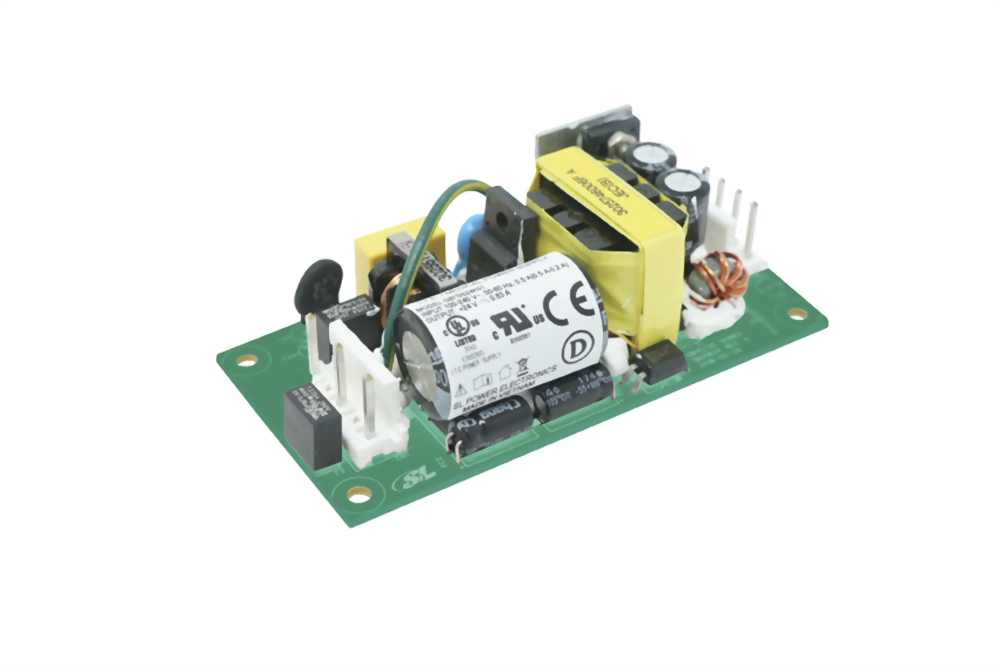

• 10W open frame and PCB-mount power supply
• PCB-mount: 1.02 x 2.05 x 0.98” (27 x 52 x 25mm)
• Chassis mount: 1.6” x 3.38” x 1.0” (40.6 x 85.8 x 25.4mm)
• Universal input 90 - 264 VAC
• <0.1W no load input power
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Approved to CSA/EN/IEC/UL60601-1, 3rd edition
• E-cap life of >10 years
• >1,000,000 hours MTBF
• Meets class B radiated & conducted EMI, with margin
• Meets heavy industrial and IEC60601-1-2 4th edition levels of EMC
• PCB-mount: 1.02 x 2.05 x 0.98” (27 x 52 x 25mm)
• Chassis mount: 1.6” x 3.38” x 1.0” (40.6 x 85.8 x 25.4mm)
• Universal input 90 - 264 VAC
• <0.1W no load input power
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Approved to CSA/EN/IEC/UL60601-1, 3rd edition
• E-cap life of >10 years
• >1,000,000 hours MTBF
• Meets class B radiated & conducted EMI, with margin
• Meets heavy industrial and IEC60601-1-2 4th edition levels of EMC
型號 :
GB10
| MAX WATTS | 12.00W |
| OUTPUT RANGE (VDC) | 5-24 |
| FORM FACTOR | Board-Only |
| SIZE (METRIC/SAE) | 27 x 52 x 25 (1.02 x 2.05 x 0.98) |
| EFFICIENCY | >88%, typ. Efficiency |
| SAFETY APPROVALS | CSA/EN/IEC/UL62368-1 | CSA/EN/IEC/UL60601-1, 3rd Edition |
- 10W open frame and PCB-mount power supply
- PCB-mount: 1.02 x 2.05 x 0.98” (27 x 52 x 25mm)
- Chassis mount: 1.6” x 3.38” x 1.0” (40.6 x 85.8 x 25.4mm)
- Universal input 90 - 264 VAC
- <0.1W no load input power
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
- Approved to CSA/EN/IEC/UL60601-1, 3rd edition
- E-cap life of >10 years
- >1,000,000 hours MTBF
- Meets class B radiated & conducted EMI, with margin
- Meets heavy industrial and IEC60601-1-2 4th edition levels of EMC
