UltiMod Series 可配置電源

High Efficiency, High Reliability, Modular-Configurable Power Supplies

• 600 W and 1200 W solutions
• Dual safety approvals: IEC60601-1 (third edition) and IEC60950
• Up to 12 isolated DC output voltages
• Five-year warranty
• User- and field-configurable
• 92% efficiency
• Five-year warranty
• SEMI F47 compliant
• Up to 12 isolated DC outputs
• Low acoustic noise for noise-sensitive applications

The industry-proven Excelsys UltiMod power-supply platform combines technical performance with user flexibility. Built for various demanding industries, the series delivers up to 1200 W of output power in a compact 1U form factor and up to 12 isolated output voltages.

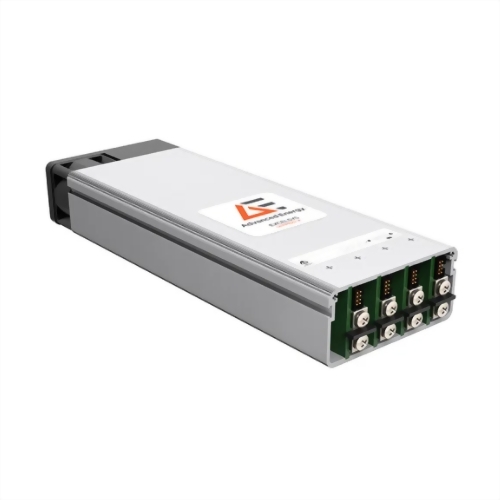

The UltiMod series is available in two package sizes. The UX4 delivers up to 600 W and can be populated with a maximum of four powerMods. The UX6 delivers up to 1200 W and can be populated with up to six powerMods. Outputs can be parallel connected for higher current and series connected for higher voltages (up to 348 VDC).



  • High Power Density: Up to 1200 W output power in a compact 1U form factor
  • Full Safety Agency Approvals: UL/EN60950 (second edition) and UL/EN60601-1 (third edition) compliant
  • User- and Field-Configurable: Suite of output signals and user-configurable functions increase design-in flexibility
  • High Reliability and Efficiency: 92% efficiency guarantees increased system reliability
