SYS-751A-I Specifications
|
Product SKUs
|
|
|
SuperWorkstation SYS-751A-I
|
|
Processor
|
|
CPU
|
Dual Socket E (LGA-4677) 第五代 Intel® Xeon®/第四代 Intel® Xeon® 可擴展處理器
|
|
Core Count
|
Up to 64C/128T; Up to 320MB Cache per CPU
|
|
System Memory
|
|
Memory
|
Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
|
|
Memory Voltage
|
1.1V
|
|
Input / Output
|
|
LAN
|
2 RJ45 10 GbE LAN ports (IPMI shared on LAN port 1)
|
|
USB
|
2 USB 2.0 Type-A ports(front) 2 USB 3.2 Gen1 Type-A ports(front) 1 USB 3.2 Gen2 Type-C port(Front) 1 USB 3.2 Gen2 Type-A port(Header) 4 USB 3.2 Gen1 Type-A ports(Rear)
|
|

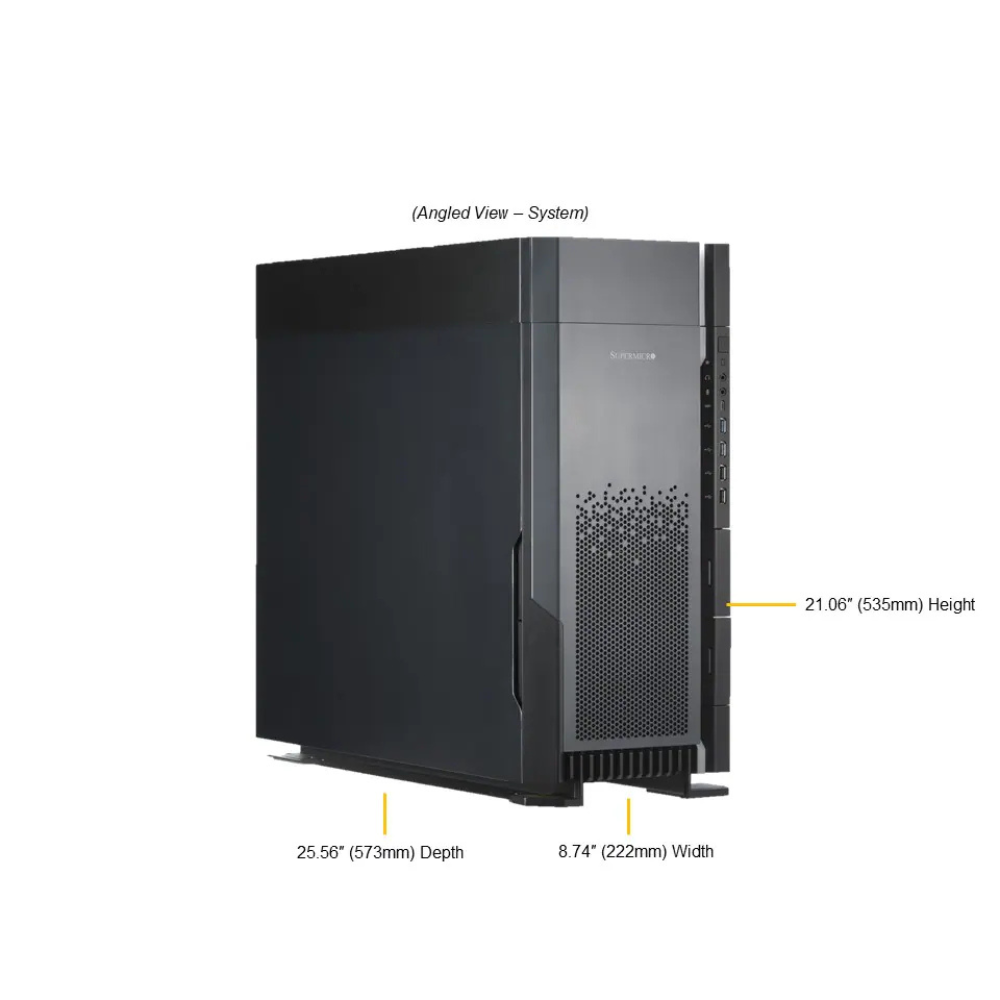

Dimensions and Weight
|
|
Height
|
21.1" (536 mm)
|
|
Width
|
8.7" (221 mm)
|
|

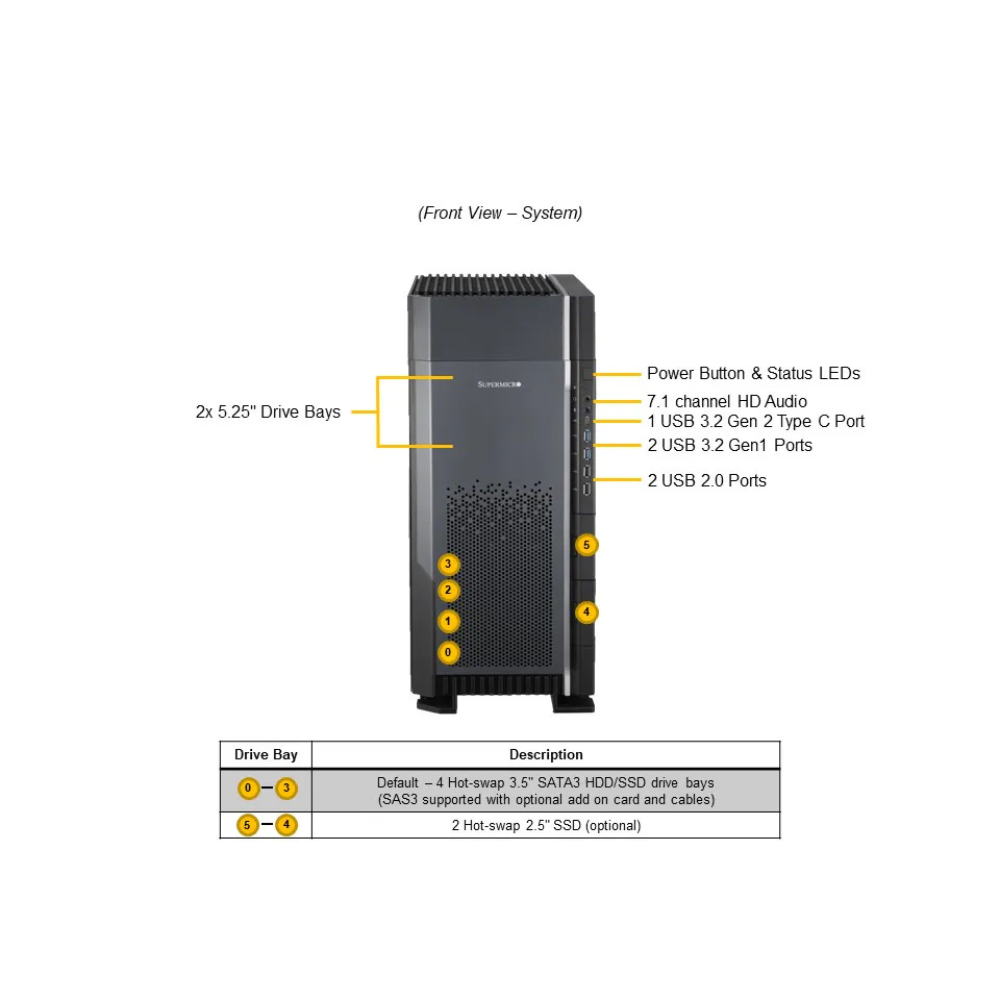

Drive Bays / Storage
|
|
Drive Bays Configuration
|
Default: Total 4 bays4 front fixed 3.5" NVMe/SAS*/SATA drive bays Option A: Total 6 bays4 internal fixed 3.5" NVMe/SATA drive bays 2 front fixed 2.5" SATA drive bays (*SAS support…
|
|
M.2
|
2 M.2 NVMe slots (M-key 2280/22110)
|
|
|
|
GPU
|
|
Max GPU Count
|
Up to 2 double-width GPUs
|
|
CPU-GPU Interconnect
|
PCIe 5.0 x16 CPU-to-GPU Interconnect
|
|
On-Board Devices
|
|
SATA
|
SATA (6Gbps) ; RAID 0/1/5/10 support
|
|
Chipset
|
Intel® C741
|
|
Chassis
|
|
Form Factor
|
Tower or 5U Rackmount
|
|
Model
|
CSE-GS7A-000NBP3
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
Default5 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x8 FHHL slot
|
|
System Cooling
|
|
Fans
|
Up to 3x 12cm Fan(s)
|
|
詳細規格、選配項目與相容性請以 Supermicro 原廠最新資料及亞郁實際報價規格為準。
-
5th/4th Gen Intel® Xeon® Scalable processor support
-
Intel® C741 Chipset
TPM 2.0 built-in already
-
5 PCIe 5.0 x16, 1 PCIe 5.0 x8, 2 NVMe M.2 slots
-
4x internal 3.5" SATA rotating drive bays for easy access
2x 5.25" peripheral drive bays
up to 4x NVMe SSD support with opitonal cables and converter trays
2x 2.5" Front access SATA drive bays
-
New front bezel with keylock for added security
-
Supports up to two double width active GPUs
1 VGA, 6 USB 3.2 Gen1 (4 Rear, 2 Front), 2 USB 3.2 Gen2 (1 ineternal, 1 Front type C), 2 USB 2.0, 7.1 HD Audio
-
Rendering
-
Multimedia/Digital Content creation
-
CAD
-
Engineering/scientific research
