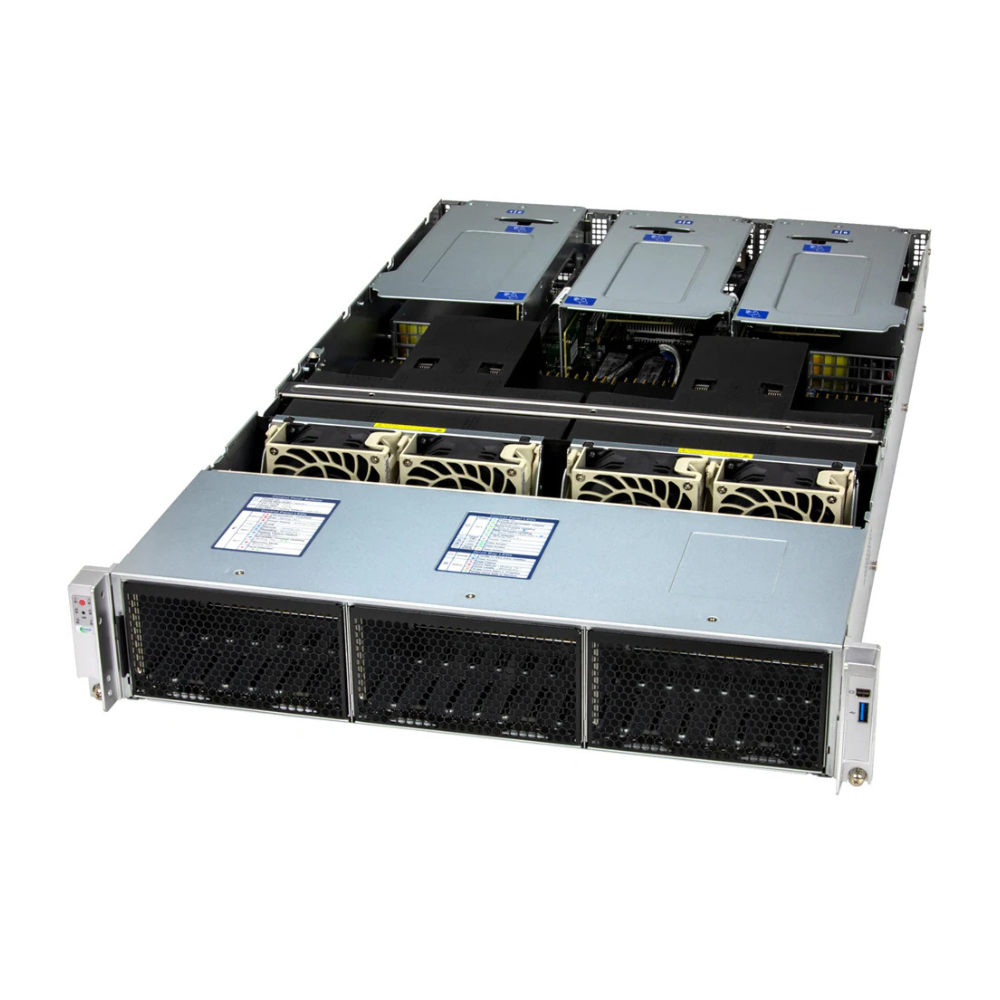

SYS-222C-TN

2U CloudDC with DC-MHS, 24 hot-swap 2.5” NVMe/SATA/SAS bays, 6 PCIe 5.0 x16/x8 slots and 2 PCIe 5.0 x16 AIOM slots

型號 : SYS-222C-TN

數量 :

Product SKUs
SYS-222C-TN
Motherboard
Super X14DBHM
Processor
CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 2 double-width or 4 single-width GPUs
Supported GPU	NVIDIA PCIe: H200 NVL (141GB), L4, L40S, NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, RTX 2000 Ada, RTX 4000 Ada Generation View GPU Options
Certification
System Memory

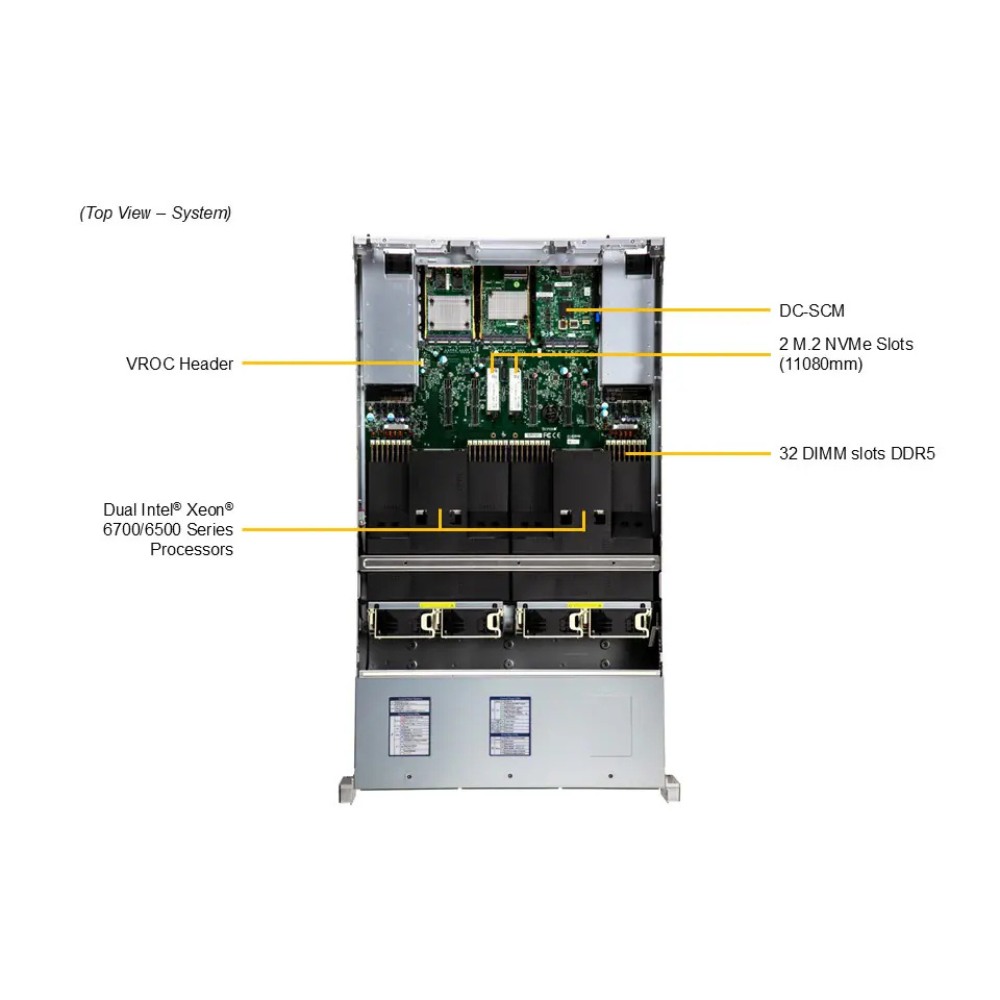

Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V
On-Board Devices
NVMe	NVMe; RAID 0/1/5/10 support(VROC HW key required) View NVMe Options
Network Connectivity	Via AIOM View AIOM Options View AOC Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	1 USB 2.0 Type-A port(Rear) 1 USB 3.2 Gen1 Type-A port(Rear)
Video	1 VGA port(Rear)
TPM	1 TPM header
System BIOS
BIOS Type	AMI 64MB SPI Flash ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

Chassis
Form Factor	2U Rackmount
Model	CSE-DC201TS-R000NP
Dimensions and Weight
Height	3.47" (88 mm)
Width	17.25" (438 mm)
Depth	30.7" (780 mm)
Package	9.4" (H) x 23.5" (W) x 43.2" (D)
Weight	Gross Weight: 83.78 lbs (38 kg) Net Weight: 61.73 lbs (28 kg)
Available Color	Silver

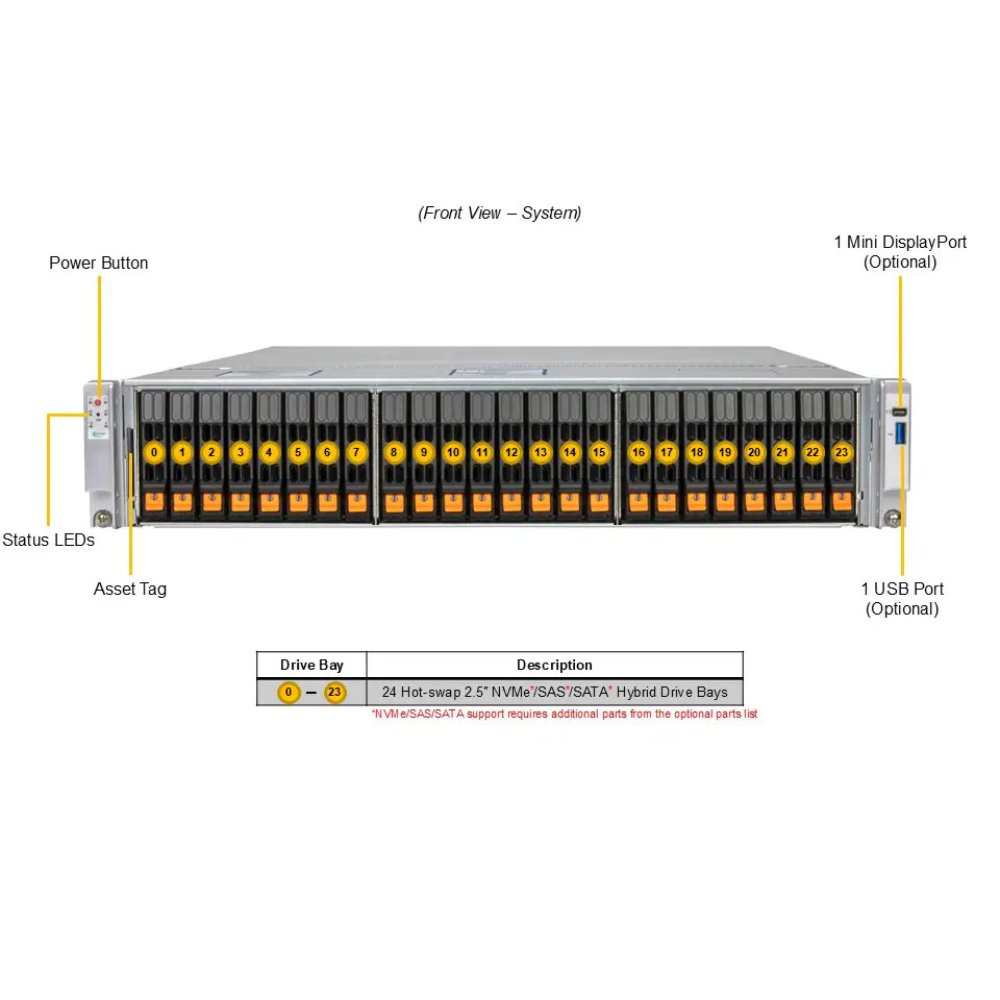

Front Panel
Buttons	Power On/Off UID button
LED	HDD activity LAN1 activity LAN2 acticity Power Fail Power status System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration	Default 4 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x8 (in x16) FHFL slot 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) Option A 2 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x8 (in x16) FHFL slot 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) Option B 6 PCIe 5.0 x16 (in x16) FHFL slots 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) View AOC Options
Drive Bays / Storage

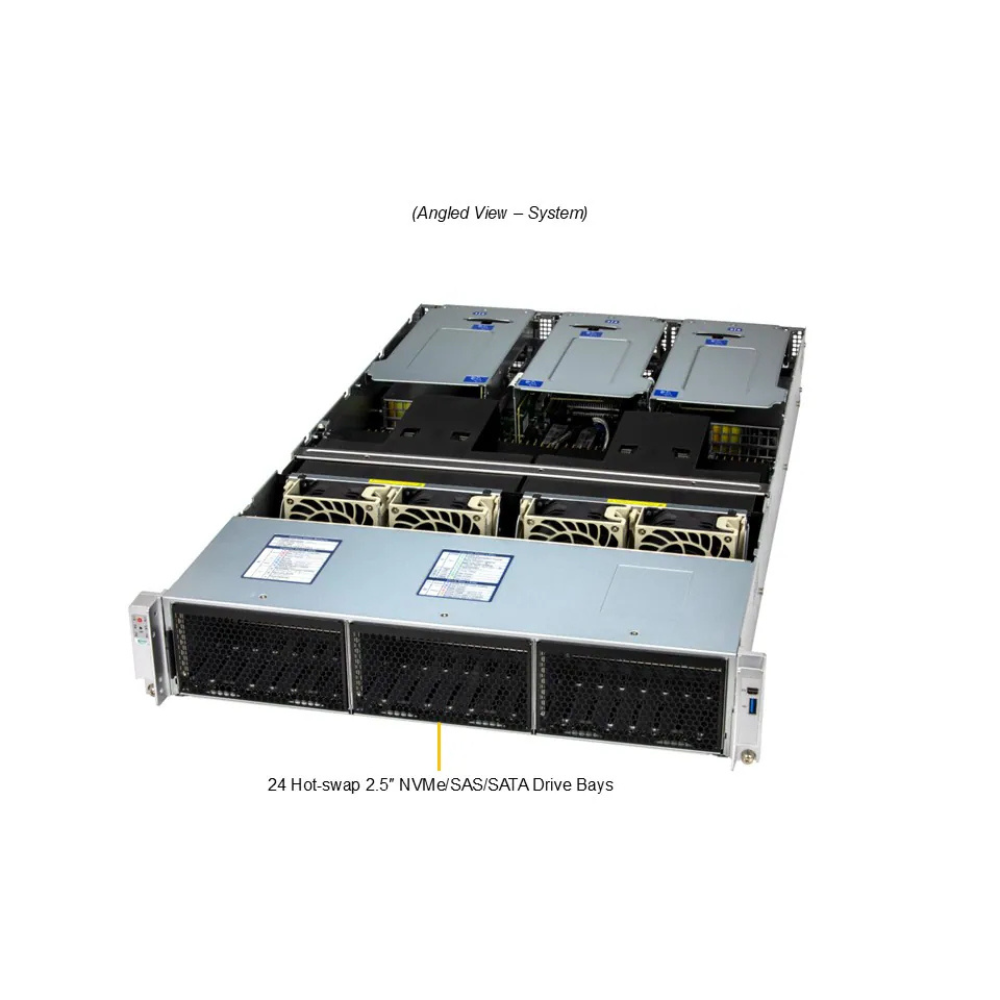

Drive Bays Configuration	Default: Total 24 bays 24 front hot-swap 2.5" NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options
M.2	2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID) View M.2 Options
System Cooling

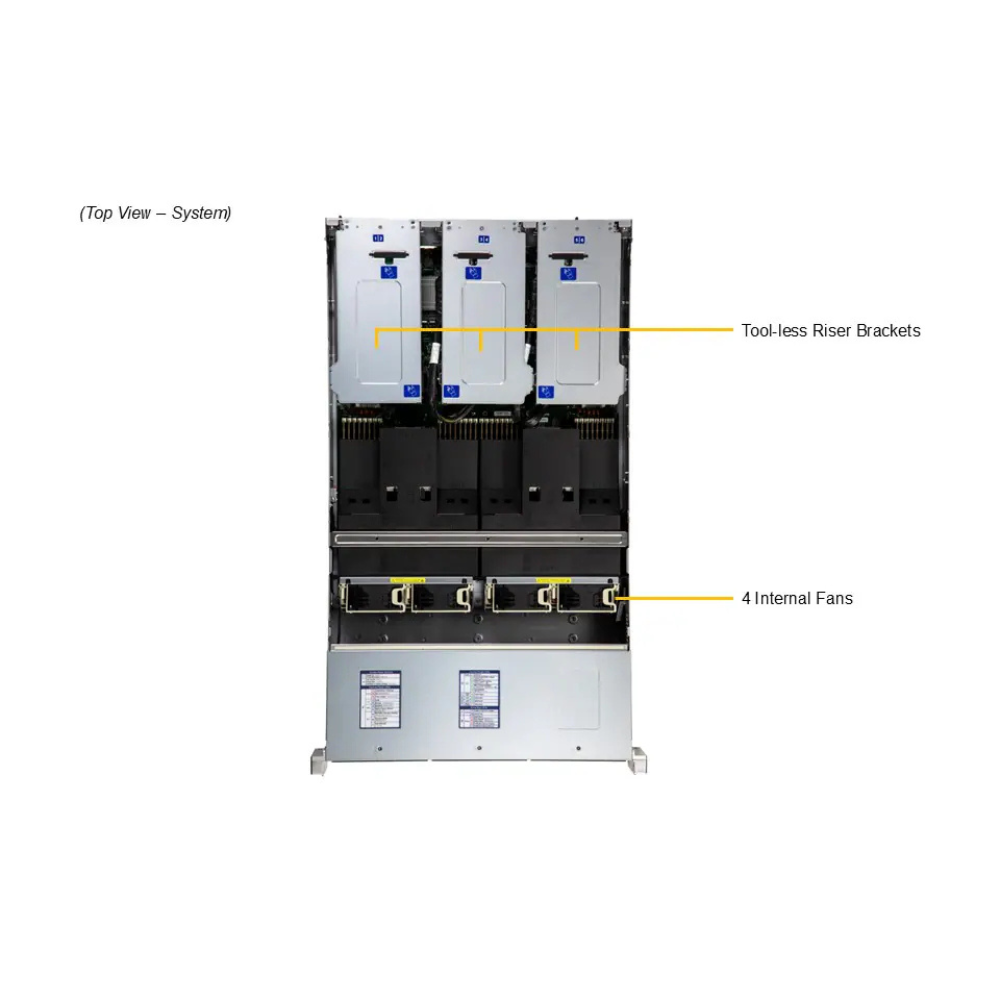

Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud
Power Supply
	2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A
Output Type	Backplanes (gold finger)
	2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)	106.5 x 82.4 x 203.3 mm
Input	1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB) 2090W: 180-220Vac / 50-60Hz (For UL/cUL Only) 2090W: 230-240Vdc / 50-60Hz (for CQC only) 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
+12V	Max: A / Min: 0A Max: 100A / Min: 0A (100Vac-127Vac) Max: 165A / Min: 0A (200Vac-220Vac) Max: 166.6A / Min: 0A (220Vac-230Vac) Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for TUV/CB) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (For CQC only) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
12V SB	Max: 2A / Min: 0A
Output Type	Backplanes (gold finger)
	2x 3200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only)
+12V	Max: 82A / Min: 0A (100Vac-127Vac) Max: 237.7A / Min: 0A (200Vac-207Vac) Max: 245.9A / Min: 0A (207Vac-220Vac) Max: 262.3A / Min: 0A (220Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
	2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	1200W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz 1600W: 0240Vdc / 50-60Hz (for CQC only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-30°F to 140°F) Operating Relative Humidity: 8% to 80% (Non-Condensing) Non-operating Relative Humidity: 8% to 90% (Non-Condensing)
Environmental / Recycling
Recycle	Return Server-End of Life Product

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability
Optimized power & balanced performance for cloud applications
Server management flexibility with OpenBMC
