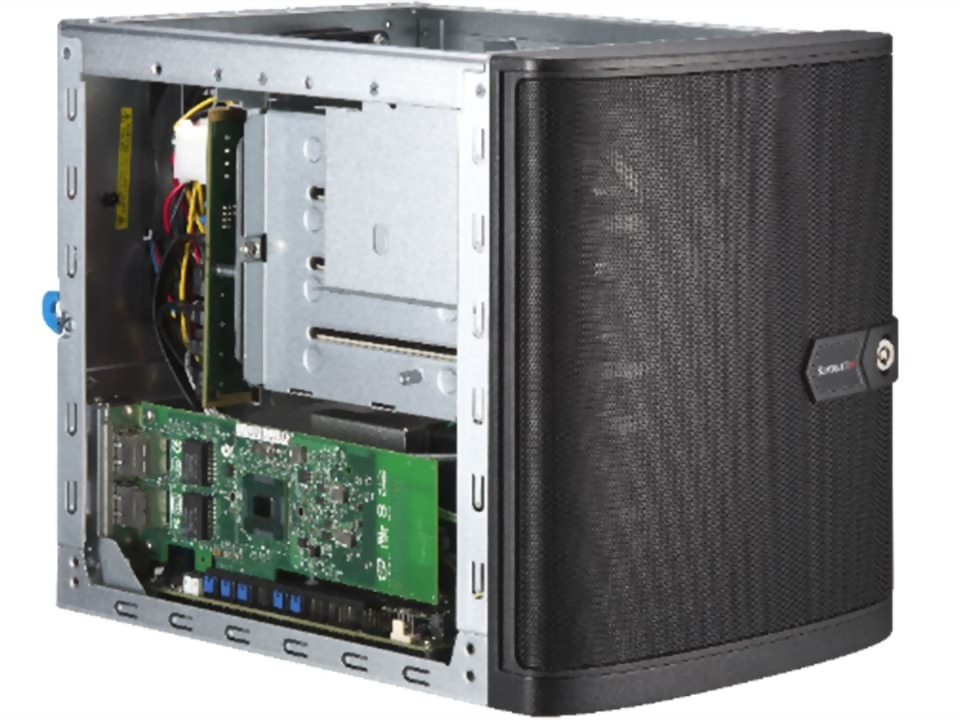

SYS-521R-T

UP compact mini tower with 4 hot-swap 3.5" SATA drive bays and PCIe 5.0
型號 : SYS-521R-T
Product SKUs
SuperWorkstation SYS-521R-T
Motherboard
Super X13SCL-IF
Processor
CPU
  • Single processor(s)
  • Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T
Note
  • Supports up to 80W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 2 DIMM slots
  • Max Memory (1DPC): Up to 64GB 4800MT/s ECC DDR5 UDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 2 RJ45 1GbE with Intel® I210
  • View AOC Options

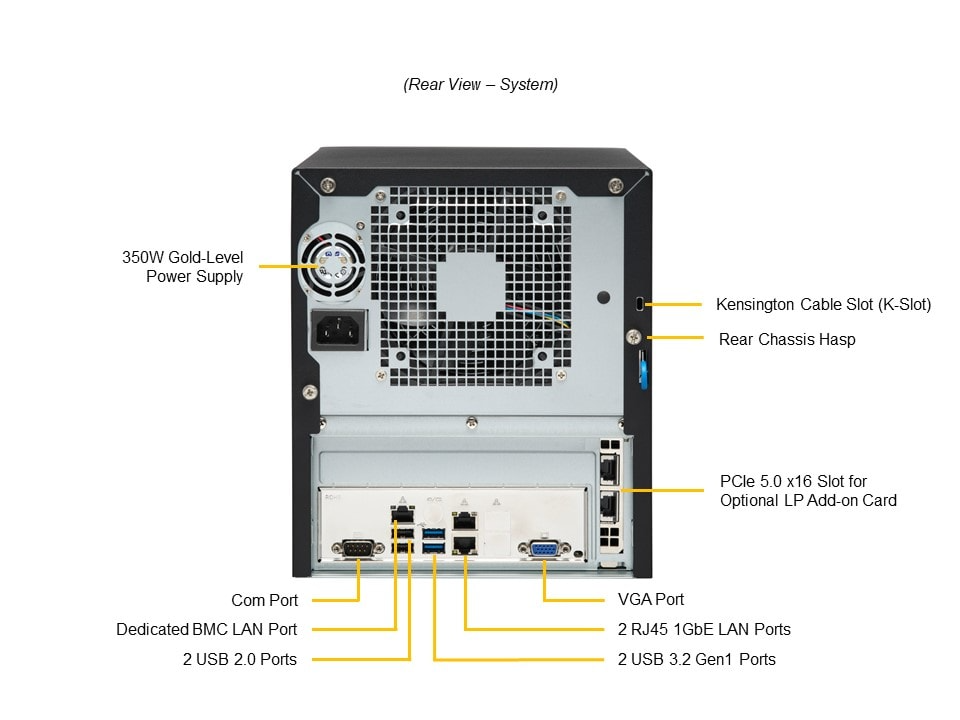

Input / Output
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 Type-A ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
Chassis
Form Factor
  • Compact Mini-Tower
Model
Dimensions and Weight

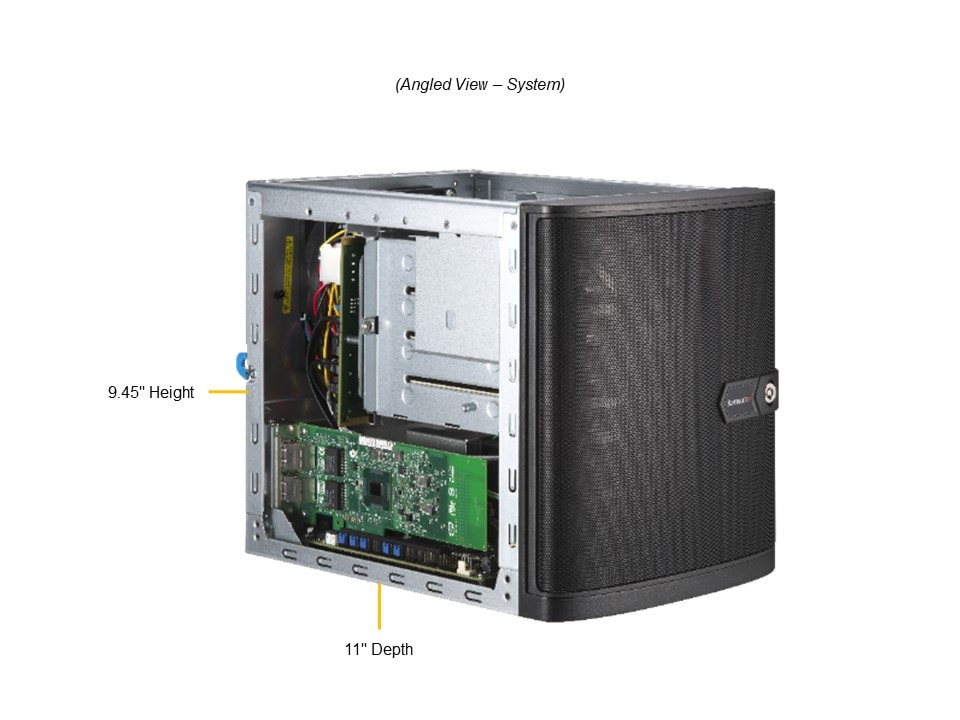

Height
  • 9.45" (240.03 mm)
Width
  • 8.27" (210.06 mm)
Depth
  • 11" (279.4 mm)
Package
  • 13.78" (H) x 12.4" (W) x 16.14" (D)
Weight
  • Gross Weight: 15 lbs (6.8 kg)
  • Net Weight: 13.5 lbs (6.12 kg)
Available Color
  • Black

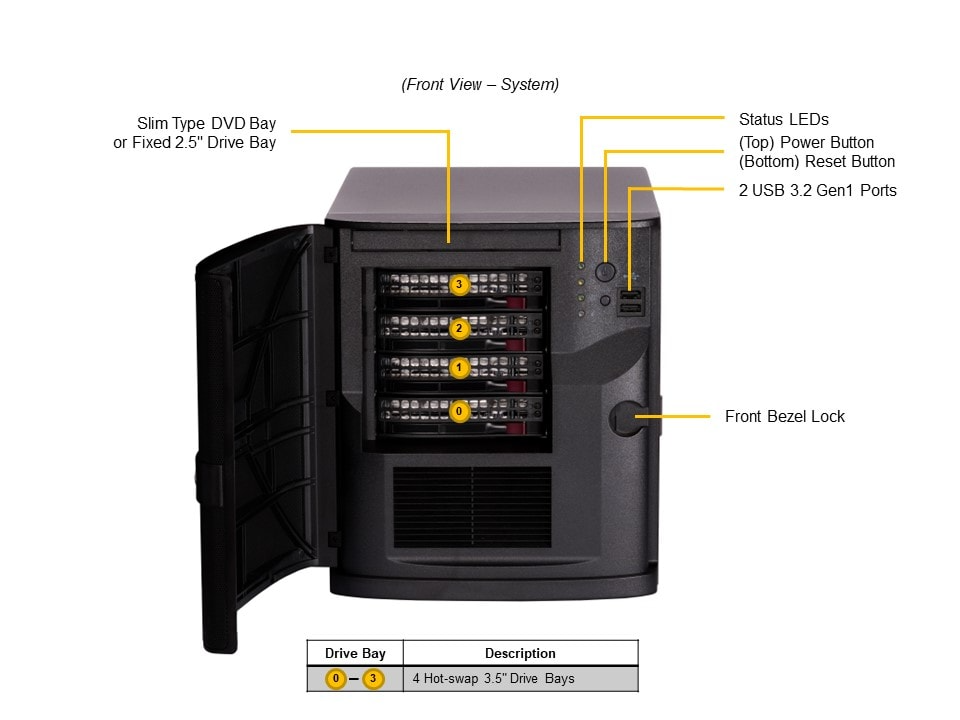

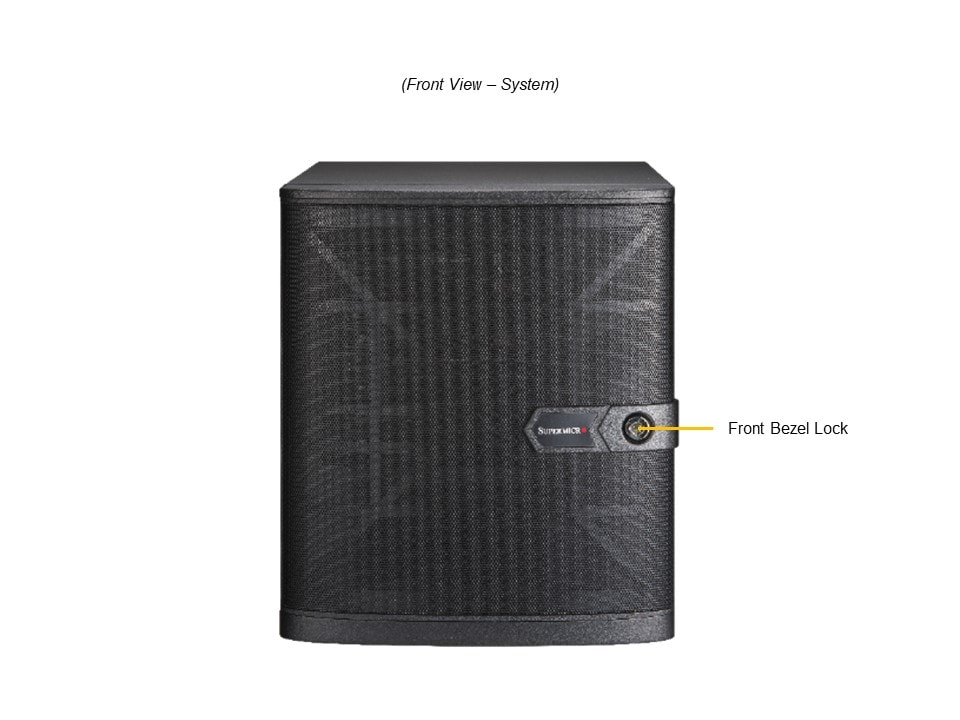

Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • System Reset button
Port
  • USB 3.0 Port(s)
Expansion Slots
PCI-Express (PCIe) Configuration

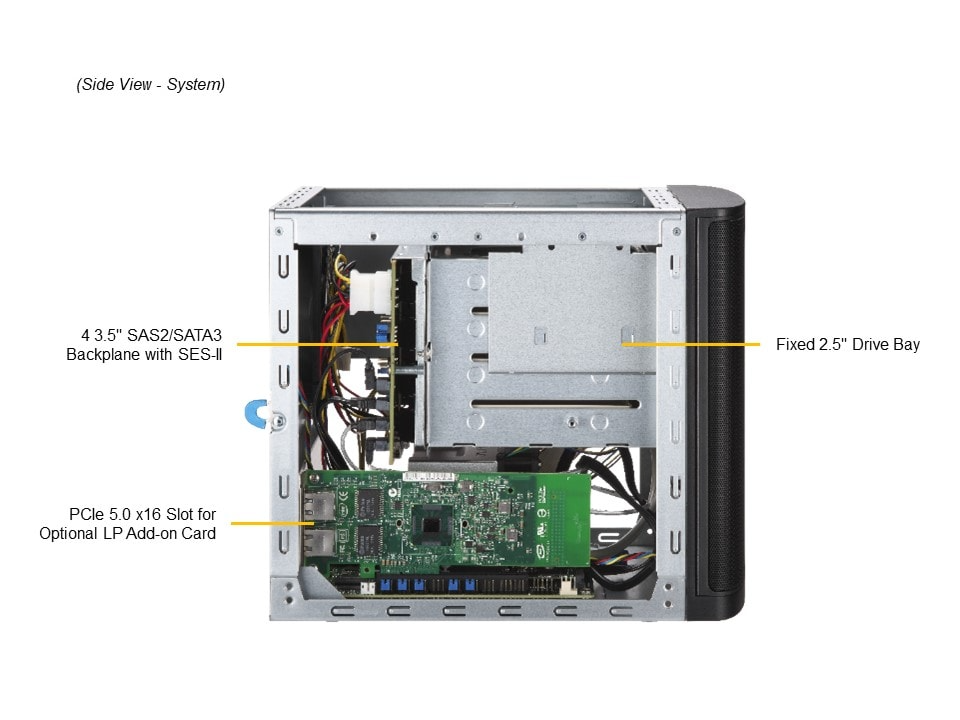

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5" PCIe 4.0 x4 NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
M.2
Peripheral Bays
  • 1 bay
System Cooling
Fans
  • Up to 1x 120mm Fan(s)
Power Supply
1x 350W Gold Level (92%) power supply
Dimension (WxHxL) 81.5 x 40.5 x 150 mm
Input 350W: 100-240Vac / 50-60Hz
+12V Max: 28A / Min: 0.1A (100Vac-240Vac)
5V SB Max: 2A / Min: 0.05A
Output Type 24pin ATX
Certification   Gold Level
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

  • PCIe 5.0 x 16 slot
  • Dual LAN ports, 1 GbE and dedicated IPMI
  • 12cm PWM quiet exhaust fan and optional 12cm front intake fan
  • 350W 80PLUS Gold Power Supply
  • Up to 2 U.2 NVMe drives support (2024H2 version only)
