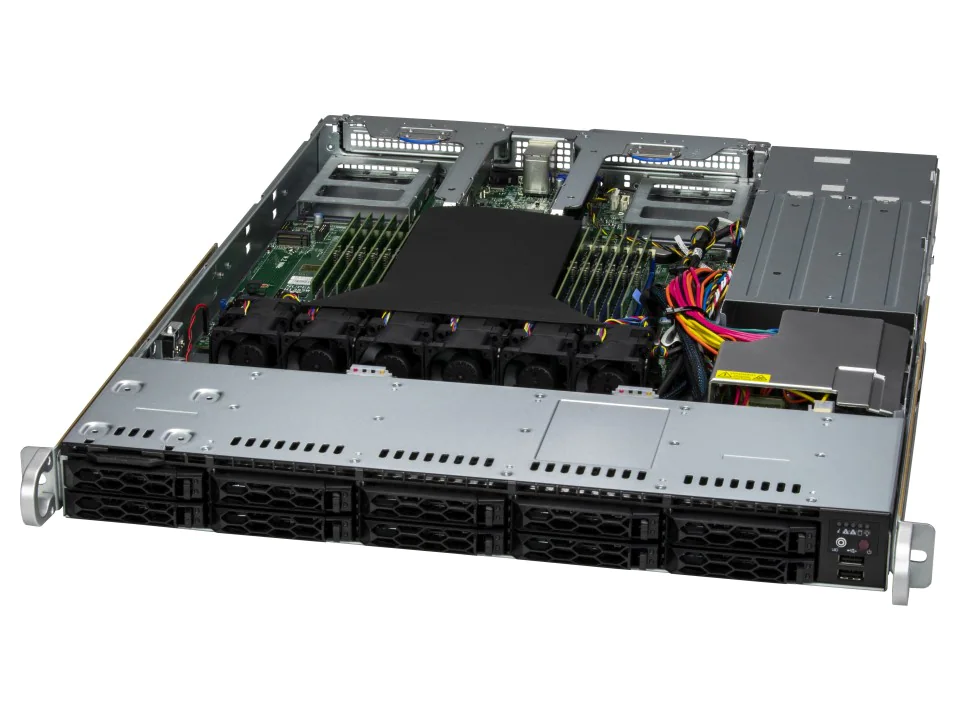

AS-1115CS-TNR Specifications
|
Product SKUs
|
|
|
AS-1115CS-TNR Standard version with PWS-860P-1R2 (Platinum Level)
|
|
|
AS-1115CS-TNR-EU European version with PWS-861A-1R (Titanium Level)
|
|
|
AS-1115CS-TNR-01-G2 Gold Series version with pre-configured components
|
|
Processor
|
|
CPU
|
-
Single processor(s)
-
AMD EPYC™ 9004/9005 Series Processors
-
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
|
|
Core Count
|
Up to 160C/320T
|
|
Note
|
Supports up to 400W TDP CPUs *
*Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.
|
|
GPU
|
|
Max GPU Count
|
Up to 2 single-width GPUs
|
|
Supported GPU
|
NVIDIA PCIe: A2, L4
|
|
CPU-GPU Interconnect
|
PCIe 5.0 x16 CPU-to-GPU Interconnect
|
|
GPU-GPU Interconnect
|
PCIe
|
|
System Memory
|
|
Memory
|
-
Slot Count: 12 DIMM slots
-
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
-
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
-
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
|
|
Memory Voltage
|
1.1V
|
|
On-Board Devices
|
|
Chipset
|
AMD System on Chip
|
|
Network Connectivity
|
Via AIOM
|
|
Input / Output
|
|
LAN
|
1 RJ45 1 GbE Dedicated BMC LAN port
|
|
USB
|
-
2 USB 3.0 ports (rear)
-
2 USB 2.0 ports (front)
|
|
Video
|
1 VGA port
|
|
Serial
|
1 COM port (rear)
|
|
TPM
|
1 TPM header
|
|
System BIOS
|
|
BIOS Type
|
AMI 32MB SPI Flash ROM
|
|
BIOS Features
|
-
ACPI 6.4
-
Plug and Play (PnP)
-
SMBIOS 3.5 or later
-
UEFI 2.8
-
USB Keyboard support
|
|
Management
|
|
Software
|
-
SuperCloud Composer®
-
Supermicro Server Manager (SSM)
-
Supermicro Update Manager (SUM)
-
Supermicro SuperDoctor® 5 (SD5)
-
Super Diagnostics Offline (SDO)
-
Supermicro Thin-Agent Service (TAS)
-
OOB Management Package (SFT-OOB-LIC)
-
SuperServer Automation Assistant (SAA)
|
|
Power configurations
|
-
ACPI Power Management
-
Power-on mode control for AC power loss recovery
-
Power button override mechanism
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
-
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
|
Features
|
-
Cryptographically Signed Firmware
-
Secure Boot
-
Secure Firmware Updates
-
Automatic Firmware Recovery
-
Supply Chain Security: Remote Attestation
-
Runtime BMC Protections
-
System Lockdown
|
|
PC Health Monitoring
|
|
FAN
|
-
Fans with tachometer monitoring
-
Pulse Width Modulated (PWM) fan connectors
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for fan connectors
|
|
Voltage
|
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
|
|
|
|
Chassis
|
|
Form Factor
|
1U Rackmount
|
|
Model
|
CSE-LB16TS-R860AWP-A
|
|
Dimensions and Weight
|
|
Height
|
1.7" (43 mm)
|
|
Width
|
17.2" (437 mm)
|
|
Depth
|

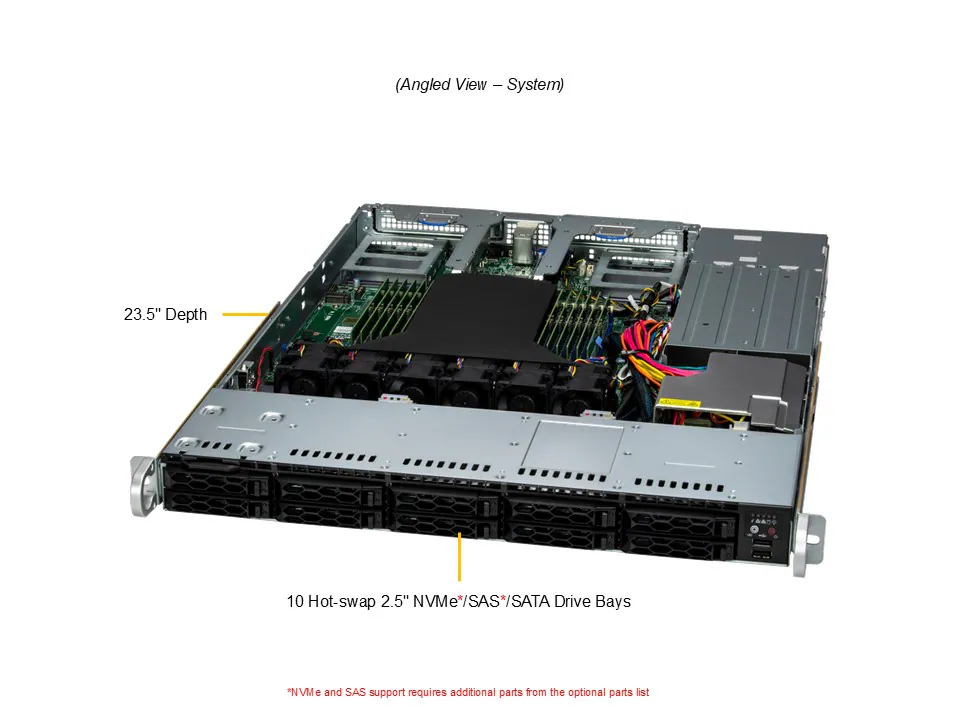

23.5" (597 mm)
|
|
Package
|
7.8" (H) x 23.8" (W) x 32.4" (D)
|
|
Weight
|
-
Gross Weight: 46 lbs (20.9 kg)
-
Net Weight: 25 lbs (11.3 kg)
|
|
Available Color
|
Black front & silver body
|
|
Front Panel
|
|
Buttons
|
-
Power On/Off
-
Universal Information (UID)
|
|
LED
|
-
Drive activity
-
Network activity
-
Power status
-
Universal Information (UID)
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
-
Default:
-

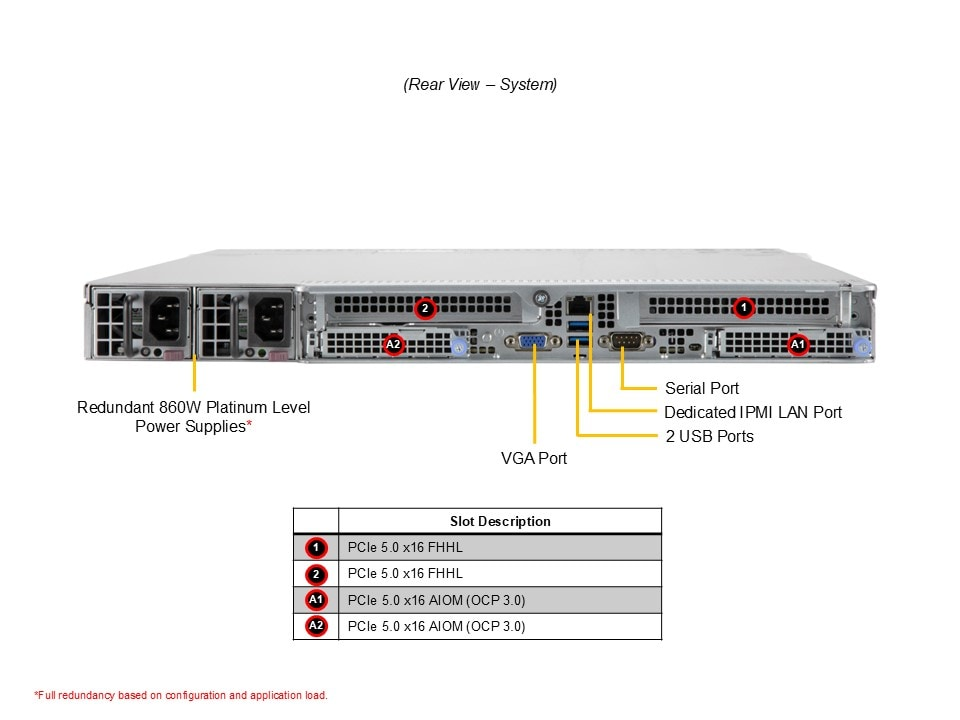

2 PCIe 5.0 x16 FHHL slots
-
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
|
|
Drive Bays / Storage
|
|
Drive Bays Configuration
|
-

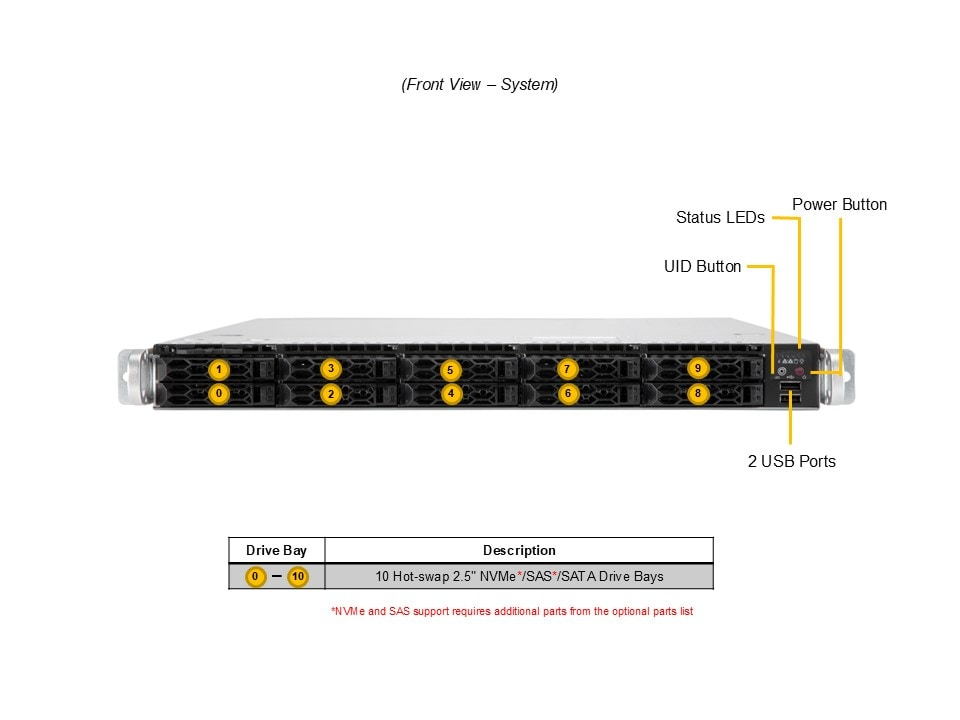

Default: Total 10 bays
-
10 front hot-swap 2.5" SATA drive bays
-
Option A: Total 10 bays
-
10 front hot-swap 2.5" PCIe 5.0 NVMe* drive bays
-
Option B: Total 10 bays
-
10 front hot-swap 2.5" SAS* drive bays
-
(*NVMe/SAS support may require additional storage controller and/or cables)
|
|
M.2
|

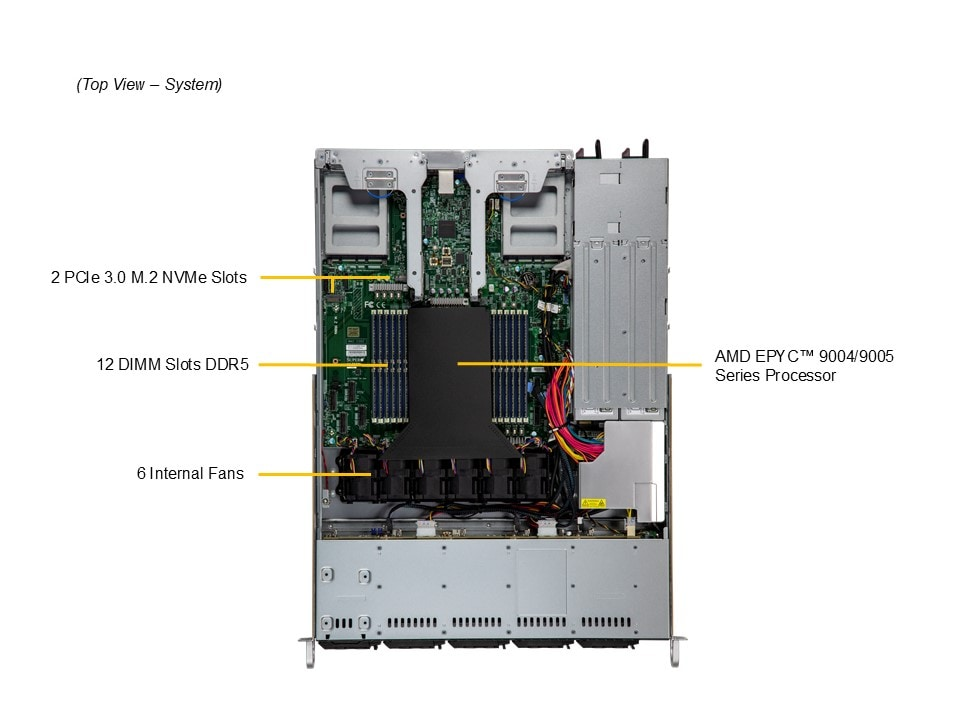

2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
|
|
System Cooling
|
|
Fans
|
Up to 6x 4cm heavy duty fans with optimal fan speed control
|
|
Air Shroud
|
1 Air Shroud
|
|
Power Supply
|
|
|
2x 860W Redundant (1+1) Platinum Level (94%) power supplies
|
|
Dimension (WxHxL)
|
54.5 x 40.25 x 322 mm
|
|
Input
|
-
800W: 100-127Vac / 50-60Hz
-
860W: 200-240Vac / 50-60Hz
-
860W: 200-240Vdc / 50-60Hz
|
|
+12V
|
-
Max: 66.6A / Min: 0A (100Vac-127Vac)
-
Max: 71.6A / Min: 0A (200Vac-240Vac)
-
Max: 71.6A / Min: 0A (200Vdc-240Vdc)
|
|
5V SB
|
Max: 4A / Min: 0A
|
|
Output Type
|
Backplanes (gold finger)
|
|
Operating Environment
|
|
Environmental Spec.
|
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
-
Operating Relative Humidity: 8% to 90% (non-condensing)
-
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-
Single AMD EPYC™ 9004/9005* Series Processor
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
-
Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s
(Please check System Memory Section for detail)
-
2 PCIe 5.0 x16 FHHL
-
Dual AIOM (OCP 3.0) for networking, 1 dedicated IPMI LAN
-
10 Hot-swap 2.5" SATA drive bays
Optional 10 Hot-swap NVMe/SAS drives support via additional parts
2 M.2 PCIe 3.0 x2 NVMe slots
-
Dual 860W Redundant Platinum Level power supplies
(Power supply full redundancy based on configuration and application load)
-
Web Server, Firewall Application
-
Data Center Optimized, Value IaaS
-
Cloud Computing, Compact Server
-
DNS & Gateway Servers, Firewall Application
-
CDN, Edge Nodes
