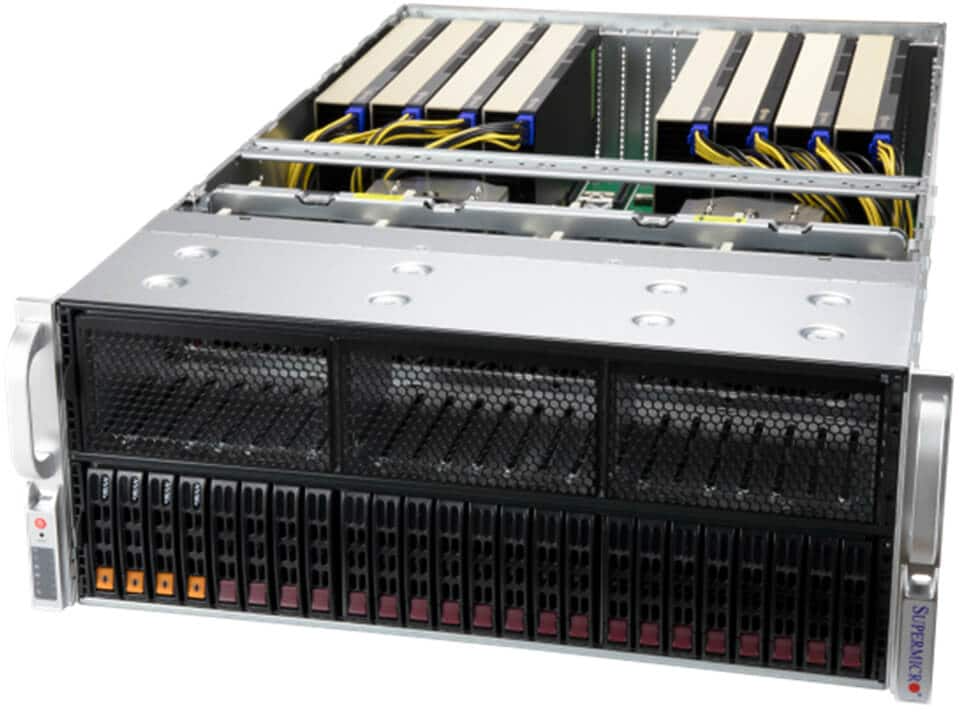

AS -4125GS-TNRT

DP AMD 4U System with up to 8 PCIe Direct-Connect GPUs

型號 : AS -4125GS-TNRT

數量 :

Product SKUs
AS -4125GS-TNRT
Motherboard
Super H13DSG-O-CPU
Processor
CPU	Dual processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count	Up to 160C/320T; Up to 512MB Cache per CPU
Note	Supports up to 400W TDP CPUs
GPU
Max GPU Count	Up to 8 double-width GPUs
Supported GPU	NVIDIA PCIe: L4, L40S, NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 4500 Blackwell, NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX 4000 SFF Ada Generation, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation AMD PCIe: Instinct™ MI210, Radeon™ AI PRO R9700S View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ Bridge (optional), AMD Infinity Fabric™ Link (optional)
System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) View Memory Options
Memory Voltage	1.1V
On-Board Devices
SATA	SATA (6Gbps)
Chipset	AMD SP5
Network Connectivity	2 RJ45 10GbE View AIOM Options View AOC Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports
USB	2 ports(rear)
Video	1 VGA port
Serial	1 COM port(rear)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	4U Rackmount
Model	CSE-418G2TS
Dimensions and Weight
Height	7" (178 mm)
Width	17.2" (437 mm)
Depth	29" (737 mm)
Package	26.57" (H) x 27" (W) x 41" (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Black Front & Silver Body
Front Panel
Buttons	Power On/Off button System Reset button
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Expansion Slots
PCI-Express (PCIe) Configuration	Default 9 PCIe 5.0 x16 FHFL slots Option A 10 PCIe 5.0 x16 FHFL slots View AOC Options
Drive Bays / Storage

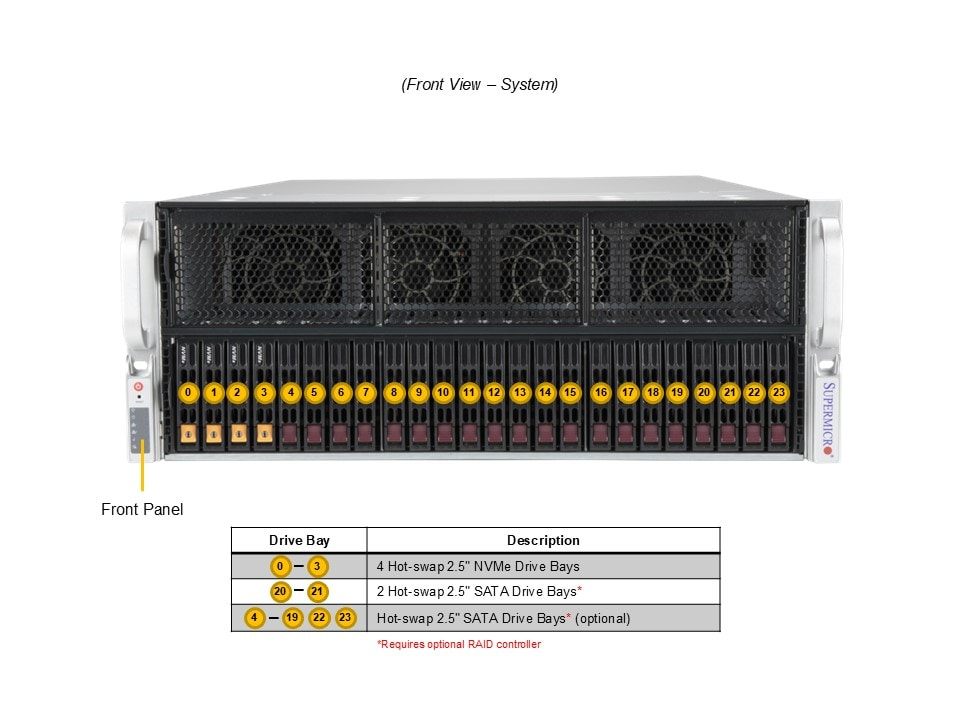

Drive Bays Configuration	Default: Total 6 bays 2 front hot-swap 2.5" SATA drive bays 4 front hot-swap 2.5" NVMe drive bays Option A: Total 2 bays 2 front hot-swap 2.5" SATA drive bays View NVMe Options View Drive Options
M.2	1 M.2 PCIe 3.0 x4 NVMe slot (M-key) View M.2 Options
System Cooling
Fans	Up to 8 heavy duty fans with optimal fan speed control
Power Supply
	4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle	Return Server-End of Life Product

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

Flexible GPU support: active & passive GPUs
Direct Attached Configuration for up to 8 double width, full length GPUs
8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control

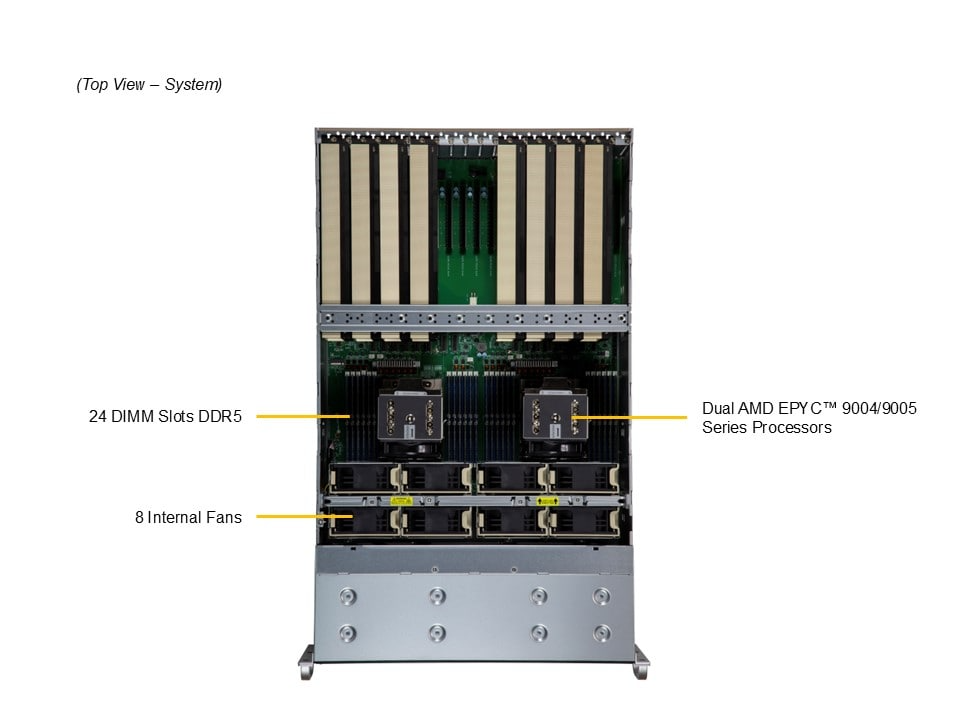

Dual-Socket, AMD EPYC™ 9004/9005 Series Processors up to 400W TDP
Supports up to 24 DIMM Slots, 6000 MT/s 6TB DDR5 memory
(Please check System Memory Section for detail)

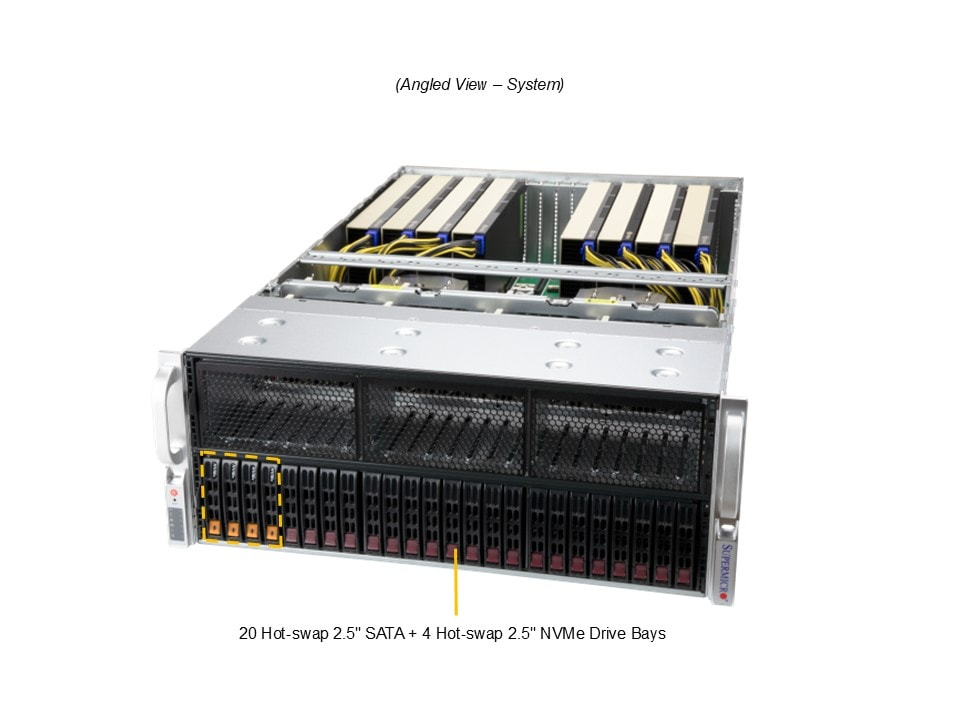

Dual front hot-swap 2.5" SATA + 4 front hot-swap 2.5" NVMe drive bays
One onboard M.2 Slot
(The PCIe signal for 4 NVMe drives can be re-directed for PCIe slot8 enablement)
Total of 4x 2000W Redundant (2+2 or 3+1) Titanium Level power supplies
(2+2 under 4000 Watt, 3+1 under 6000 Watt)
(Power supply full redundancy based on configuration and application load)
