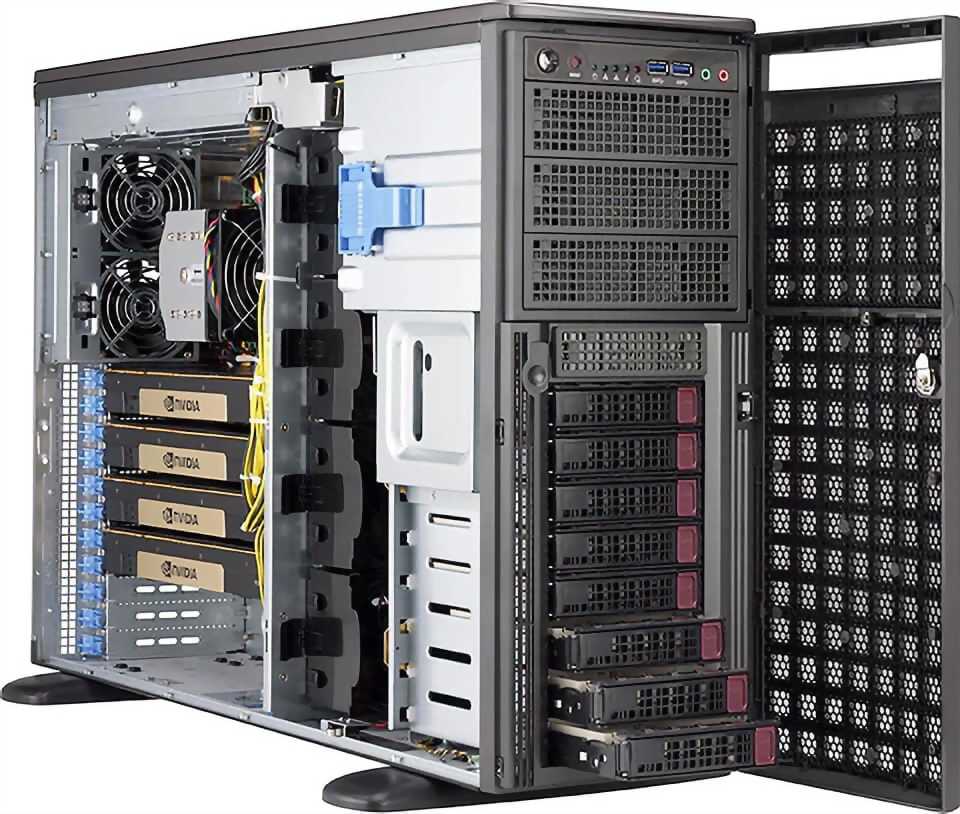

SYS-540A-TR

適用於 AI、深度學習與機器學習開發的單路全塔式工作站。
型號 : SYS-540A-TR

SYS-540A-TR 是 Supermicro SuperWorkstation 單處理器伺服器等級工作站。適用於 AI、深度學習與機器學習開發的單路全塔式工作站。

本機型面向需要可靠運算、儲存、擴充與專業圖形配置的工作站部署。主要配置參考包含 3rd Gen Intel® Xeon® Scalable processors、Full-Tower、8 default 與 1x 2200W Redundant。

原廠參考連結:Supermicro 原廠產品頁面

Product SKUs
SYS-540A-TR
Motherboard
Super X12SPA-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel(R) Xeon(R) Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 4 single-width GPUs
Supported GPU
Certification
  • NVIDIA Certified
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
  • 1 RJ45 1GbE with Intel(R) I210-AT
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 1 RJ45 10GbE with Marvell(R) AQC113
  • View AOC Options
Input / Output
USB
  • 2 USB 2.0 ports (header)
  • 2 USB 2.0 ports (rear)
  • 2 USB 3.2 ports (header)
  • 4 USB 3.2 ports (rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) - NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10-fan status, 3.3V standby, HT, Memory, VBAT
Certifications
Operating Systems

Chassis
Form Factor
  • Full-Tower Rackmount
Model
  • CSE-747BTS-R2K20BP
Dimensions and Weight
Height
  • 18.32" (465.4 mm)
Width
  • 6.96" (177 mm)
Depth
  • 26.71" (678.5 mm)
Package
  • 12.95" (H) x 27.12" (W) x 38.22" (D)
Weight
  • Gross Weight: 57 lbs (25.85 kg)
  • Net Weight: 52.9 lbs (24 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
  • System Reset
LED
  • HDD activity
  • Network activity
  • Power On
  • System Overheat / Fan Fail LED
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
Peripheral Bays
  • 3 5.25" bays
System Cooling
Fans
  • Up to 4x 92mm Fan(s)
  • Up to 2x 80mm Fan(s)
Power Supply
  • 1x 2200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2090W: 230-240Vac / 50-60Hz
  • 2200W: 230-240Vac
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 174.17A / Min: 0A (230Vac-240Vac)
  • Max: 183.3A / Min: 0A (220Vac-240Vac)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10 degrees C to 35 degrees C (50 degrees F to 95 degrees F)
  • Non-operating Temperature: -40 degrees C to 60 degrees C (-40 degrees F to 140 degrees F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

* For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

產品說明

SYS-540A-TR 是 Supermicro SuperWorkstation 單處理器伺服器等級工作站。適用於 AI、深度學習與機器學習開發的單路全塔式工作站。

本機型面向需要可靠運算、儲存、擴充與專業圖形配置的工作站部署。主要配置參考包含 3rd Gen Intel® Xeon® Scalable processors、Full-Tower、8 default 與 1x 2200W Redundant。

原廠參考連結:Supermicro 原廠產品頁面

產品特點

  • CPU:1
  • CPU 類型:3rd Gen Intel® Xeon® Scalable processors
  • 硬碟槽:8 default
  • 外型規格:Full-Tower
  • 支援 GPU:N/A
  • 電源:1x 2200W Redundant

應用場景

  • 專業工作站運算
  • 內容創作、工程或 AI 工作負載,依實際配置而定
  • 企業級工作站部署
  • 專業工作站運算
  • 內容創作
  • 工程/模擬
  • 企業級工作站部署
