SYS-511R-ML

1U short-depth server with up to 3 internal 2.5" SATA bays and 1 PCIe 5.0 x16 slot
型號 : SYS-511R-ML
Product SKUs
SuperServer SYS-511R-ML
Motherboard
Super X13SCH-SYS
Processor
CPU
  • Single V0 (LGA-1700)
  • Intel® Xeon® 6300-series/E-2400/Pentium® G7400/G7400T processors
Core Count
  • Up to 8C/16T; Up to 24MB Cache
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 4 DIMM slots/2 Channels
  • Max Memory (1DPC): Up to 64GB 4400MT/s ECC DDR5 UDIMM
  • Max Memory (2DPC): Up to 128GB 4000MT/s ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C266
Network Connectivity

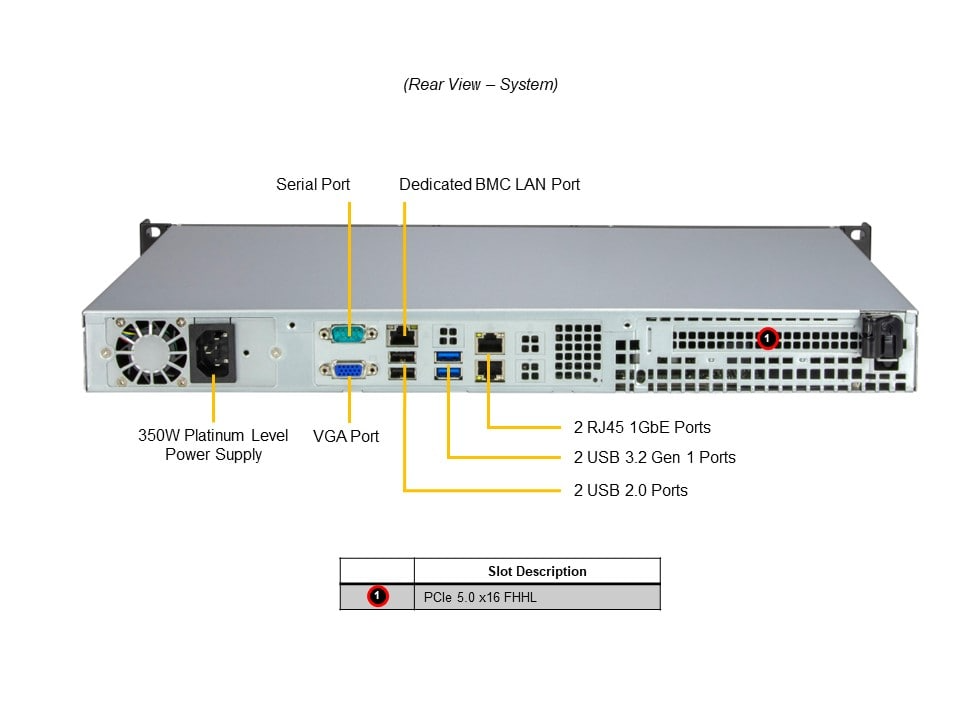

Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen1 Type-A port(Header)
Video
  • 1 VGA port
Serial
  • 1 COM port(header)
  • 1 COM port(rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 6 + 1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Mini-1U
Model
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 14.5" (368 mm)
Package
  • 6.3" (H) x 22" (W) x 20" (D)
Weight
  • Gross Weight: 14 lbs (6.35 kg)
  • Net Weight: 11 lbs (4.99 kg)
Available Color
  • Black

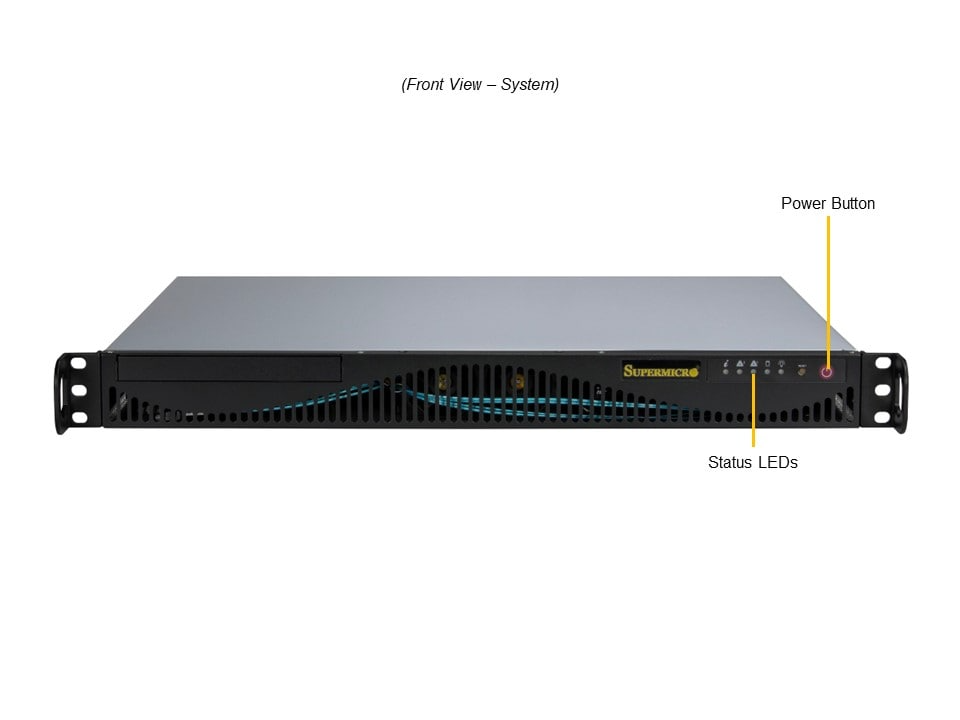

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration

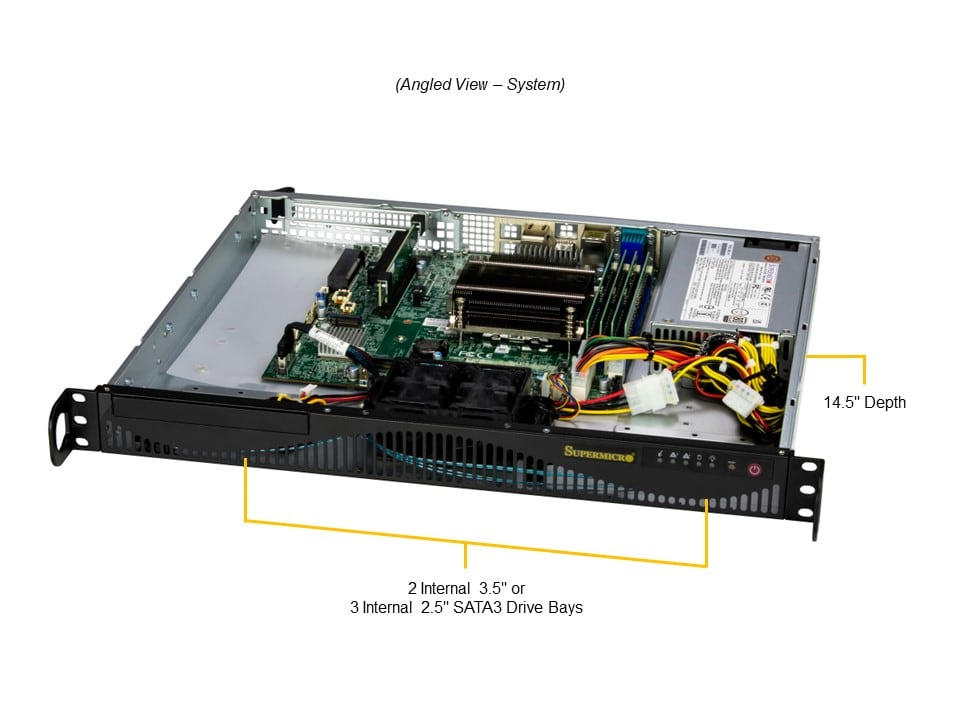

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 1 bay
    • 1 internal fixed 3.5" SATA drive bay
  • Option A: Total 2 bays
    • 2 internal fixed 3.5" SATA* drive bays
  • Option B: Total 3 bays
    • 3 internal fixed 2.5" SATA* drive bays
  • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
System Cooling
Fans
  • Up to 2 counter-rotation PWM 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
1x 350W Platinum Level (93%) power supply
Dimension (WxHxL) 100 x 40 x 180 mm
Input 350W: 100-240Vac
350W: 100-240Vac / 50-60Hz
+12V Max: 29A / Min: 0.5A
Max: 29A / Min: 0.5A (100Vac-240Vac)
5V SB Max: 3A / Min: 0A
Output Type 24pin ATX
Certification Platinum Level Certified  Platinum Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)

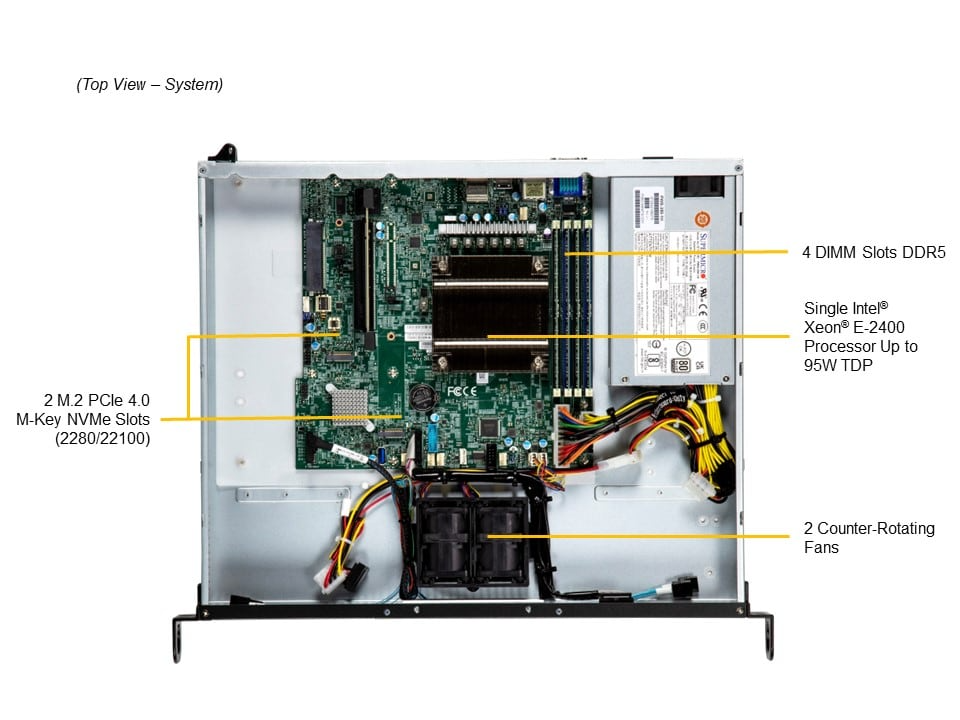

  1. Single Socket V0 (LGA-1700) supports Intel® Xeon® 6300-series / E-2400 series, Intel® Pentium® processors
  2. 4 DIMMs; Up to 128GB of DDR5 ECC UDIMM memory with speeds of up to 4400MHz
  3. 1 PCIe 5.0 x16 (FHHL)
  4. Intel® Ethernet Controller i210 2x 1GbE RJ45
  5. Single Platinum 350W Power Supply
