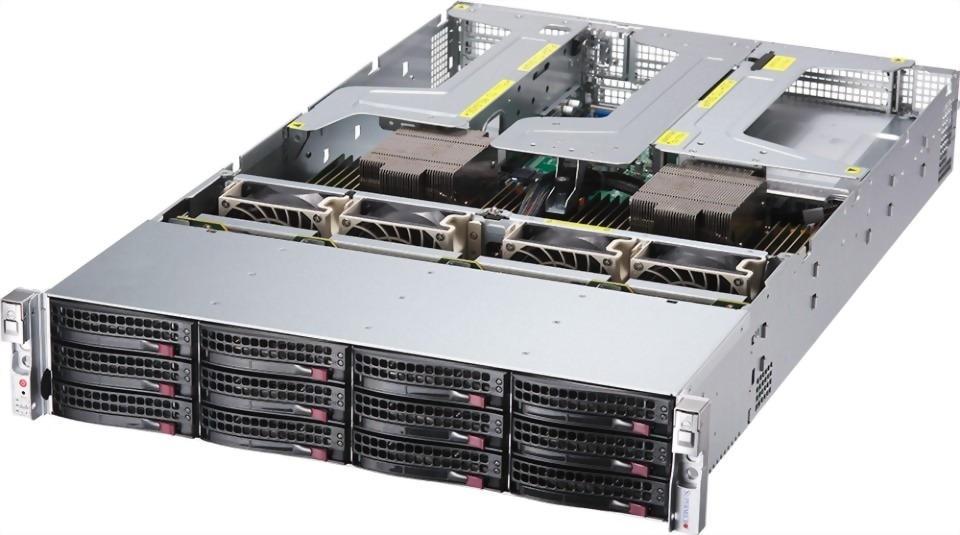

Product SKUs
|
|
AS -2024US-TNR
|
|
Motherboard
|
|
Super H12DSU-iN
|
|
Processor
|
|
CPU
|
|
|
Note
|
-
Supports up to 280W TDP CPUs (Air Cooled)
|
|
System Memory
|
|
Memory
|
-
Slot Count: 32 DIMM slots
-
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
-
View Memory Options
|
|
Memory Voltage
|
|
|
On-Board Devices
|
|
Network Connectivity
|
|
|
Input / Output
|
|
LAN
|
-
1 RJ45 1 GbE Dedicated BMC LAN port
|
|
USB
|
-
3 USB 3.0 Type-A ports(Rear)
|
|
Video
|
|
|
Serial
|
|
|
DOM
|
-
2 SATA DOM (Disk on Module) ports
|
|
TPM
|
|
|
System BIOS
|
|
BIOS Type
|
-
AMI 32MB SPI Flash EEPROM
|
|
BIOS Features
|
-
Plug and Play (PnP)
-
USB Keyboard support
-
ACPI 5.1
-
DMI 2.3
-
PCI 2.2
-
SMBIOS 3.1.1
|
|
Management
|
|
Software
|
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
-
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
|
Features
|
-
Cryptographically Signed Firmware
-
Secure Boot
-
Secure Firmware Updates
-
Automatic Firmware Recovery
-
System Lockdown
|
|
PC Health Monitoring
|
|
CPU
|
-
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
|
|
FAN
|
-
Pulse Width Modulated (PWM) fan connectors
-
Status monitor for speed control
|
|
Temperature
|
-
CPU thermal trip support
-
Monitoring for CPU and chassis environment
|
|
|
|
Chassis
|
|
Form Factor
|
|
|
Model
|
|
|
Dimensions and Weight
|
|
Height
|
|
|
Width
|
|
|
Depth
|
|
|
Package
|
-
10.28" (H) x 24.65" (W) x 45.39" (D)
|
|
Weight
|
-
Gross Weight: 72 lbs (16.4 kg)
-
Net Weight: 36 lbs (16.4 kg)
|
|
Available Color
|
|
|

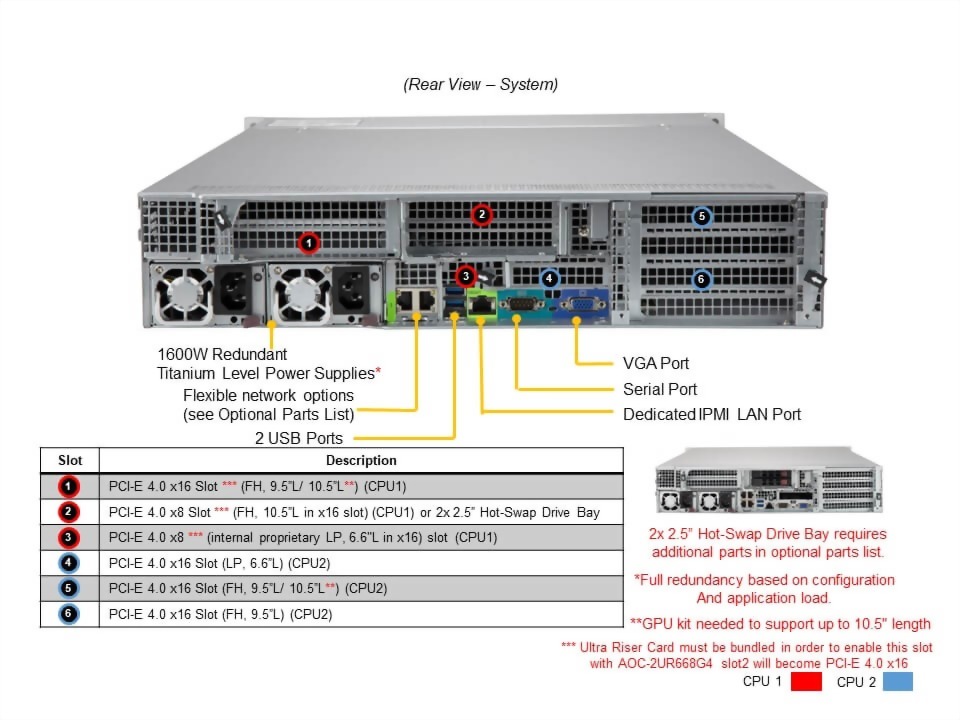

Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
-
Default
-
2 PCIe 4.0 x16 FH/10.5"L slots
-
1 PCIe 4.0 x16 LP slot
-
1 PCIe 4.0 x16 FH/9.5"L slot
-
1 PCIe 4.0 x8 (in x16) FH/9.5"L slot
-
1 PCIe 4.0 x8 internal slot
-
View AOC Options
|
|

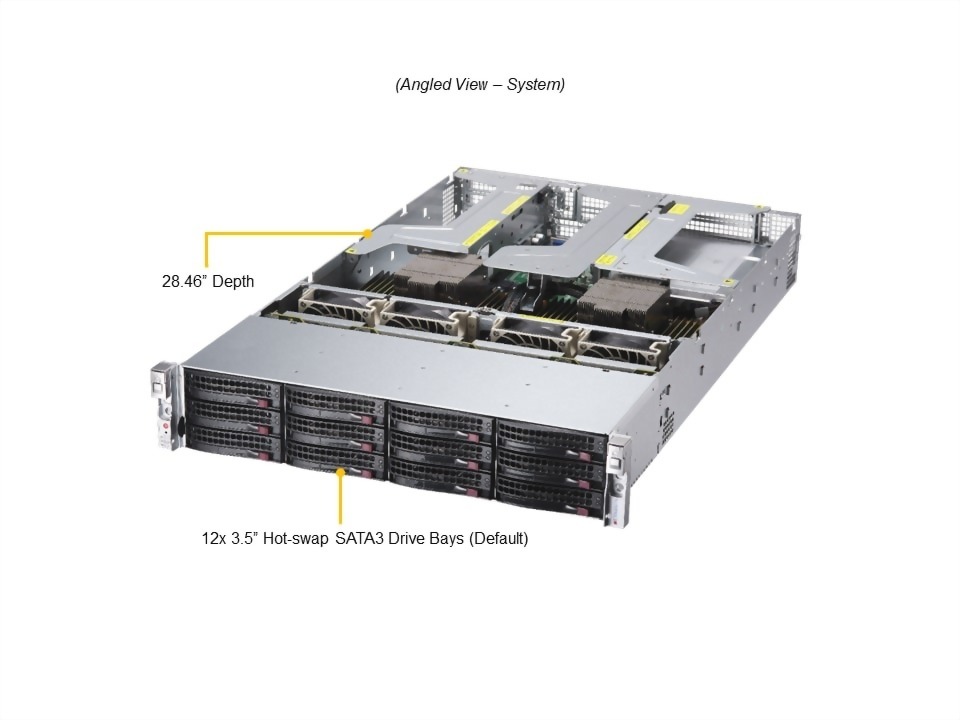

Drive Bays / Storage
|
|

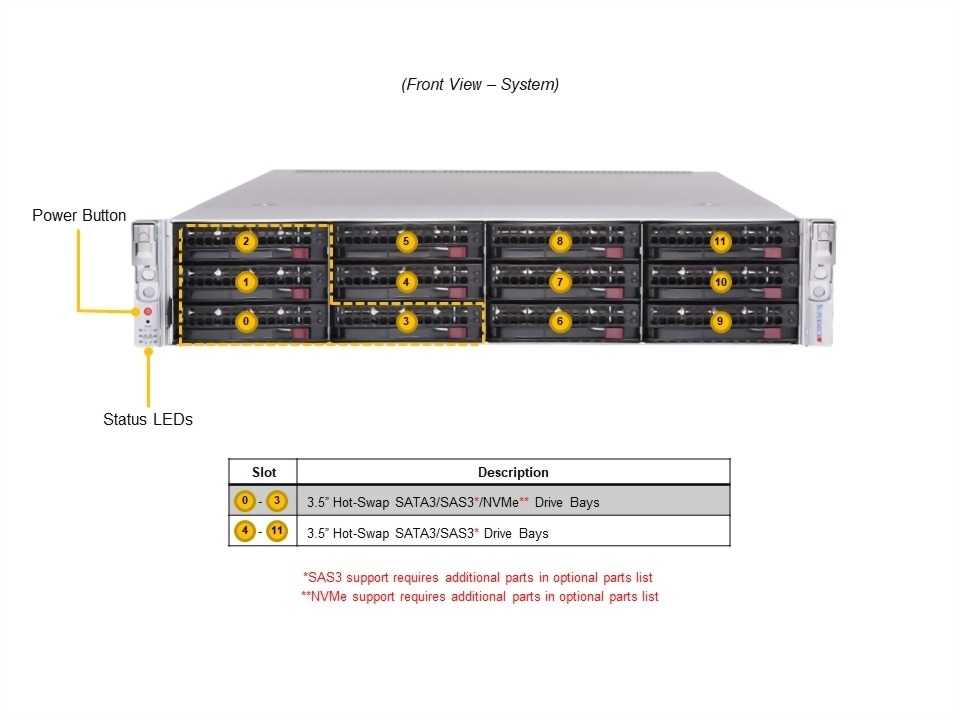

Drive Bays Configuration
|
-
Default: Total 12 bays
-
12 front hot-swap 3.5" SATA drive bays
-
Option A: Total 12 bays
-
8 front hot-swap 3.5" SATA drive bays
-
4 front hot-swap 2.5" NVMe* drive bays
-
Option B: Total 12 bays
-
12 front hot-swap 3.5" SAS* drive bays
-
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
-
View NVMe Options
-
View Drive Options
|
|
System Cooling
|
|
Fans
|
-
Up to 4 heavy duty fans with optimal fan speed control
|
|
Power Supply
|
|
|
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
|
|
Dimension (WxHxL)
|
73.5 x 40 x 203 mm
|
|
Input
|
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
|
|
+12V
|
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
|
|
12V SB
|
Max: 2.1A / Min: 0A
|
|
Output Type
|
Backplanes (gold finger)
|
|
Certification
|
 Titanium Level
[ Test Report ]
|
|
Operating Environment
|
|
ROHS
|
|
|
Environmental Spec.
|
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
-
Operating Relative Humidity: 8% to 90% (non-condensing)
-
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

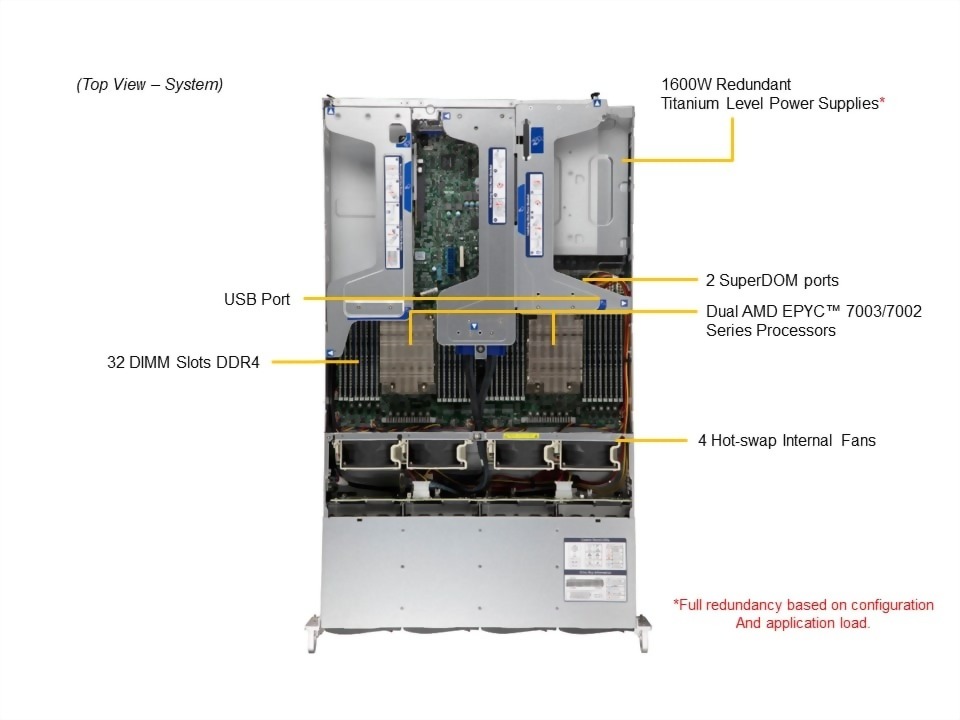

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
-
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
-
Must bundle with optional Ultra Riser Card
1 PCIe 4.0 x16 (FH/10.5" L) slot
1 PCIe 4.0 x16 (FH, 9.5" L) slot
1 PCIe 4.0 x16 (LP) slot,
1 PCIe 4.0 x16 (FH, 10.5" L) slot, 1 PCIe 4.0 x8 (internal proprietary LP in x16) slot*
1 PCIe 4.0 x8 FH, 9.5" L (in x16) slot (with AOC-2UR668G4 this slot will become PCIe 4.0 x16)
-
12 hot-swap 3.5" Drive Bays:
12 SATA3 by default
or 8 SATA3 + 4 NVMe via optional tray
-
