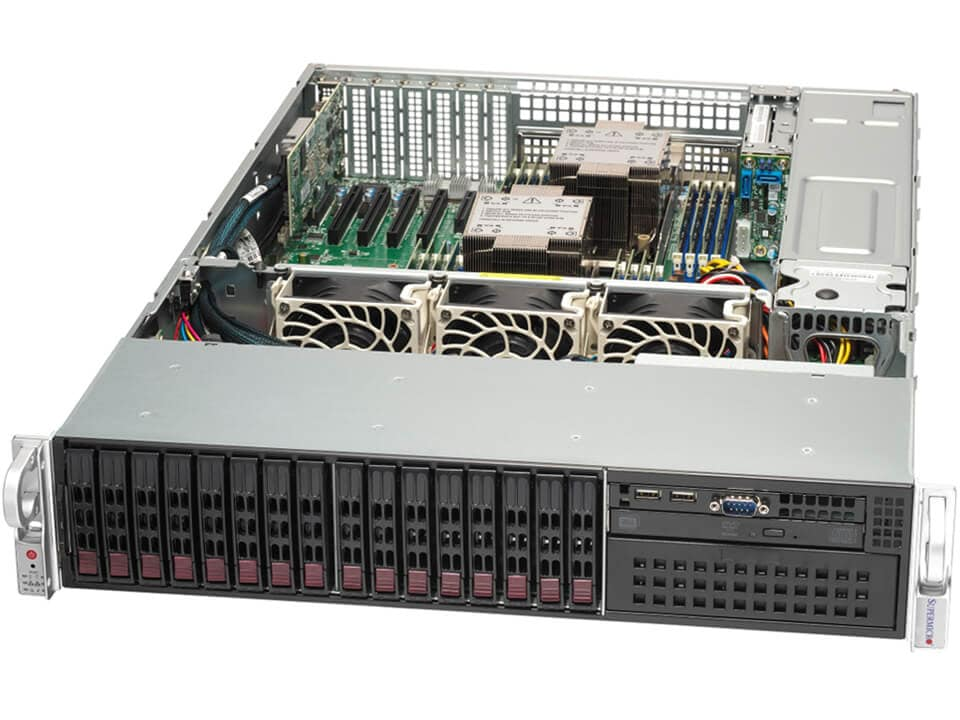

SYS-221P-C9RT

2U Mainstream with 5 PCIe 5.0 slots and dual 10GbE LAN

型號 : SYS-221P-C9RT

數量 :

Product SKUs
SYS-221P-C9RT
Motherboard
Super X13DEI-T
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note	Supports up to 300W TDP CPUs (Air Cooled)
System Memory

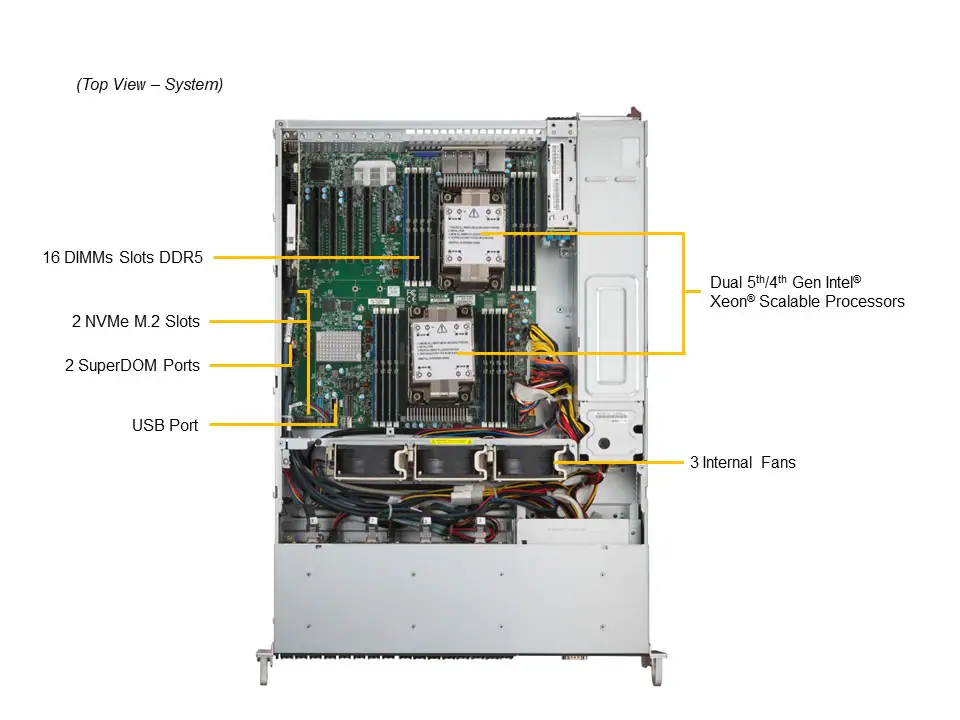

Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Memory Options: DDR5 RDIMM-5600 Registered ECC
Memory Voltage	1.1V
On-Board Devices
Network Connectivity	2 RJ45 10GbE View AOC Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 2.0 ports (front) 4 USB 3.0 ports (rear)
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA)
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	2U Rackmount
Model	CSE-213BTS-R1K23LPBP3-1
Dimensions and Weight
Height	3.5" (89 mm)
Width	17.2" (437 mm)
Depth	24.8" (630 mm)
Package	11" (H) x 29" (W) x 38.7" (D)
Weight	Gross Weight: 63 lbs (28.8 kg) Net Weight: 38 lbs (17.4 kg)
Available Color	Black

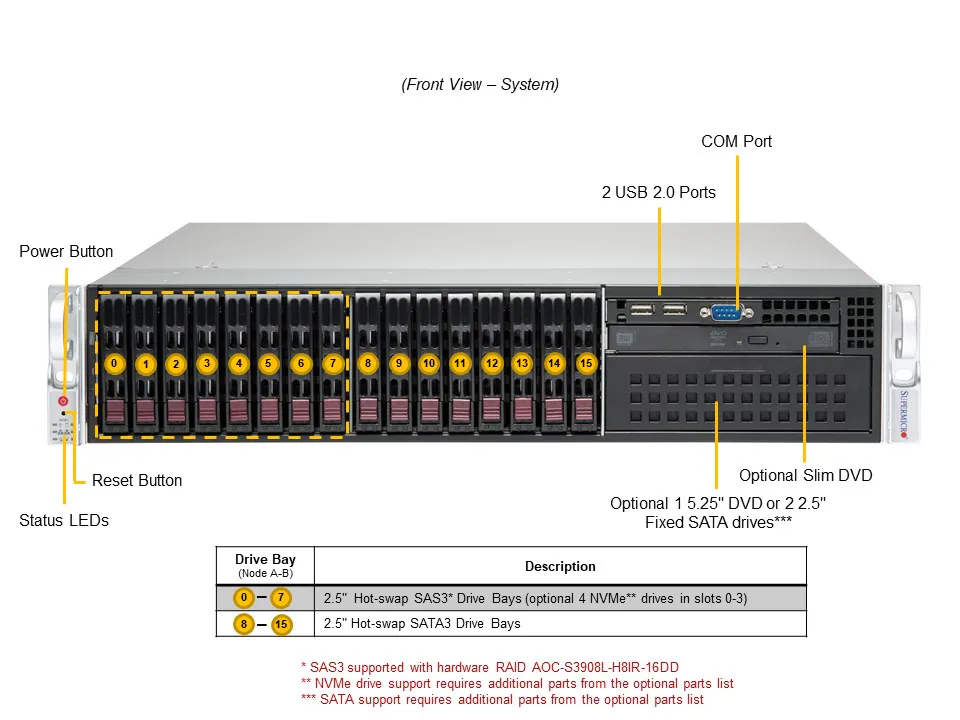

Front Panel
Buttons	Power On/Off System Reset
LED	HDD activity Network activity Power status System information (overheat/UID)
Expansion Slots

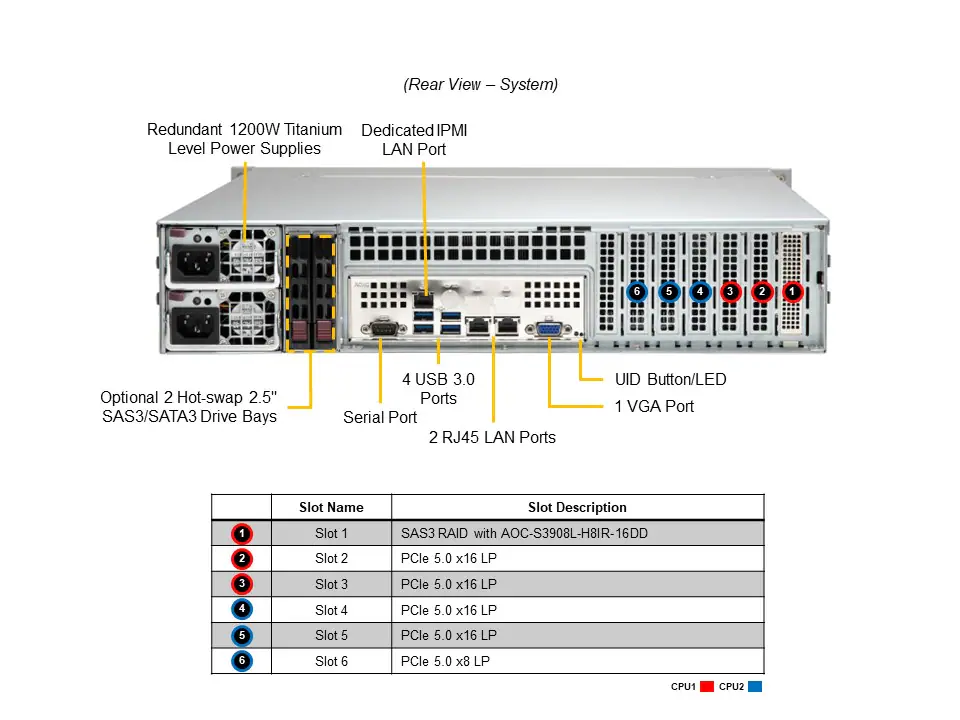

PCI-Express (PCIe) Configuration	Default: 4 PCIe 5.0 x16 LP slots / 1 PCIe 5.0 x8 LP slot View AOC Options
Drive Bays / Storage

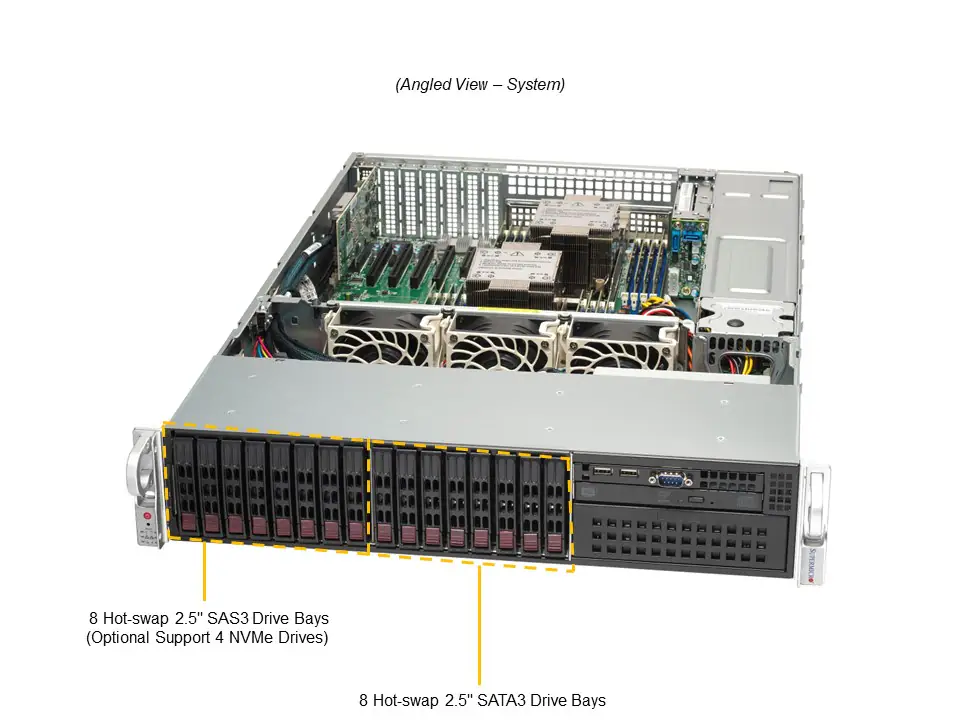

Drive Bays Configuration	Default: Total 16 bays 4 front hot-swap 2.5" NVMe/SAS/SATA drive bays 4 front hot-swap 2.5" SAS/SATA drive bays 8 front hot-swap 2.5" SAS/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables) View NVMe Options View Drive Options
M.2	2 M.2 NVMe slots (M-key) View M.2 Options
Peripheral Bays	1 slim DVD bay (optional)
System Cooling
Fans	Up to 3x 8cm heavy duty fans with optimal fan speed control
Power Supply
2x 1200W Redundant (1+1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)	76 x 40 x 336 mm
Input	1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors, supports up to 300W TDP
16 DIMM slots, Up to 4TB DDR5-5600MHz/4800MHz ECC Registered RDIMM
4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
1200W Redundant Titanium level Power Supplies
