AS -2024US-TRT

2U Ultra with 12 SATA bays and 4 PCIe 3.0 x16 slots

型號 : AS -2024US-TRT

數量 :

Product SKUs
A+ Server AS -2024US-TRT

Motherboard
Super H12DSU-iN

Processor
CPU	Dual Socket SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 2 double-width or 4 single-width GPUs
Supported GPU	NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, RTX A2000, RTX 8000, RTX 6000, RTX 4000, A40, A16, A2, A100, A10 AMD PCIe: Instinct™ MI210, Instinct™ MI100 View GPU Options

System Memory
Memory	Slot Count: 32 DIMM slots/8 Channels Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	2 RJ45 10GbE View Network Card (AOC) Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) USB Keyboard support ACPI 5.1 DMI 2.3 PCI 2.2 SMBIOS 3.1.1

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New! IPMICFG SMCIPMITool IPMIView

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal control for 8x Fan connectors I²C Temperature Sensing Logic
FAN	Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Up to 8-fan status tachometer monitoring Up to eight 4-pin fan headers
CPU	Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator
Other Features	Chassis Intrusion Detection Chassis Intrusion Header

Dimensions and Weight
Height	3.5" (89 mm)
Width	17.2" (437 mm)

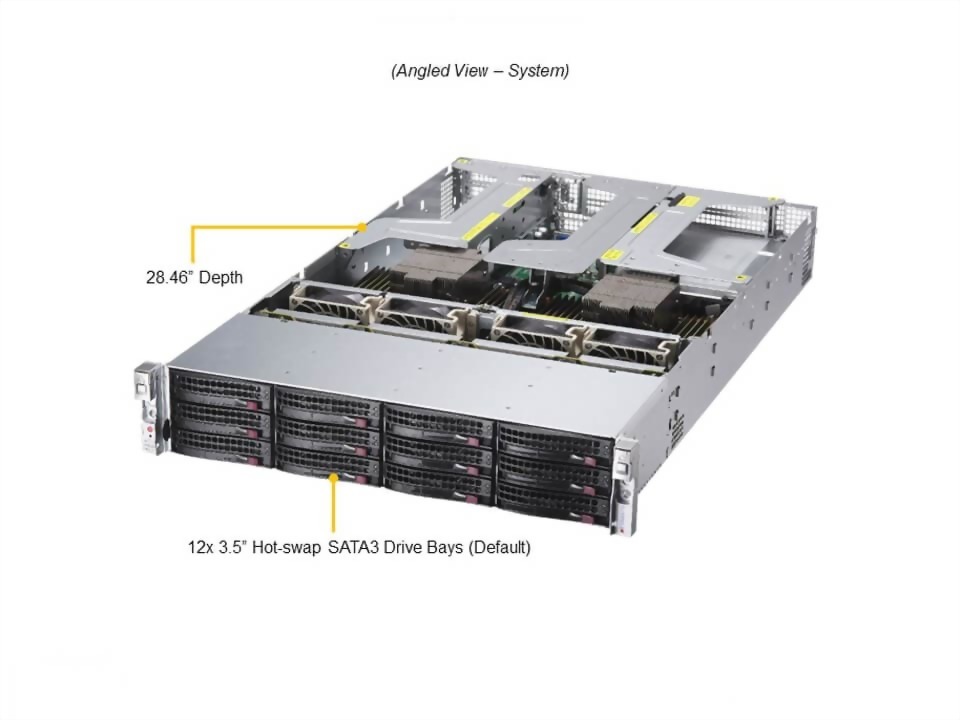

Depth	28.46" (723 mm)
Package	10.28" (H) x 24.65" (W) x 45.39" (D)
Weight	Gross Weight: 72 lbs (32.7 kg) Net Weight: 36 lbs (16.4 kg)
Available Color	N/A

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 4.0 x16 FH/10.5"L slots 1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x8 LP slot 1 PCIe 4.0 x16 FH, 9.5"L slot 1 PCIe 4.0 x8 (in x16) FH, 9.5"L slot View AOC Options

Drive Bays / Storage

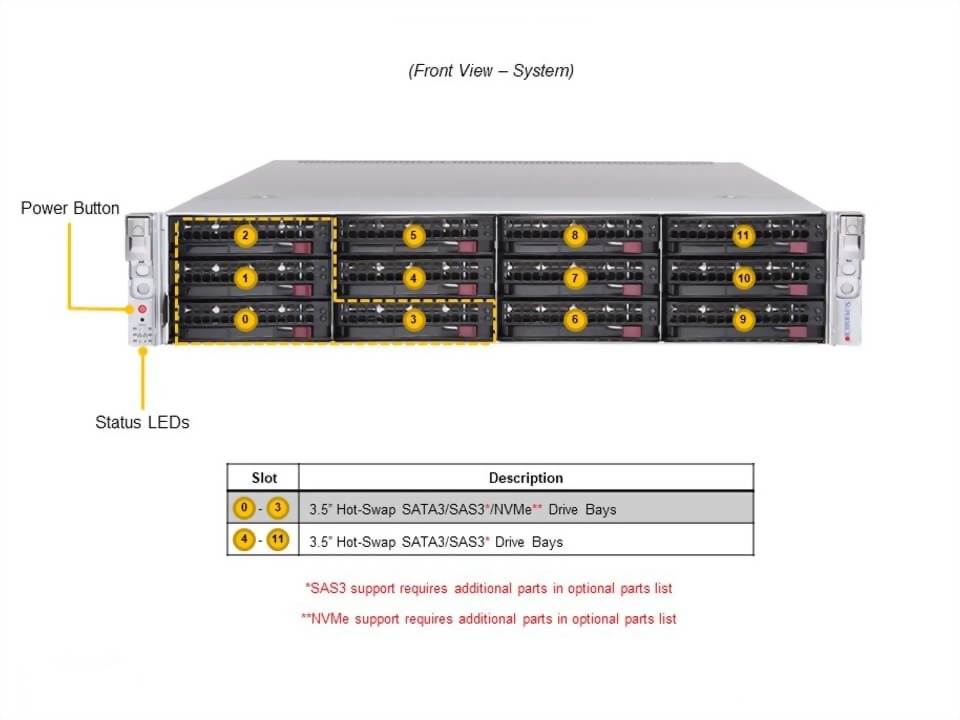

Drive Bays Configuration

Default: Total 12 bays
- 12 front hot-swap 3.5" SATA drive bays
Option A: Total 12 bays
- 8 front hot-swap 3.5" SATA drive bays
- 4 front hot-swap 3.5"/2.5" NVMe* drive bays
Option B: Total 12 bays
- 12 front hot-swap 3.5" SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
View NVMe Options
View Drive Options

System Cooling
Fans	Up to 4 heavy duty fans with optimal fan speed control

Power Supply

2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

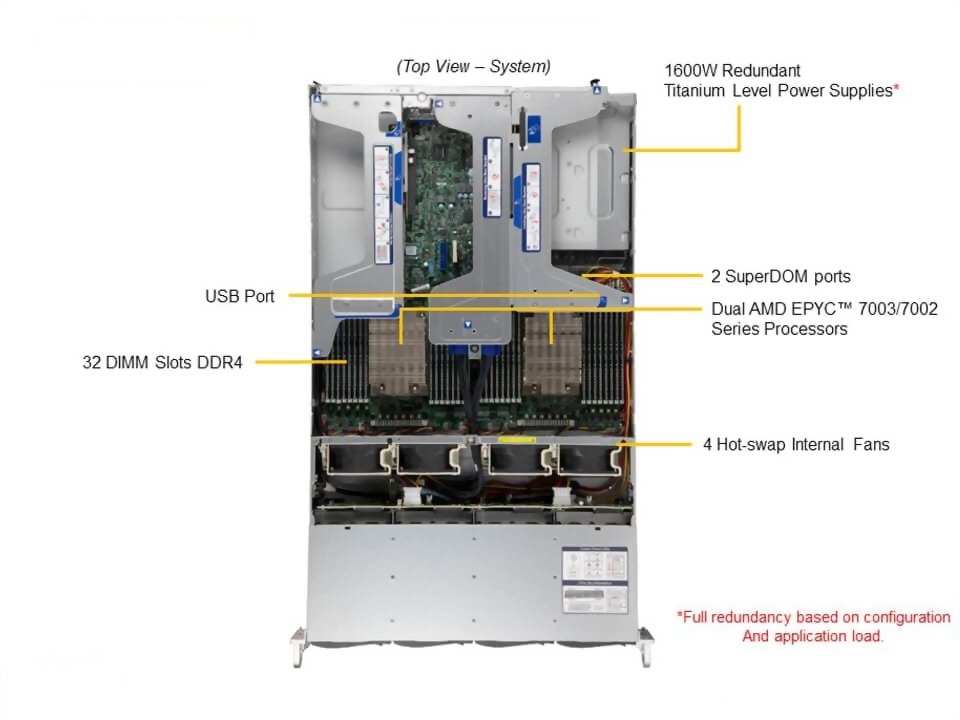

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

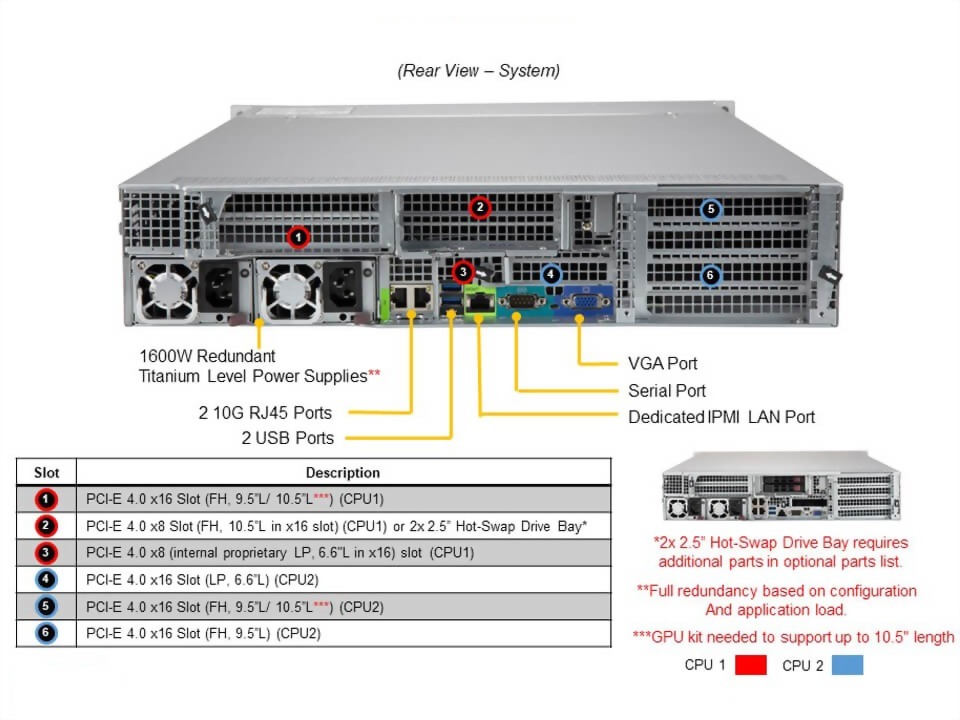

2 PCIe 4.0 x16 (FH, 10.5" L) slots,
1 PCIe 4.0 x16 (FH, 9.5" L) slot,
1 PCIe 4.0 x16 (LP) slot,
1 PCIe 4.0 x8 (FH, 9.5" L, in x16) slot,
1 PCIe 4.0 x8 (internal proprietary LP in x16) slot
Dual 10GBase-T LAN ports via Intel® X710-AT2
12 SATA3 by default
or 8 SATA3 + 4 NVMe via optional tray
or 12 SAS3 via optional SAS kit
