| Product SKUs | | AS -2125HS-TNR | | Motherboard | | Super H13DSH | | Processor | | CPU | | | Core Count | | | Note | - Supports up to 400W TDP CPUs *
- *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
| | GPU | | Max GPU Count | - Up to 3 double-width GPUs
| | Supported GPU | | | System Memory | | Memory | - Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
- Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | | | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
| | USB | | | Video | | | System BIOS | | BIOS Type | - AMI 32MB SPI Flash EEPROM
| | BIOS Features | - ACPI 6.4
- Plug and Play (PnP)
- SMBIOS 3.5 or later
- UEFI 2.8
- USB Keyboard support
| | Management | | Software | | | Power configurations | - ACPI Power Management
- Power-on mode control for AC power loss recovery
- Power button override mechanism,
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
| | PC Health Monitoring | | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
| | Voltage | - System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 10.4" (H) x 23.8" (W) x 43.6" (D)
| | Weight | - Gross Weight: 72 lbs (32.7 kg)
- Net Weight: 39 lbs (17.7 kg)
| | Available Color | - Black front & silver body

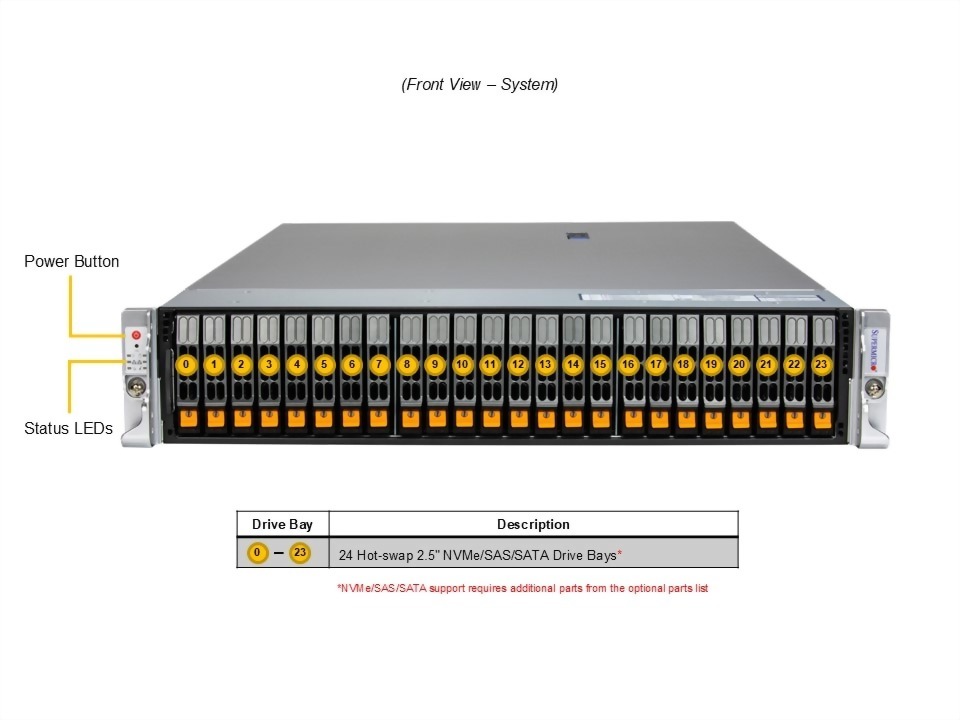

| | Front Panel | | Buttons | | | LED | - HDD activity
- LAN1 activity
- Power status
- System information

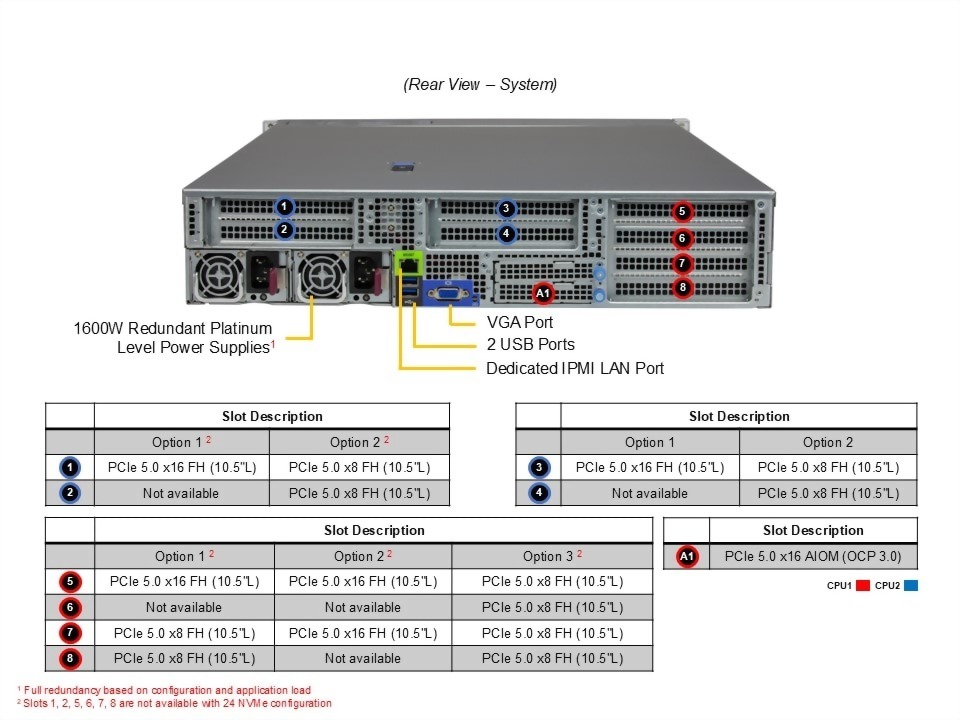

| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option A*
- 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option B*
- 2 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option C*
- 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option D*
- 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
- 2 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option E*
- 4 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option F*
- 4 PCIe 5.0 x16 (in x16) FHFL double-width slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option G*
- 3 PCIe 5.0 x16 (in x16) FHFL double-width slots
- 2 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option H*
- 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
- 4 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option I*
- 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
- 6 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
...- View AOC Options

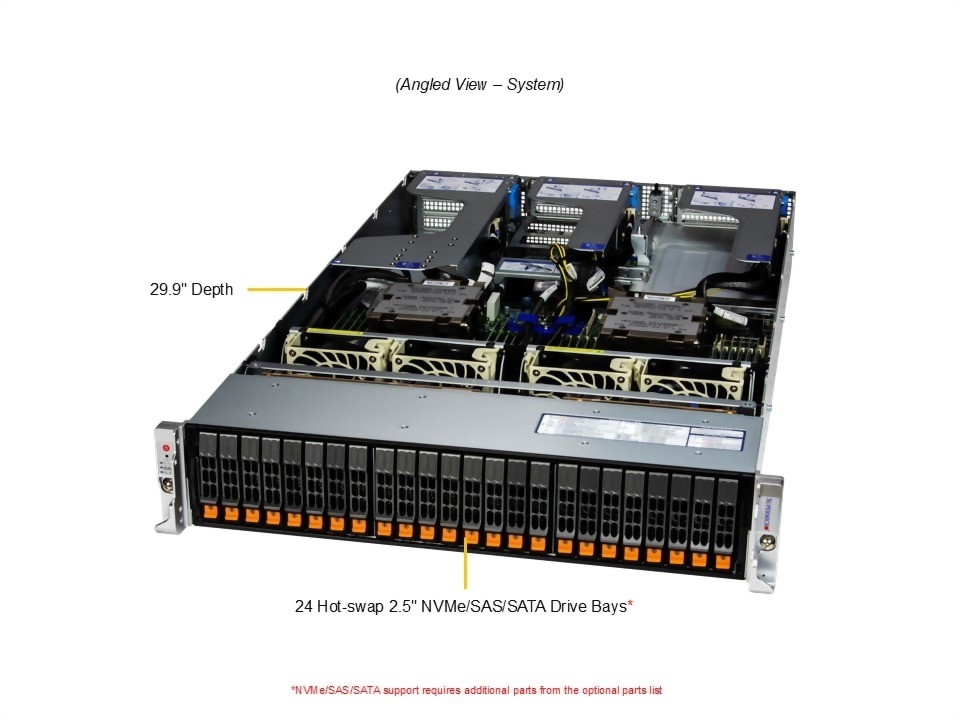

| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 24 bays
- 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
- View NVMe Options
- View Drive Options
| | M.2 | | | System Cooling | | Fans | - Up to 4x 8cm heavy duty fans with optimal fan speed control
| | Air Shroud | | | Power Supply | | | 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 73.5 x 40 x 265 mm | | Input | 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) | | +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac) | | 12V SB | Max: 3.5A / Min: 0A Max: 3.5A | | Output Type | Backplanes (gold finger) | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
| | Environmental / Recycling | | Recycle | |
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-
Dual AMD EPYC™ 9004/9005* Series Processors
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx)
-
Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
(Please check System Memory Section for detail)
-
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
-
24 Hot-swap 2.5" NVMe/SATA/SAS drive bays
2 M.2 PCIe 3.0 NVMe slots
-
Dual 1600W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)
- Virtualization
- AI Inference and Machine Learning
- Enterprise Server
- Software-defined Storage
- Cloud Computing
