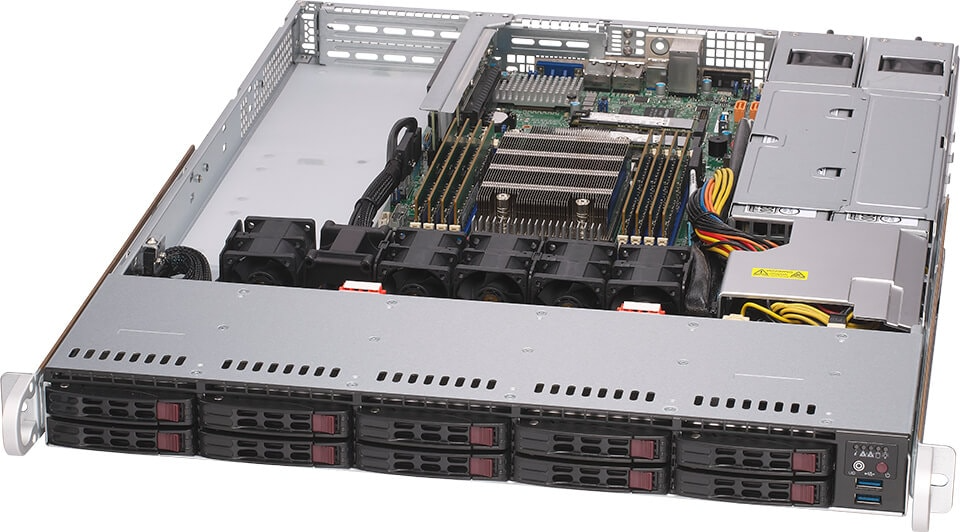

AS -1114S-WTRT

1U WIO with 10 hot-swap SATA bays and dual 10GbE

型號 : AS -1114S-WTRT

數量 :

規格
特點

Product SKUs
A+ Server AS -1114S-WTRT Standard version with PWS-504P-1R (Platinum Level)
A+ Server AS -1114S-WTRT-EU European version with PWS-601A-1R (Titanium Level)

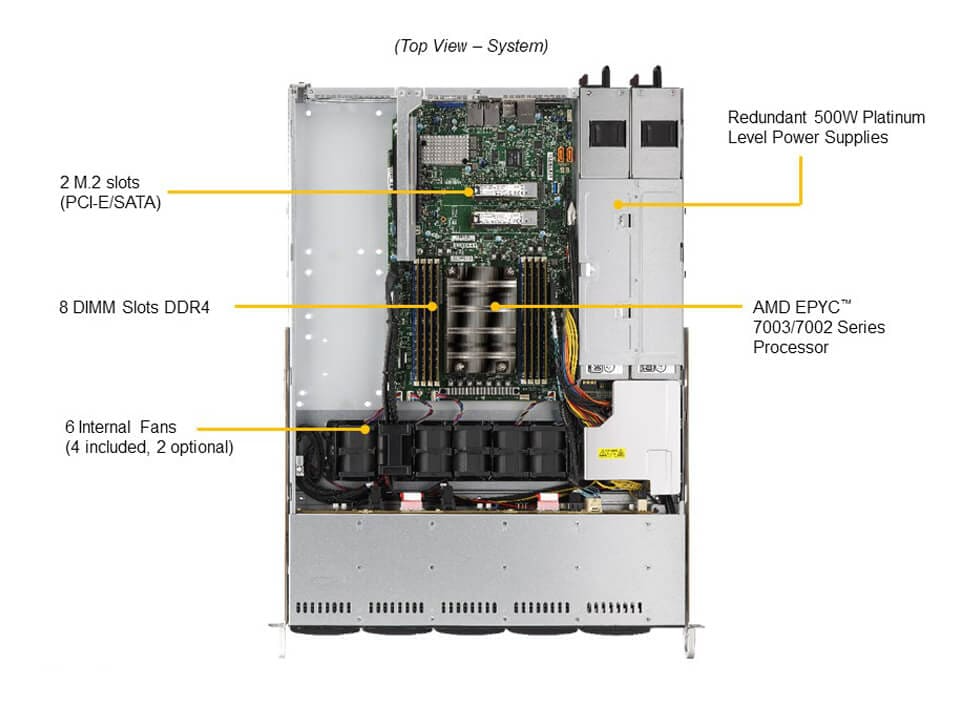

Motherboard
Super H12SSW-NT

Processor
CPU	Single Socket SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 2 double-width or 2 single-width GPUs
Supported GPU	NVIDIA PCIe: A2, T4 View GPU Options

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
Chipset	System on Chip
Network Connectivity	2 RJ45 10GbE View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports
USB	7 USB 3.0 ports
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM

Management
Software	Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	1U Rackmount
Model	CSE-116TS-R504WBP

Dimensions and Weight
Height	1.7" (43 mm)
Width	17.2" (437 mm)

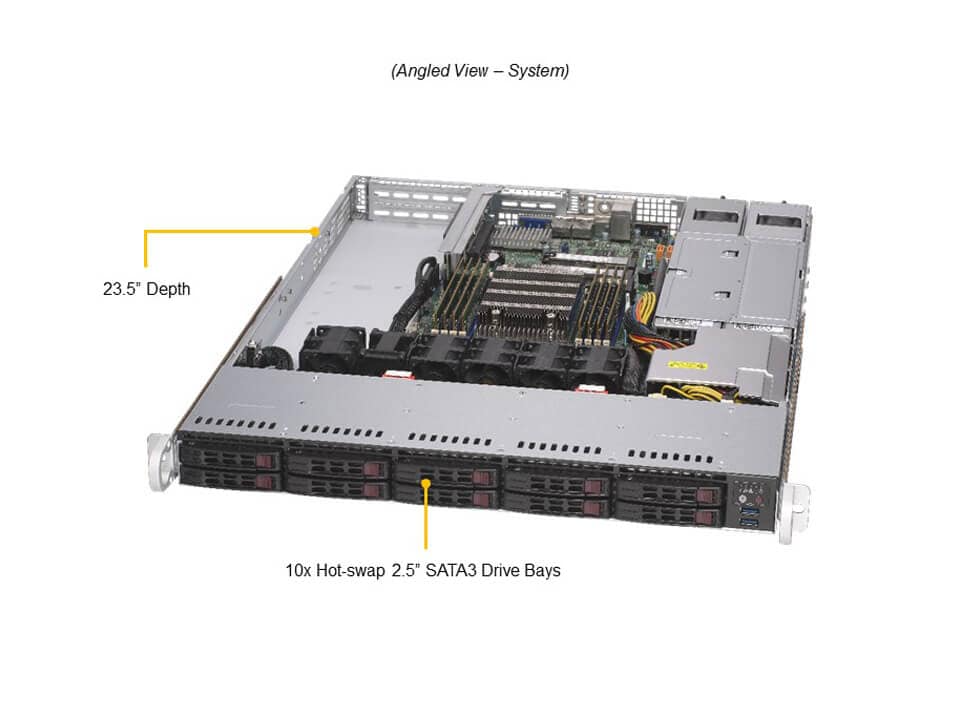

Depth	23.5" (597 mm)
Package	8" (H) x 24" (W) x 32" (D)
Weight	Gross Weight: 46 lbs (20.9 kg) Net Weight: 25 lbs (11.34 kg)
Available Color	Black

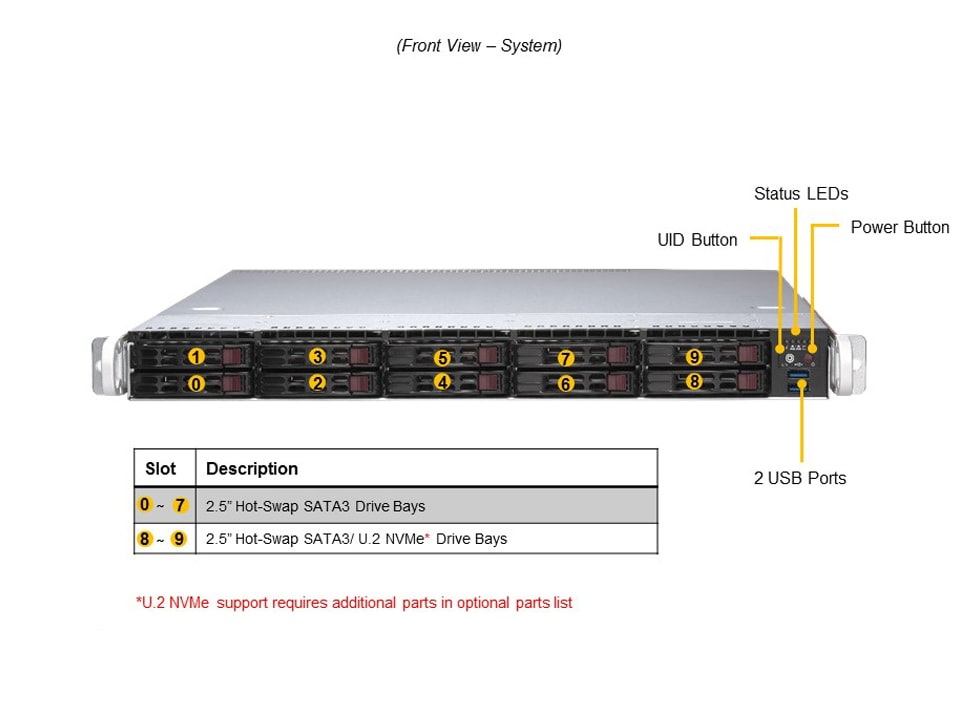

Front Panel
Buttons	Power On/Off UID button
LED	Device Activity LAN 1 Activity LAN 2 Activity Power status System information

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x16 LP slot View AOC Options
M.2	2 M.2 PCIe 3.0 x2 NVMe/SATA slots (M-key)

Drive Bays / Storage
Drive Bays Configuration	Default: Total 10 bays 10 front hot-swap 2.5" SATA drive bays Option A: Total 10 bays 8 front hot-swap 2.5" SATA drive bays 2 front hot-swap 2.5" PCIe 3.0 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options View Drive Options

System Cooling
Fans	Up to 6 heavy duty fans with optimal fan speed control

Power Supply

2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies

Dimension (WxHxL)	54.5 x 40.25 x 320 mm
Input	500W: 100-240Vac / 50-60Hz
+12V	Max: 42A / Min: 0.5A Max: 42A / Min: 0.5A (100Vac-240Vac)
5V SB	Max: 4A / Min: 0A Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Platinum Level [ Test Report ]

Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8 DIMMs; up to 2TB 3DS ECC
DDR4-3200MHz RDIMM/LRDIMM
2 PCIe 4.0 x16 FHFL slots
1 PCIe 4.0 x16 LP slot
