| Product SKUs | | AS -2025HS-TNR | | Motherboard | | Super H13DSH | | Processor | | CPU | | | Core Count | | | Note | - Supports up to 400W TDP CPUs *
- *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
| | GPU | | Max GPU Count | - Up to 2 double-width or 2 single-width GPUs
| | Supported GPU | - NVIDIA PCIe: H100, H100 NVL, A100, A16, A30, A40, L4, L40, L40S, RTX 4000, RTX 5000 Ada, RTX 6000 Ada Generation, RTX A2000, RTX A4000, RTX A4500, RTX A5000, RTX A5500, RTX A6000, T1000
- View GPU Options
| | CPU-GPU Interconnect | - PCIe 5.0 x16 CPU-to-GPU Interconnect

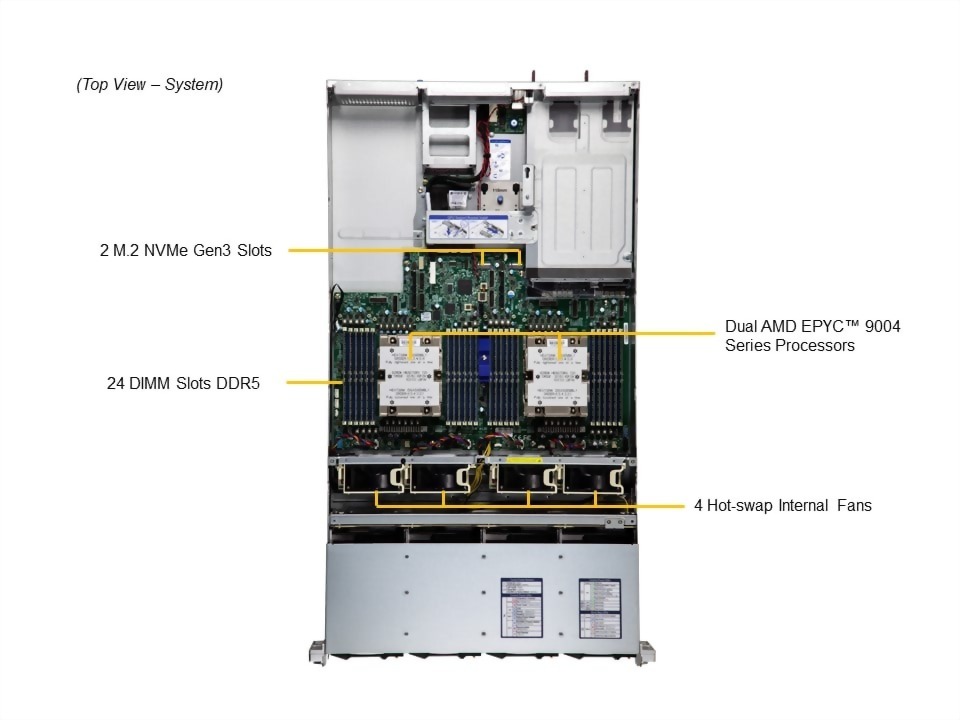

| | GPU-GPU Interconnect | | | System Memory | | Memory | - Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
- Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | | | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
| | USB | | | Video | | | System BIOS | | BIOS Type | - AMI 32MB SPI Flash EEPROM
| | BIOS Features | - ACPI 6.4
- Plug and Play (PnP)
- SMBIOS 3.5 or later
- UEFI 2.8
- USB Keyboard support
| | Management | | Software | | | Power configurations | - ACPI Power Management
- Power-on mode control for AC power loss recovery
- Power button override mechanism,
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
| | PC Health Monitoring | | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
| | Voltage | - System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 10.4" (H) x 23.8" (W) x 43.6" (D)
| | Weight | - Gross Weight: 69 lbs (31.3 kg)
- Net Weight: 39 lbs (17.7 kg)
| | Available Color | - Black front & silver body
| | Front Panel | | Buttons | | | LED | - HDD activity
- LAN1 activity
- Power status
- System information

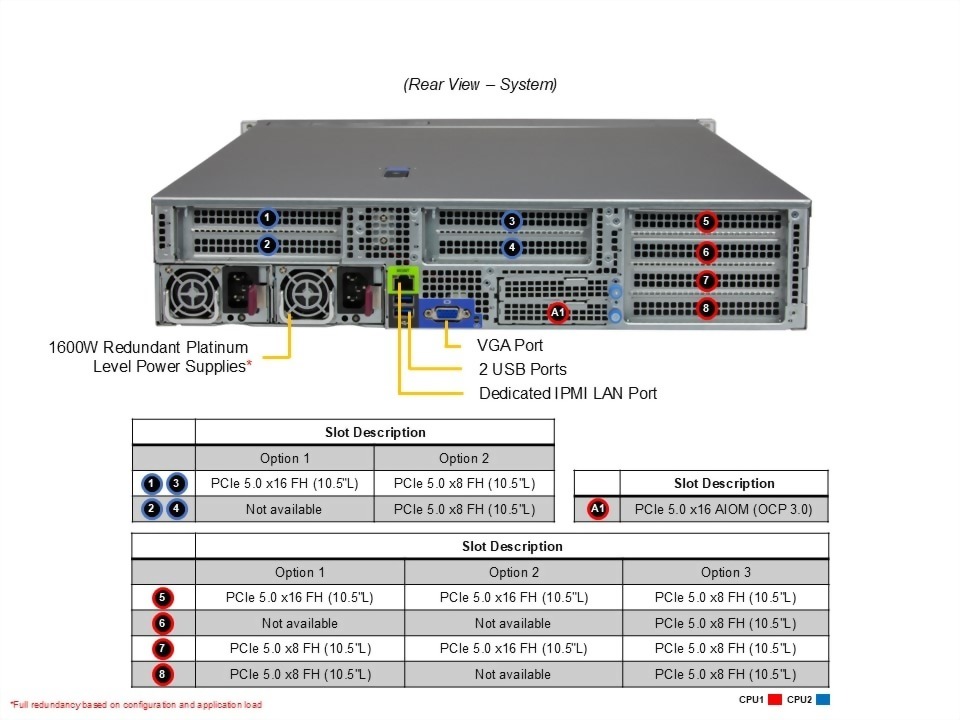

| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option A*
- 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option B*
- 2 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option C*
- 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option D*
- 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
- 2 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option E*
- 4 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option F*
- 4 PCIe 5.0 x16 (in x16) FHFL double-width slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option G*
- 3 PCIe 5.0 x16 (in x16) FHFL double-width slots
- 2 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option H*
- 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
- 4 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option I*
- 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
- 6 PCIe 5.0 x8 (in x16) FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
...- View AOC Options

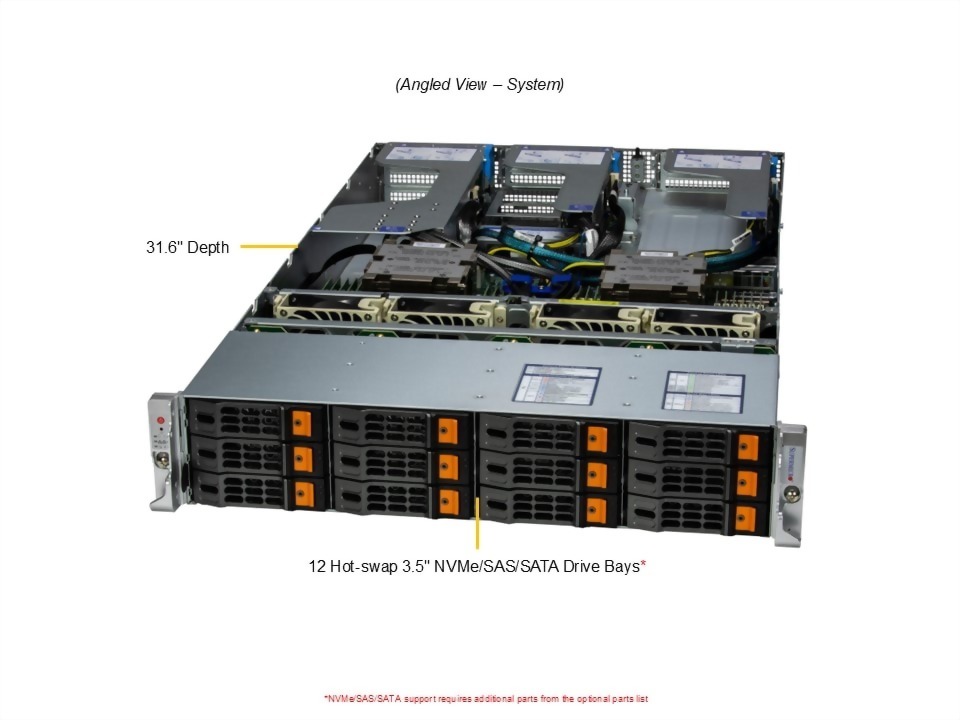

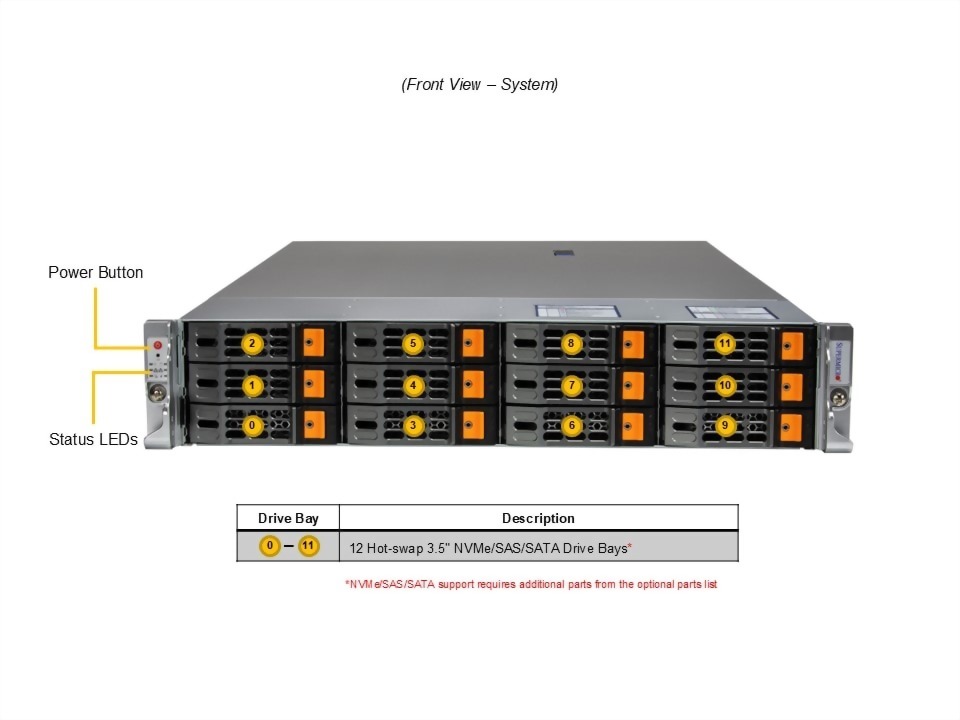

| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 12 bays
- 12 front hot-swap 3.5"/2.5" NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
- View NVMe Options
- View Drive Options
| | M.2 | | | System Cooling | | Fans | - Up to 4x 8cm heavy duty fans with optimal fan speed control
| | Air Shroud | | | Power Supply | | | 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 73.5 x 40 x 265 mm | | Input | 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) | | +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac) | | 12V SB | Max: 3.5A / Min: 0A Max: 3.5A | | Output Type | Backplanes (gold finger) | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
- Operating Relative Humidity: 8% to 80% (non-condensing)
- Non-operating Relative Humidity: 8% to 90% (non-condensing)
| | Environmental / Recycling | | Recycle | |
|
