SYS-542T-2R 是 Supermicro SuperWorkstation 系列伺服器等級工作站，設計用於高效能專業運算、工程設計、視覺化、AI 開發與企業級創作工作流程。
本頁資料依據 Supermicro 官方產品系列與亞郁既有產品頁格式恢復建立，詳細規格與可配置選項請以原廠最新資料與實際報價規格為準。
原廠參考連結：https://www.supermicro.com/zh_tw/products/system/superworkstation/4u/sys-542t-2r
SYS-542T-2R Specifications
|
Product SKUs
|
|
|

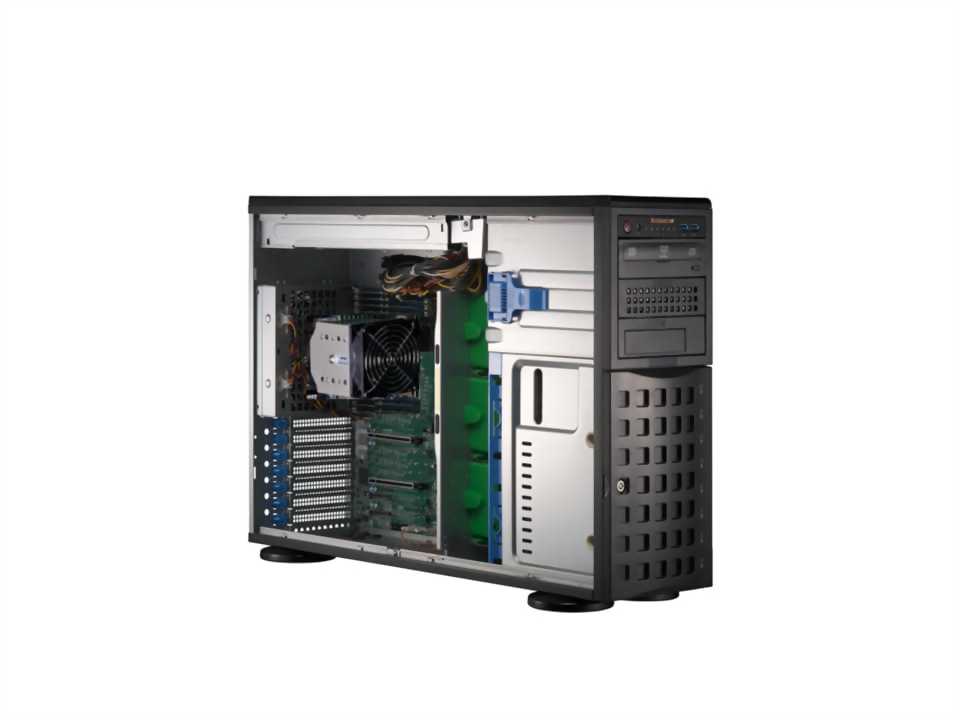

SuperWorkstation SYS-542T-2R
|
|
Processor
|
|
CPU
|
英特爾® 至強® 6 系統單晶片
|
|
Core Count
|
36C/72T; 144MB Cache
|
|
System Memory
|
|
Memory
|
Slot Count: 4 DIMM slots Max Memory (1DPC): 2TB 6400MT/s ECC DDR5 RDIMM
|
|
Memory Voltage
|
1.1V
|
|
Input / Output
|
|
LAN
|
1 RJ45 1 GbE LAN port (Intel® I210-IT) (IPMI shared on LAN port 1) 2 QSFP28 100 GbE LAN ports (Intel® SOC)
|
|
USB
|
2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 3.2 Gen1 Type-A ports(front)
|
|
Dimensions and Weight
|
|
Height
|
17.8" (452 mm)
|
|
Width
|
7" (178 mm)
|
|
Drive Bays / Storage
|
|
Drive Bays Configuration
|
Default: Total 8 bays8 front fixed 3.5"/2.5" 24G SAS*/NVMe/SAS*/SATA drive bays Option A: Total 16 bays8 front fixed 3.5"/2.5" 24G SAS*/SAS/SATA drive bays 8 front fixed 2.5" 24G…
|
|
M.2
|
2 M.2 NVMe slots (M-key 2280/22110; VROC required for RAID)
|
|
|
|
Motherboard
|
|
|
超級 X14SDI-36C-SP3F
|
|
GPU
|
|
Max GPU Count
|
Up to 1 triple-width GPU
|
|
Supported GPU
|
NVIDIA PCIe: NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation…
|
|
On-Board Devices
|
|
SATA
|
SATA (6Gbps)
|
|
SAS
|
SAS (12Gbps) ; RAID 0/1/5/6/10/50/60 support
|
|
Chassis
|
|
Form Factor
|
4U Rackmount
|
|
Model
|
CSE-745BTS-R000NDBP2
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
Default2 PCIe 5.0 x16 FHFL slots 1 PCIe 4.0 x8 FHFL slot 1 PCIe 4.0 x2 (in x4) FHFL slot
|
|
M.2
|
1 M.2 PCIe 4.0 x2 slot (M-key 2280/22110)
|
|
System Cooling
|
|
Fans
|
1 Exterior 80mm Fan(s) (optional) 5 Acoustic Optimized (Hot Swap) 80mm Fan(s) 5 Heavy Duty(Hot Swap) 80mm Fan(s) (optional)
|
|
詳細規格、選配項目與相容性請以 Supermicro 原廠最新資料及亞郁實際報價規格為準。
-
Supermicro 伺服器等級平台設計
-
支援專業工作站與高效能運算應用
-
適合長時間穩定運作的企業環境
-
可依專案需求規劃 CPU、記憶體、儲存與擴充配置
-
工程設計與模擬
-
3D 內容創作與視覺化
-
AI 開發與資料分析
-
企業級專業工作站
