| Product SKUs | | SYS-221H-TNR | | Motherboard | | Super X13DEM | | Processor | | CPU | | | Core Count | - Up to 64C/128T; Up to 320MB Cache per CPU
| | Note | - Supports up to 350W TDP CPUs (Air Cooled)
- Supports up to 350W TDP CPUs (Liquid Cooled)
| | GPU | | Max GPU Count | - Up to 4 double-width or 8 single-width GPUs
| | Supported GPU | - NVIDIA PCIe: H100, H100 NVL, A100, A16, A40, L4, L40, L40S, RTX A4000, RTX A6000
- View GPU Options
| | System Memory | | Memory | - Slot Count: 32 DIMM slots
- Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
- Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | SATA | - SATA (6Gbps) ; RAID 0/1/5/10 support
| | NVMe | - NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
- View NVMe Options
| | Network Connectivity | | | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
| | USB | - 2 USB 2.0 ports(rear)
- 2 USB 3.0 ports(Header)
| | Video | | | System BIOS | | BIOS Type | | | Management | | Software | | | Power configurations | - Power-on mode for AC power recovery
- ACPI Power Management
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
| | PC Health Monitoring | | CPU | - Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 10.4" (H) x 23.8" (W) x 43.6" (D)
| | Weight | - Gross Weight: 66 lbs (30 kg)
- Net Weight: 40 lbs (18.2 kg)

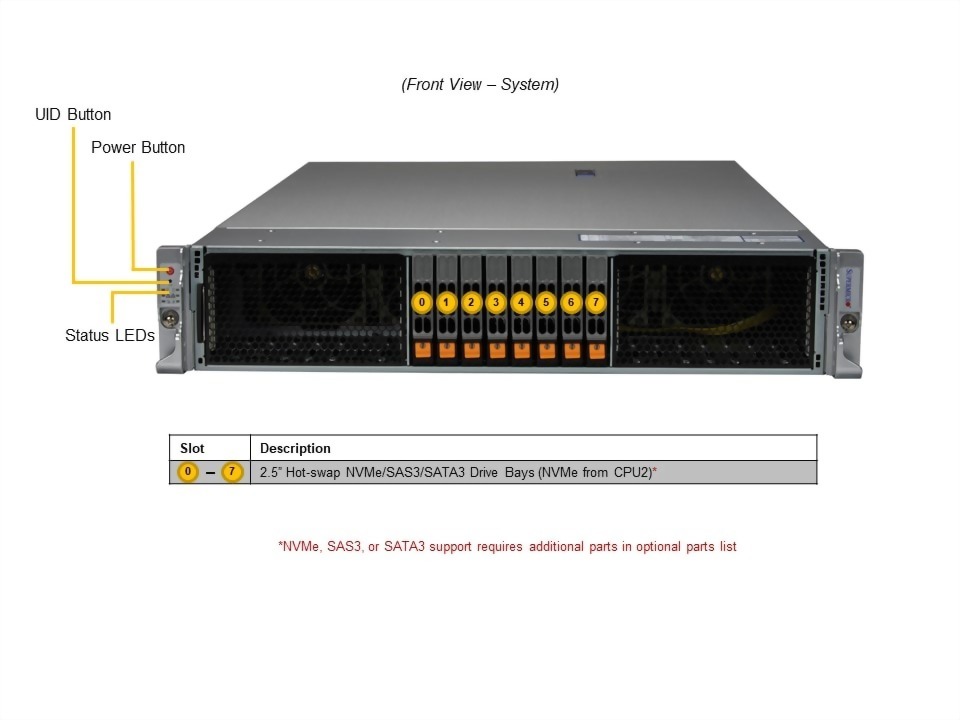

| | Available Color | | | Front Panel | | Buttons | - Power On/Off
- Power On/Off
- UID button
| | LED | - HDD activity
- LAN1 activity
- LAN2 activity
- Power
- Power Fail
- System information

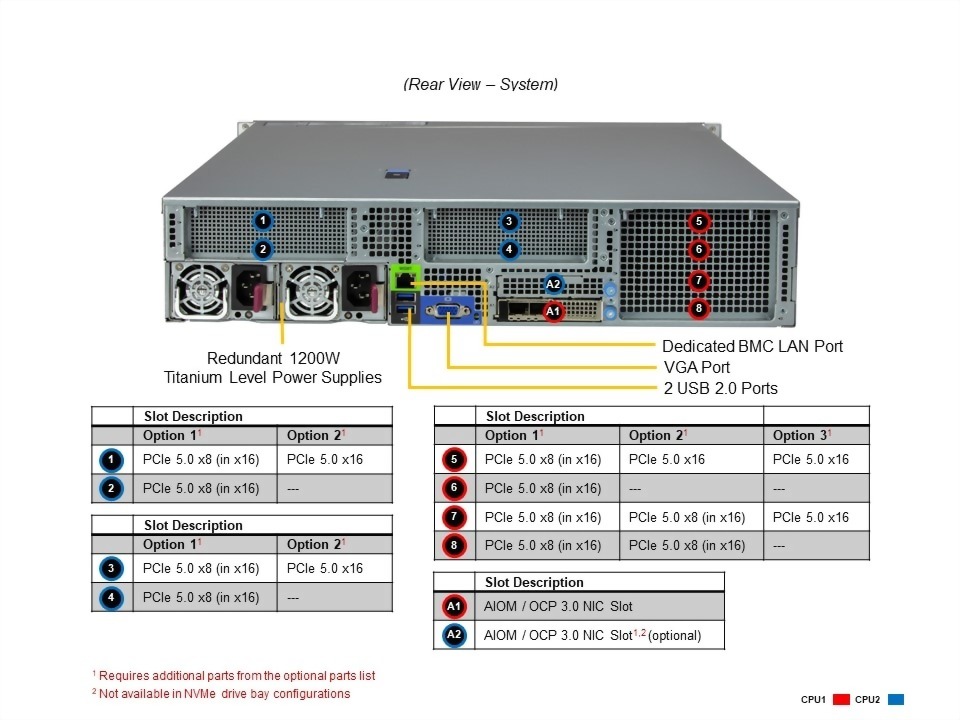

| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Option A*
- 4 PCIe 5.0 x16 FH/10.5"L double-width slots
- 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
- Option B*
- 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots
- 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
- View AOC Options
| | CXL Support | - Up to 4 CXL 1.1 x16/x8 devices
| | M.2 | - 2 M.2 NVMe/SATA slots (B+M-key 2280/22110)

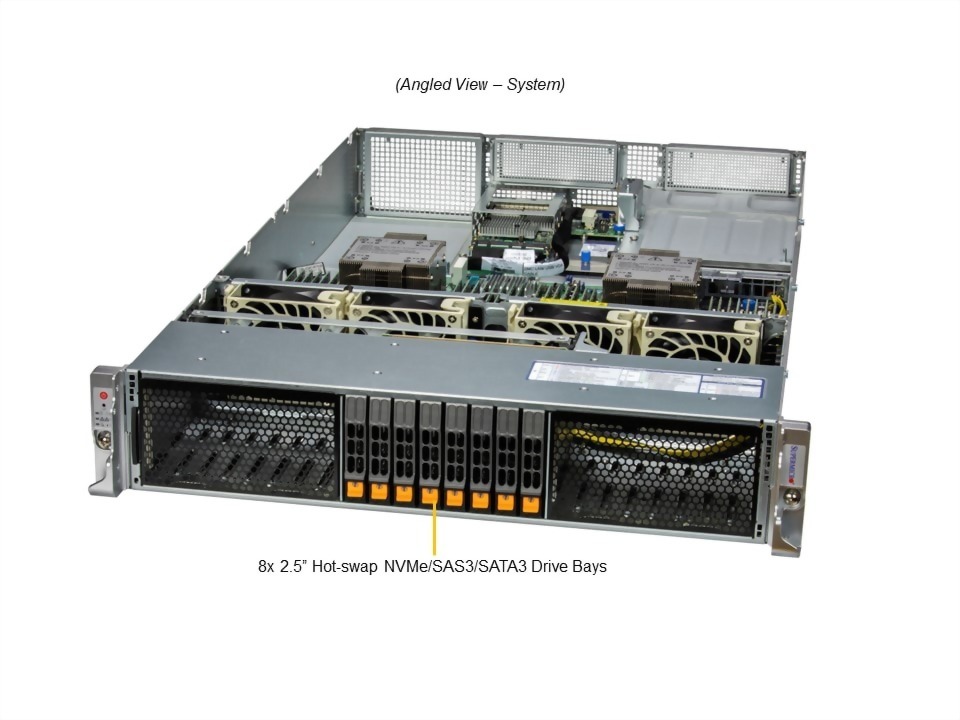

| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 8 bays
- 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
- Option A: Total 16 bays
- 16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
- View NVMe Options
- View Drive Options
| | M.2 | | | System Cooling | | Fans | - Up to 4x 8cm heavy duty fans with optimal fan speed control

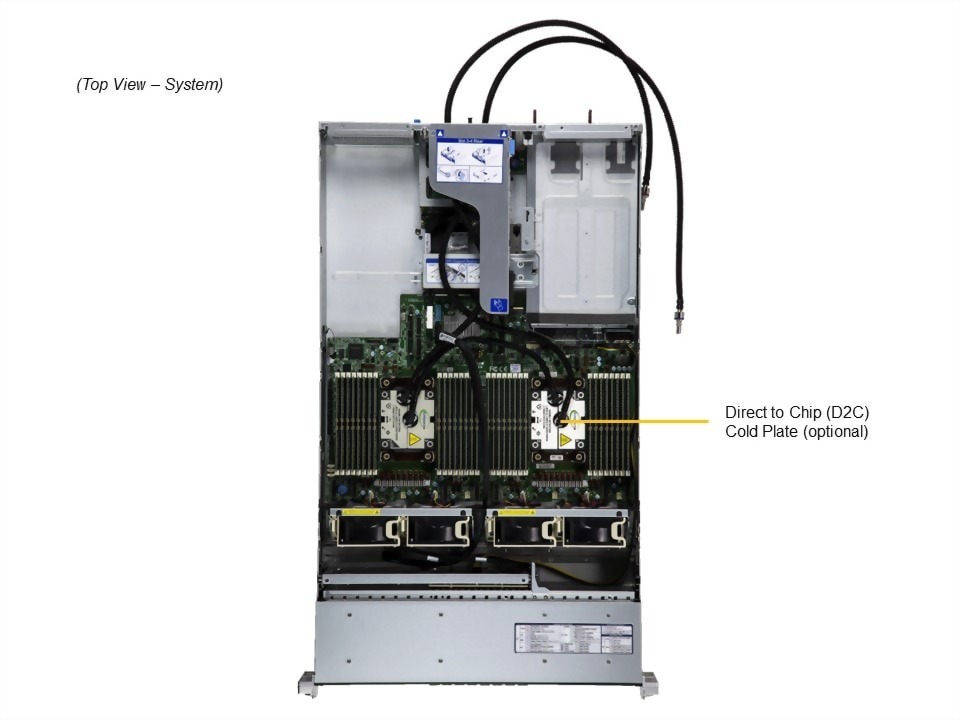

| | Air Shroud | | | Liquid Cooling | - Direct to Chip (D2C) Cold Plate (optional)
| | Power Supply | | | 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies | | Dimension (WxHxL) | 73.5 x 40 x 265 mm | | Input | 800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only) | | +12V | Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) | | 12V SB | Max: 2.1A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | Environmental Spec. | - Name: A2
- Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
- Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

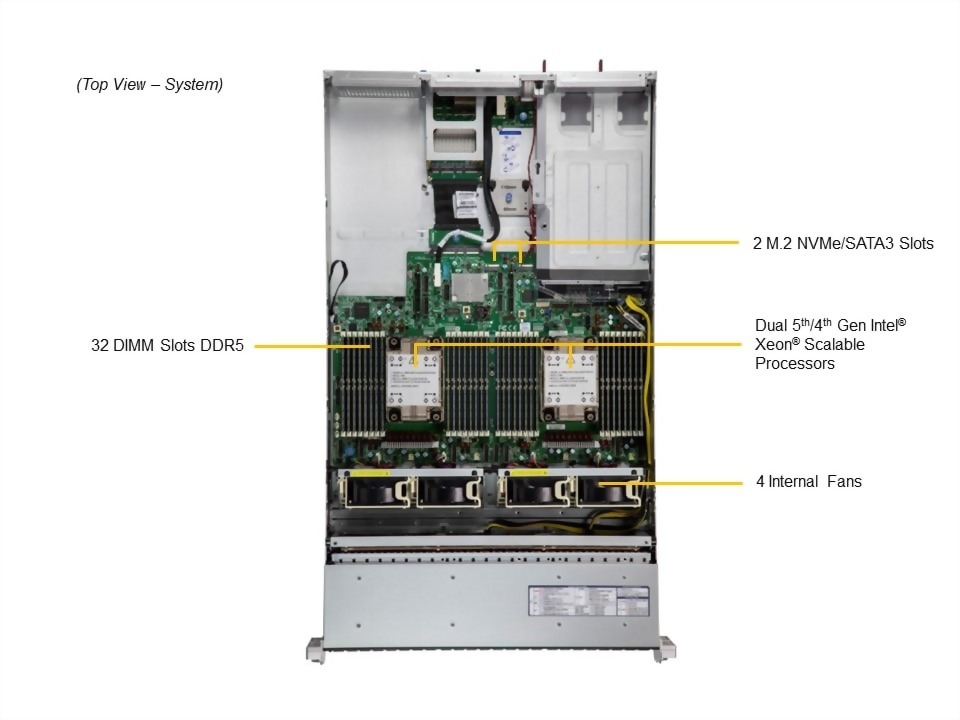

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
-
32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
-
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for up to 4 double-width or 8 x8 single-width GPU/Accelerator cards
-
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
-
8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 8x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
-
4 heavy duty hot-swap fans with optimal fan speed control
- Virtualization
- AI Inference and Machine Learning
- Enterprise Server
- Software-defined Storage
- Cloud Computing
