Product SKUs
|
|

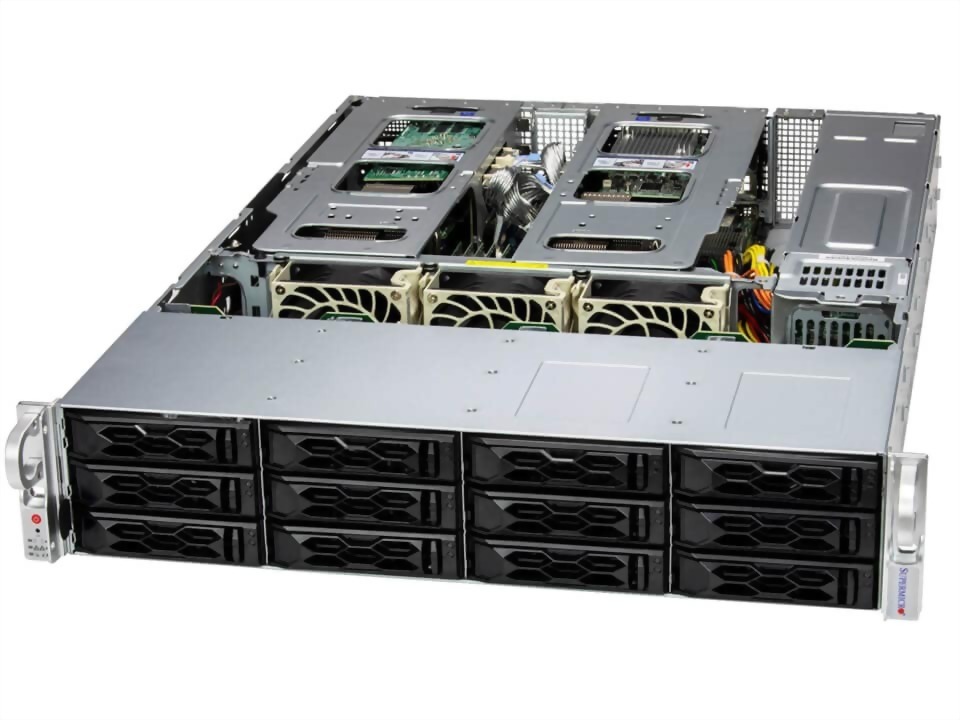

SYS-621C-TN12R
|
|
Motherboard
|
|
Super X13DDW-A
|
|
Processor
|
|
CPU
|
|
|
Core Count
|
-
Up to 64C/128T; Up to 112.5MB Cache per CPU
|
|
Note
|
-
Supports up to 350W TDP CPUs (Air Cooled)*
-
*Air Cooled CPUs with TDP over 270W only supported under specific conditions. Contact a Supermicro representative for details.
|
|
GPU
|
|
Max GPU Count
|
-
Up to 2 double-width or 6 single-width GPUs
|
|
Supported GPU
|
-
NVIDIA PCIe: H100, H100 NVL, A2, L4, L40, L40S, RTX A4000, RTX A4500, RTX A5000, RTX A6000
-
Intel PCIe: Intel Data Center GPU Flex 140, Intel Data Center GPU Flex 170
-
View GPU Options
|
|
Certification
|
|
|
System Memory
|
|
Memory
|
-
Slot Count: 16 DIMM slots
-
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
-
View Memory Options
|
|
Memory Voltage
|
|
|
On-Board Devices
|
|
SATA
|
-
SATA (6Gbps) ; RAID 0/1/5/10 support
|
|
NVMe
|
-
NVMe; RAID 0/1/5/10 support(VROC HW key required)
-
View NVMe Options
|
|
Network Connectivity
|
|
|
Input / Output
|
|
LAN
|
-
1 RJ45 1 GbE Dedicated BMC LAN port
|
|
USB
|
-
2 USB 3.2 Gen1 Type-A ports(rear)
|
|
Video
|
|
|
Serial
|
|
|
TPM
|
|
|
System BIOS
|
|
BIOS Type
|
|
|
Management
|
|
Software
|
|
|
Power configurations
|
-
ACPI/APM Power Management
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
-
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
|
Features
|
-
Cryptographically Signed Firmware
-
Secure Boot
-
Secure Firmware Updates
-
Automatic Firmware Recovery
-
Supply Chain Security: Remote Attestation
-
Runtime BMC Protections
-
System Lockdown
|
|
PC Health Monitoring
|
|
CPU
|
-
8 Phase-switching voltage regulator
-
Monitors for CPU Cores, Chipset Voltages, Memory.
|
|
FAN
|
-
Fans with tachometer monitoring
-
Pulse Width Modulated (PWM) fan connectors
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for fan connectors
|
|
|
|
Chassis
|
|
Form Factor
|
|
|
Model
|
|
|
Dimensions and Weight
|
|
Height
|
|
|
Width
|
|
|
Depth
|
|
|
Package
|
-
11.4" (H) x 26.7" (W) x 34.5" (D)
|
|
Weight
|
-
Gross Weight: 59 lbs (26.76 kg)
-
Net Weight: 33 lbs (15 kg)
|
|
Available Color
|
-
Black front & sliver body
|
|

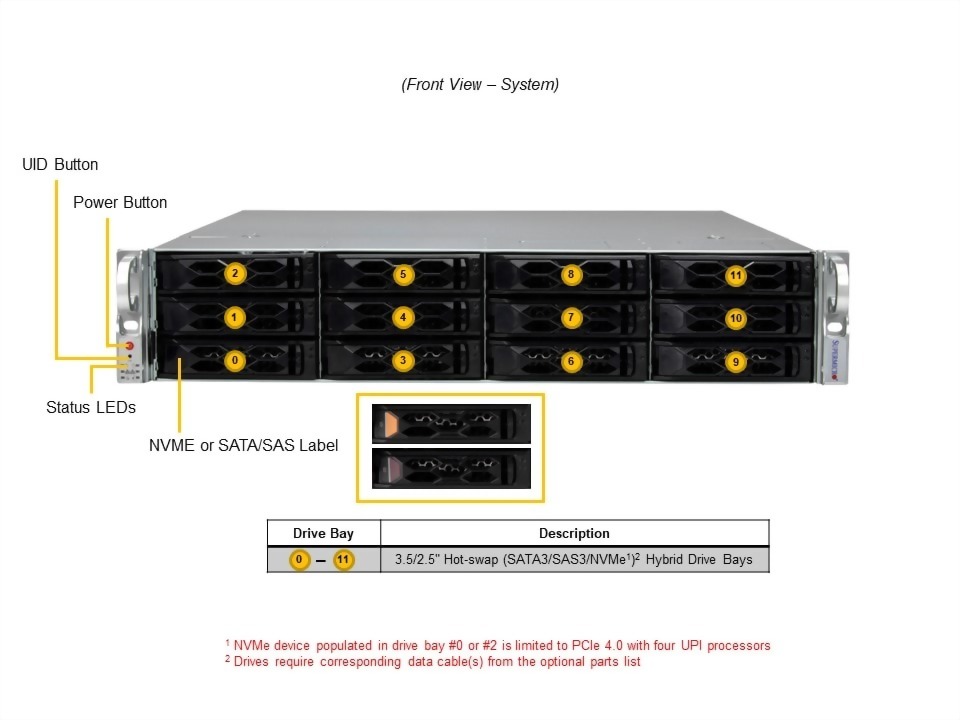

Front Panel
|
|
Buttons
|
-
Power On/Off
-
Universal Information (UID)
|
|
LED
|
-
Drive activity
-
Network activity
-
Power status
-
Universal Information (UID)
|
|

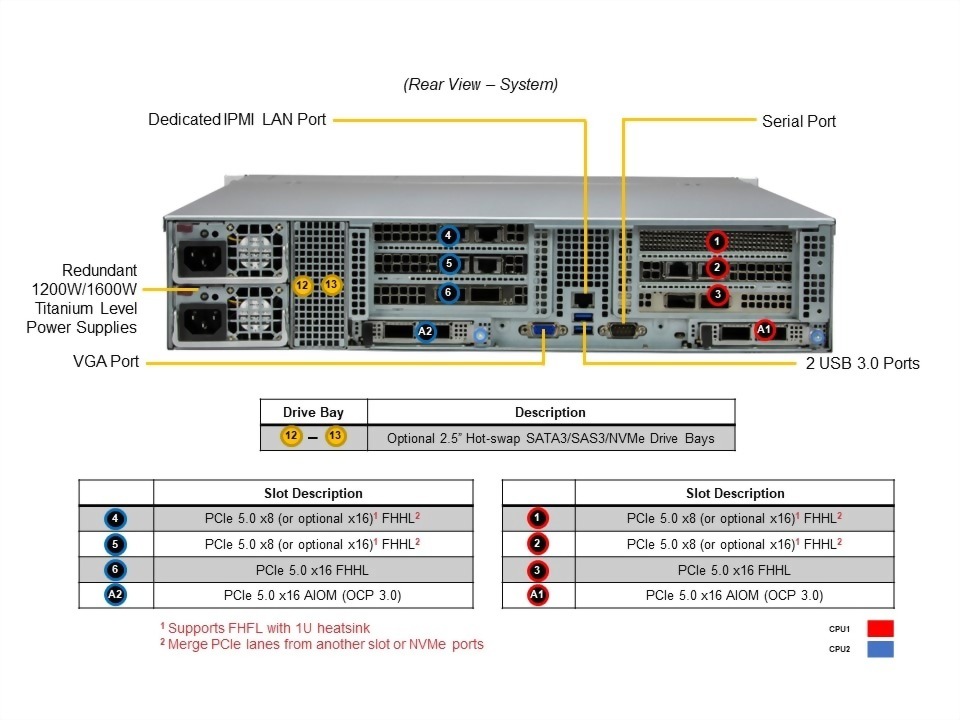

Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
-
Default
-
4 PCIe 5.0 x8 (in x16) FHFL slots
-
2 PCIe 5.0 x16 (in x16) FHHL slots
-
2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)
-
Option A
-
2 PCIe 5.0 x16 (in x16) FHFL slots
-
2 PCIe 5.0 x16 (in x16) FHHL slots
-
2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)
-
Option B
-
4 PCIe 5.0 x16 (in x16) FHFL slots
-
2 PCIe 5.0 x16 (in x16) FHHL slots
-
2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)
-
Option C
-
2 PCIe 5.0 x16 (in x16) FHFL double-width slots
-
2 PCIe 5.0 x16 (in x16) FHHL slots
-
2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)
...
-
View AOC Options
|
|
CXL Support
|
-
Up to 2 CXL 1.1 x16/x8 Type 2/Type 3 devices
|
|
Drive Bays / Storage
|
|
Drive Bays Configuration
|
-
Default: Total 12 bays
-
12 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays
-
Option A: Total 12 bays
-
12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
-
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
-
View NVMe Options
-
View Drive Options
|
|
M.2
|
-
2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID)
-
View M.2 Options
|
|
System Cooling
|
|
Fans
|
-
Up to 3x 8cm heavy duty fans with optimal fan speed control
|
|
Air Shroud
|
|
|
Power Supply
|
|
|
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
|
|
Dimension (WxHxL)
|
76 x 40 x 336 mm
|
|
Input
|
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
|
|
+12V
|
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
|
|
5V SB
|
Max: 4A / Min: 0A
|
|
Output Type
|
Backplanes (gold finger)
|
|
Operating Environment
|
|
ROHS
|
|
|
Environmental Spec.
|
-
Name: A2
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
-
Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
-
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

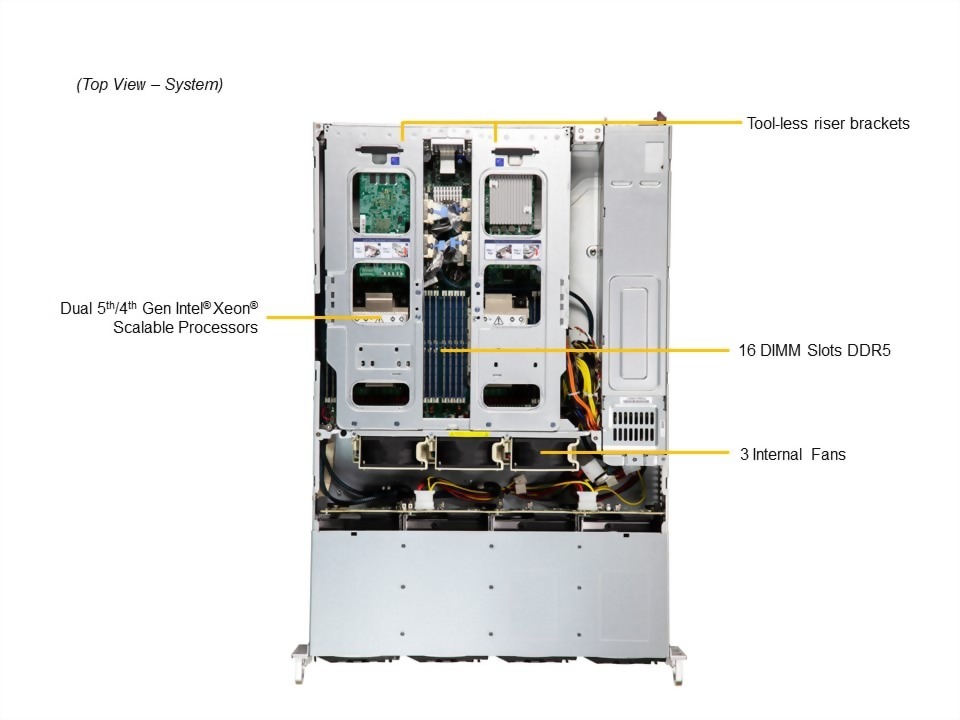

Dual sockets E (LGA-4677) 5th and 4th Gen Intel® Xeon® Scalable processors
-
16 DIMMs up to 4TB 3DS ECC DDR5-5600: RDIMM
-
4 PCIe 5.0 x8 FHHL (optional: combine into 2 PCIe 5.0 x16);
2 PCIe 5.0 x16 FHHL;
2 PCIe 5.0 x4 NVMe M.2
-
Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
-
12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
-
3 heavy duty fans with optimal fan speed control, 1 air shroud
-
1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
-
1 VGA, 1 COM, 2 USB 3.0 (rear)
-
Web Server, Firewall Application
-
Cloud Computing, Compact Server
-
CDN, Edge Nodes
-
Data Center Optimized, Value IaaS
-
DNS & Gateway Servers, Firewall Application
