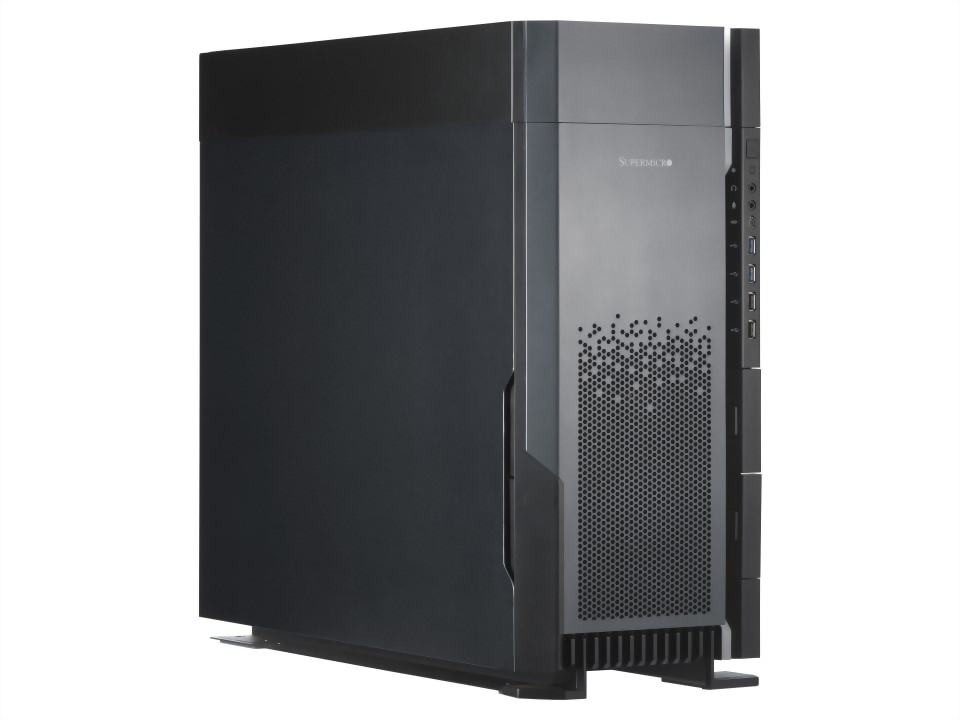

AS -5014A-TT 是 Supermicro SuperWorkstation 系列伺服器等級工作站,設計用於高效能專業運算、工程設計、視覺化、AI 開發與企業級創作工作流程。
本頁資料依據 Supermicro 官方產品系列與亞郁既有產品頁格式恢復建立,詳細規格與可配置選項請以原廠最新資料與實際報價規格為準。
原廠參考連結:https://www.supermicro.com/zh_tw/products/system/up_workstation/5u%20(full%20tower)/as%20-5014a-tt
|
Product SKUs
|
|
AS -5014A-TT
|
|
Motherboard
|
|
Super M12SWA-TF
|
|
Processor
|
|
CPU
|
-
Single processor(s)
-
AMD Ryzen™ Threadripper™ PRO 3000/5000 WX-Series
|
|
Core Count
|
-
Up to 64C/128T; Up to 256MB Cache
|
|
Note
|
-
Supports up to 280W TDP CPUs (Air Cooled)
-
Supports up to 280W TDP CPUs (Liquid Cooled)
|
|
GPU
|
|
Max GPU Count
|
-
Up to 1 quad-width or 2 triple-width or 4 double-width or 4 single-width GPUs
|
|
Supported GPU
|
-
NVIDIA PCIe: RTX 3090, RTX 4000 Ada Generation, RTX 4080, RTX 4090, RTX 5000 Ada, RTX 6000 Ada Generation, RTX A2000, RTX A4000, RTX A4500, RTX A5000, RTX A6000
-
NVIDIA: GeForce RTX 5080
-
AMD PCIe: Radeon Pro W6800, Radeon Pro W7500, Radeon Pro W7800
-
View GPU Options
|
|
Certification
|
|
|
System Memory
|
|
Memory
|
-
Slot Count: 8 DIMM slots
-
Max Memory (1DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
-
View Memory Options
|
|
Memory Voltage
|
|
|
On-Board Devices
|
|
Network Connectivity
|
-
1 RJ45 10GbE with Marvell® AQC113C
-
1 RJ45 1GbE with Intel® I210-AT
-
View AOC Options
|
|
IPMI
|
-
Support for Intelligent Platform Management Interface v.2.0
-
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
|
Input / Output
|
|
LAN
|
-
1 RJ45 10 GbE LAN port
-
1 RJ45 1 GbE LAN port (Intel® I210-AT) (IPMI shared on LAN port 1)
|
|
USB
|
-
2 USB 3.2 Gen1 Type-A ports(rear)
-
2 USB 3.2 Gen1 Type-A ports(front)
-
1 USB 3.2 Gen2 Type-C port(Rear)
-
5 USB 3.2 Gen2 Type-A ports(Rear)
-
2 USB 3.2 Gen2 Type-A ports(Front)
-
1 USB 3.2 Gen2 Type-C port(Front)
|
|
Video
|
|
|
Serial
|
|
|
Audio
|
|
|
TPM
|
|
|
System BIOS
|
|
BIOS Type
|
|
|
Management
|
|
Software
|
|
|
Power configurations
|
-
ACPI 6.0 Power Management
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
|
|
PC Health Monitoring
|
|
FAN
|
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment; CPU Thermal Trip Support; I²C Temperature Sensing Logic
|
|
Voltage
|
-
Monitors CPU Core Voltages, +3.3V, +12V, +3.3Vstb, +5Vstb, Vcore, Vmem
|
|
Certifications
|
|
Operating Systems
|
|
|
|
|
Chassis
|
|
Form Factor
|
-
5U (Full Tower) Rackmount
|
|
Model
|
|
|
Dimensions and Weight
|
|
Height
|
|
|
Width
|
|
|
Depth
|
|
|
Package
|
-
27.8" (H) x 14.6" (W) x 28.5" (D)
|
|
Weight
|
-
Gross Weight: 39 lbs (17.74 kg)
-
Net Weight: 20 lbs (14.9 kg)
|
|
Available Color
|
|
|
Front Panel
|
|
Buttons
|
-
LED light bar ON/OFF
-
Power On/Off button
|
|
LED
|
|
|
Port
|
-
Audio Jacks
-
USB 2.0
-
USB 3.0 Gen 1-Type-A
-
USB 3.0 Gen 1-Type-c
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
-
Default
-
6 PCIe 4.0 x16 (in x16) FHFL slots
-
View AOC Options
|
|
M.2
|
-
4 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
|
|
Drive Bays / Storage
|
|
Drive Bays Configuration
|
-
Default: Total 6 bays
-
2 front fixed 2.5" SATA* drive bays
-
4 internal fixed 3.5" SATA* drive bays
-
(*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
-
View Drive Options
|
|
M.2
|
|
|
Peripheral Bays
|
|
|
System Cooling
|
|
Fans
|
-
Up to 1 Rear Exhaust Fan 120mm Fan(s)
-
Up to 2 Front Intake 120mm Fan(s)
|
|
Liquid Cooling
|
-
Direct to Chip (D2C) Cold Plate (optional)
|
|
Power Supply
|
|
|
1x 2000W Platinum Level (92%) power supply
|
|
Dimension (WxHxL)
|
150 x 86 x 200 mm
|
|
Input
|
100-240Vac
1200W: 100-115Vac / 50-60Hz
1500W: 115-200Vac / 50-60Hz
2000W: 200-264Vac / 50-60Hz
|
|
+12V
|
Max: 100A / Min: 0.1A (100Vac-115Vac)
Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))
Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))
Max: 125A / Min: 0.1A (115Vac-120Vac)
Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))
Max: 166.6A / Min: 0.1A (200Vac-264Vac)
|
|
5V SB
|
Max: 4A / Min: 0A
|
|
Output Type
|
24pin ATX
|
|
Operating Environment
|
|
ROHS
|
|
|
Environmental Spec.
|
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
-
Operating Relative Humidity: 8% to 90% (Non-Condensing)
-
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-
Supermicro 伺服器等級平台設計
-
支援專業工作站與高效能運算應用
-
適合長時間穩定運作的企業環境
-
可依專案需求規劃 CPU、記憶體、儲存與擴充配置
-
工程設計與模擬
-
3D 內容創作與視覺化
-
AI 開發與資料分析
-
企業級專業工作站
