Product SKUs
|
|

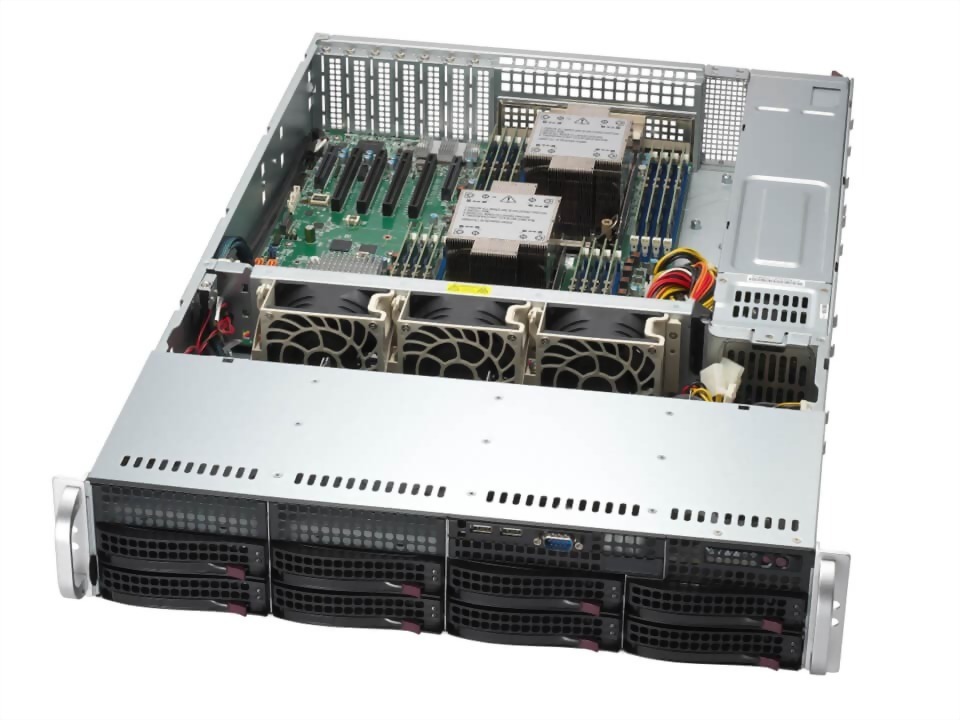

SYS-621P-TR
|
|
Motherboard
|
|
Super X13DEI
|
|
Processor
|
|
CPU
|
|
|
Note
|
-
Supports up to 300W TDP CPUs (Air Cooled)
|
|
System Memory
|
|
Memory
|
-
Slot Count: 16 DIMM slots
-
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
-
View Memory Options
|
|
Memory Voltage
|
|
|
On-Board Devices
|
|
SATA
|
|
|
Network Connectivity
|
-
2 RJ45 1GbE
-
View AOC Options
|
|
Input / Output
|
|
LAN
|
-
1 RJ45 1 GbE Dedicated BMC LAN port
|
|
USB
|
-
2 USB 2.0 ports(front)
-
4 USB 3.0 ports(rear)
|
|
Video
|
|
|
Serial
|
-
1 COM port(Rear)
-
1 COM port(Front)
|
|
DOM
|
-
2 SuperDOM (Disk on Module) ports
|
|
TPM
|
|
|
System BIOS
|
|
BIOS Type
|
-
AMI 32MB SPI Flash EEPROM
|
|
Management
|
|
Software
|
|
|
Power configurations
|
-
ACPI/APM Power Management
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
-
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
|
Features
|
-
Cryptographically Signed Firmware
-
Secure Boot
-
Secure Firmware Updates
-
Automatic Firmware Recovery
-
Supply Chain Security: Remote Attestation
-
Runtime BMC Protections
-
System Lockdown
|
|
PC Health Monitoring
|
|
CPU
|
-
Monitors for CPU Cores, Chipset Voltages, Memory
|
|
FAN
|
-
Fans with tachometer monitoring
-
Pulse Width Modulated (PWM) fan connectors
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for fan connectors
|
|
|
|
Chassis
|
|
Form Factor
|
|
|
Model
|
|
|
Dimensions and Weight
|
|
Height
|
|
|
Width
|
|
|
Depth
|
|
|
Package
|
-
11.4" (H) x 26.7" (W) x 34.5" (D)
|
|
Weight
|
-
Gross Weight: 69 lbs (31.2 kg)
-
Net Weight: 36.38 lbs (16.5 kg)
|
|
Available Color
|
|
|

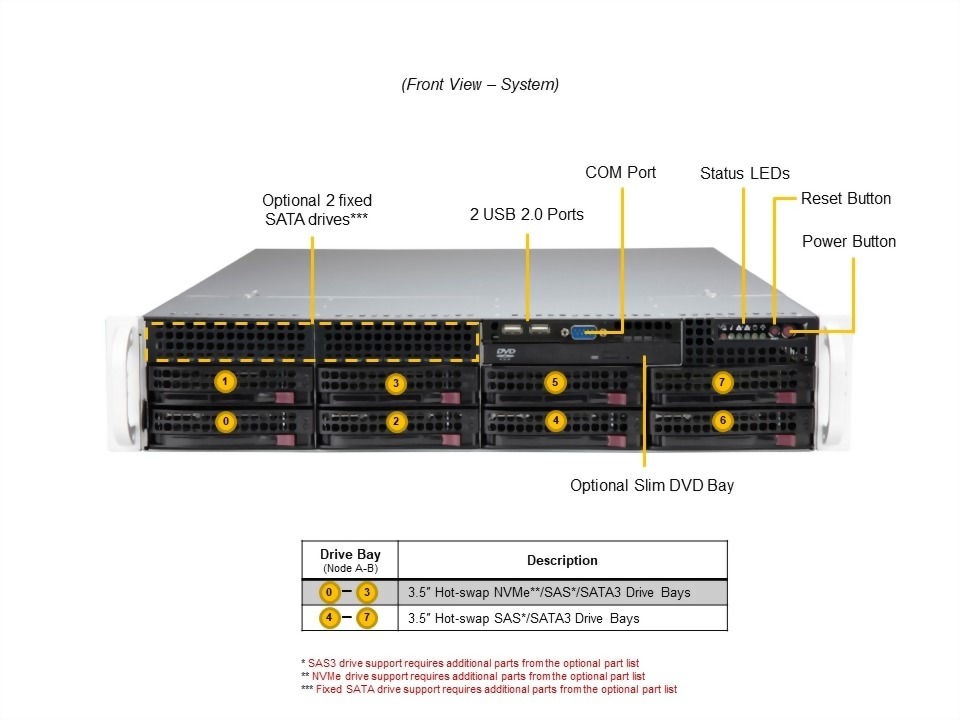

Front Panel
|
|
Buttons
|
-
Power On/Off
-
System Reset
|
|
LED
|
-
HDD activity
-
Network activity
-
Power status
-
System information (overheat/UID)
|
|

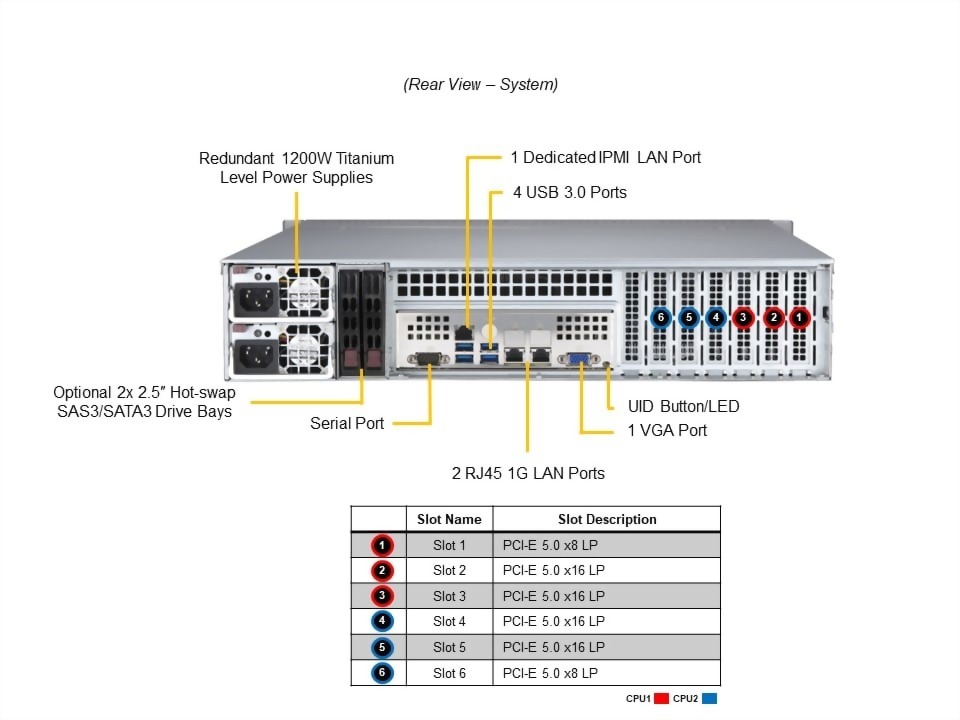

Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
-
Default
-
2 PCIe 5.0 x8 LP slots
-
4 PCIe 5.0 x16 LP slots
-
View AOC Options
|
|
M.2
|
-
2 M.2 PCIe 4.0 x2 NVMe slots (M-key)
|
|
Drive Bays / Storage
|
|
Drive Bays Configuration
|
-

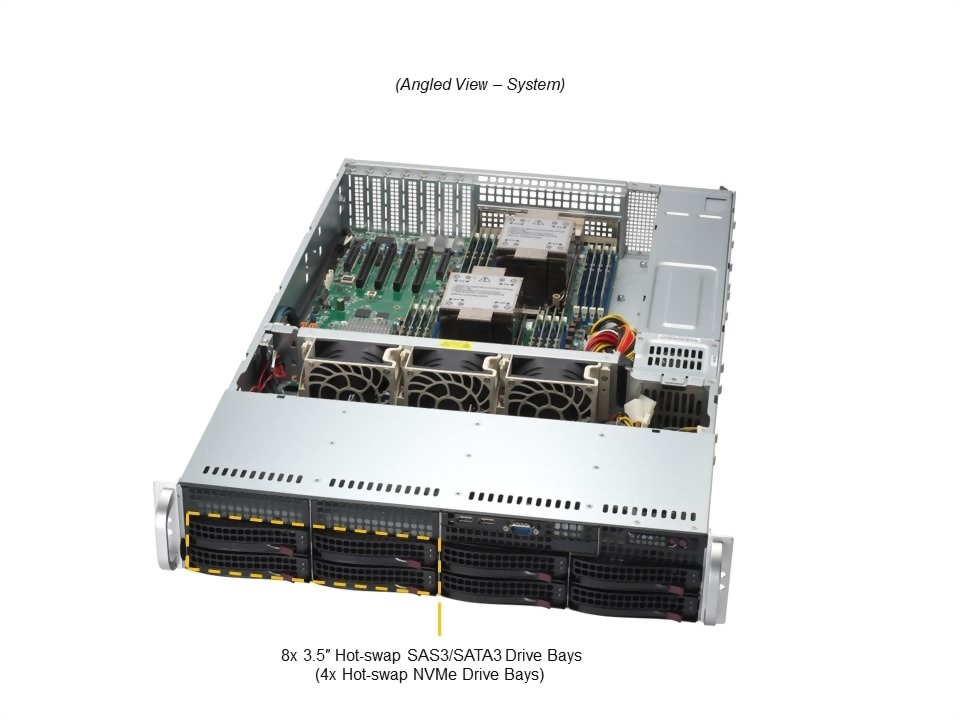

Default: Total 8 bays
-
4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays
-
4 front hot-swap 3.5" SAS*/SATA drive bays
-
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
-
View NVMe Options
-
View Drive Options
|
|
M.2
|
|
|
Peripheral Bays
|
-
1 slim DVD bay (optional)
|
|
System Cooling
|
|
Fans
|
-
Up to 3 middle 8cm Fan(s)
|
|
Power Supply
|
|
|
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
|
|
Dimension (WxHxL)
|
76 x 40 x 336 mm
|
|
Input
|
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
|
|
+12V
|
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
|
|
5V SB
|
Max: 4A / Min: 0A
|
|
Output Type
|
Backplanes (gold finger)
|
|
Operating Environment
|
|
ROHS
|
|
|
Environmental Spec.
|
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
-
Operating Relative Humidity: 8% to 80% (non-condensing)
-
Non-operating Relative Humidity: 8% to 90% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

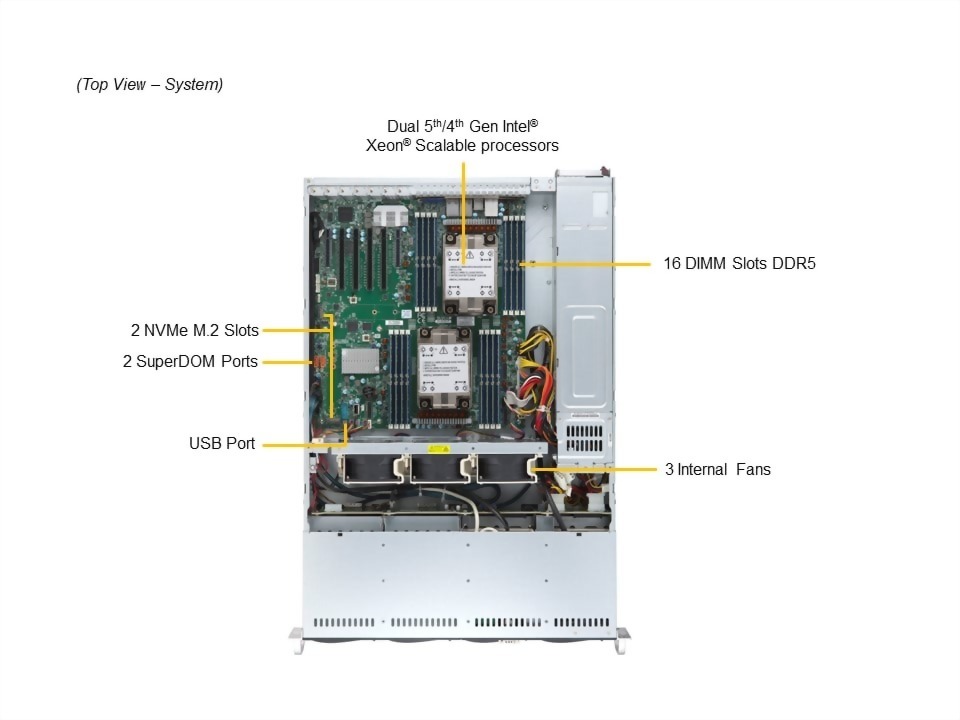

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
-
16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
-
4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
-
1200W Redundant Titanium level Power Supplies
-
Virtualization
-
Application and data serving
-
Enterprise Server
-
Compute Intensive Applications
