Product SKUs
|
|
AS -2115HS-TNR
|
|
AS -2115HS-TNR-01-G2 Gold Series version with pre-configured components
|
|
Motherboard
|
|
Super H13SSH
|
|
Processor
|
|
CPU
|
|
|
Core Count
|
|
|
Note
|
-
Supports up to 500W TDP CPUs *
-
*Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
|
|
GPU
|
|
Max GPU Count
|
-
Up to 2 double-width GPUs
|
|
Supported GPU
|
|
|
CPU-GPU Interconnect
|
-
PCIe 5.0 x16 CPU-to-GPU Interconnect
|
|
GPU-GPU Interconnect
|
|
|
System Memory
|
|
Memory
|
-
Slot Count: 24 DIMM slots
-
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
-
Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
-
Max Memory (1DPC): Up to 3TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
-
Max Memory (2DPC): Up to 6TB 4400MT/s ECC DDR5 1R RDIMM (AMD EPYC™ 9005 Series Processor)
-
Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 2R RDIMM (AMD EPYC™ 9005 Series Processor)
-
View Memory Options
|
|
Memory Voltage
|
|
|
On-Board Devices
|
|
Network Connectivity
|
|
|
Input / Output
|
|
LAN
|
-
1 RJ45 1 GbE Dedicated BMC LAN port
|
|
USB
|
|
|
Video
|
|
|
System BIOS
|
|
BIOS Type
|
-
AMI 32MB SPI Flash EEPROM
|
|
BIOS Features
|
-
ACPI 6.4
-
Plug and Play (PnP)
-
SMBIOS 3.5 or later
-
UEFI 2.8
-
USB Keyboard support
|
|
Management
|
|
Software
|
|
|
Power configurations
|
-
ACPI Power Management
-
Power-on mode control for AC power loss recovery
-
Power button override mechanism,
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
-
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
|
Features
|
-
Cryptographically Signed Firmware
-
Secure Boot
-
Secure Firmware Updates
-
Automatic Firmware Recovery
-
Supply Chain Security: Remote Attestation
-
Runtime BMC Protections
-
System Lockdown
|
|
PC Health Monitoring
|
|
FAN
|
-
Fans with tachometer monitoring
-
Pulse Width Modulated (PWM) fan connectors
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for fan connectors
|
|
Voltage
|
-
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
|
|
|
|
Chassis
|
|
Form Factor
|
|
|
Model
|
|
|
Dimensions and Weight
|
|
Height
|
|
|
Width
|
|
|
Depth
|
|
|
Package
|
-
10.4" (H) x 23.8" (W) x 43.6" (D)
|
|
Weight
|
-
Gross Weight: 72 lbs (32.7 kg)
-
Net Weight: 39 lbs (17.7 kg)
|
|
Available Color
|
-
Black front & silver body
|
|
Front Panel
|
|
Buttons
|
|
|
LED
|
-
HDD activity
-
LAN1 activity
-
Power status
-
System information
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
-
Default
-
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
-
Option A*
-
1 PCIe 5.0 x16 FHFL double-width slot
-
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
-
Option B*
-
2 PCIe 5.0 x8 (in x16) FHFL slots
-
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
-
Option C*
-
2 PCIe 5.0 x16 FHFL double-width slots
-
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
-
Option D*
-
1 PCIe 5.0 x16 FHFL double-width slot
-
2 PCIe 5.0 x8 (in x16) FHFL slots
-
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
-
Option E*
-
4 PCIe 5.0 x8 (in x16) FHFL slots
-
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
-
Option F*
-
4 PCIe 5.0 x16 FHFL double-width slots
-
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
-
Option G*
-
3 PCIe 5.0 x16 FHFL double-width slots
-
2 PCIe 5.0 x8 (in x16) FHFL slots
-
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
-
Option H*
-
2 PCIe 5.0 x16 FHFL double-width slots
-
4 PCIe 5.0 x8 (in x16) FHFL slots
-
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
-
Option I*
-
1 PCIe 5.0 x16 FHFL double-width slot
-
6 PCIe 5.0 x8 (in x16) FHFL slots
-
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
-
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
...
-
View AOC Options
|
|
Drive Bays / Storage
|
|
Drive Bays Configuration
|
-
Default: Total 24 bays
-
24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
-
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
-
View NVMe Options
-
View Drive Options
|
|
M.2
|
-
1 M.2 PCIe 3.0 x4 NVMe slot (M-key 22110(default)/2280)
-
1 M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280)
-
View M.2 Options
|
|
System Cooling
|
|
Fans
|
-
Up to 4x 8cm heavy duty fans with optimal fan speed control
|
|
Air Shroud
|
|
|
Power Supply
|
|
|
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
|
|
Dimension (WxHxL)
|
73.5 x 40 x 265 mm
|
|
Input
|
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
|
|
+12V
|
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
|
|
12V SB
|
Max: 3.5A / Min: 0A
Max: 3.5A
|
|
Output Type
|
Backplanes (gold finger)
|
|
Operating Environment
|
|
Environmental Spec.
|
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
-
Operating Relative Humidity: 8% to 90% (non-condensing)
-
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
Environmental / Recycling
|
|
Recycle
|
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

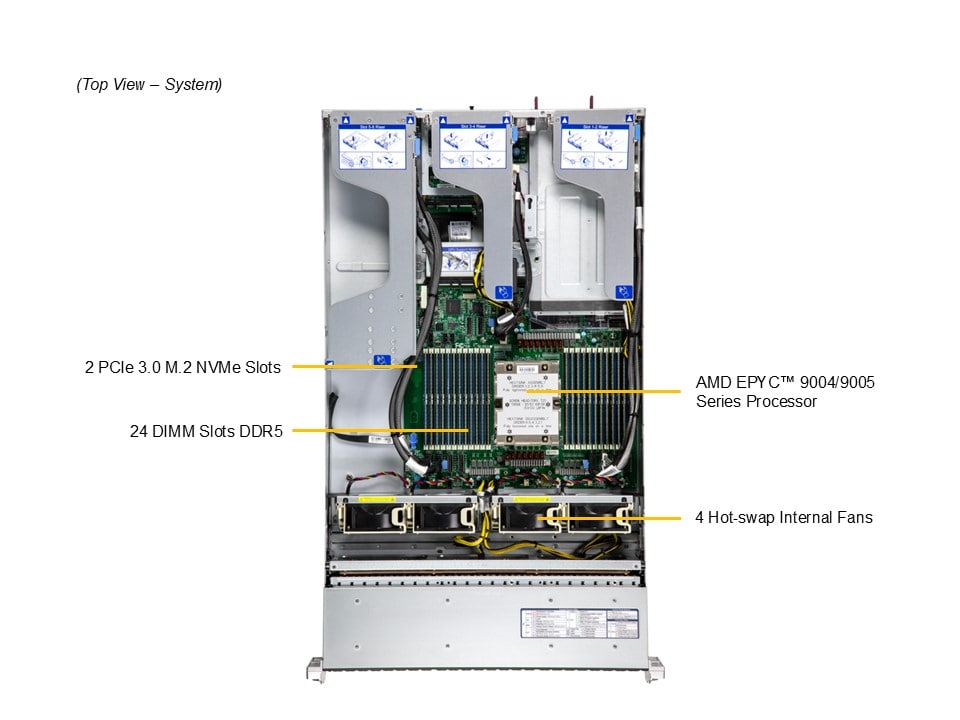

Single AMD EPYC™ 9004/9005* Series Processor
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
-
Support up to DDR5 24 DIMM slots (2DPC)
(Please check System Memory Section for detail)
-
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
-

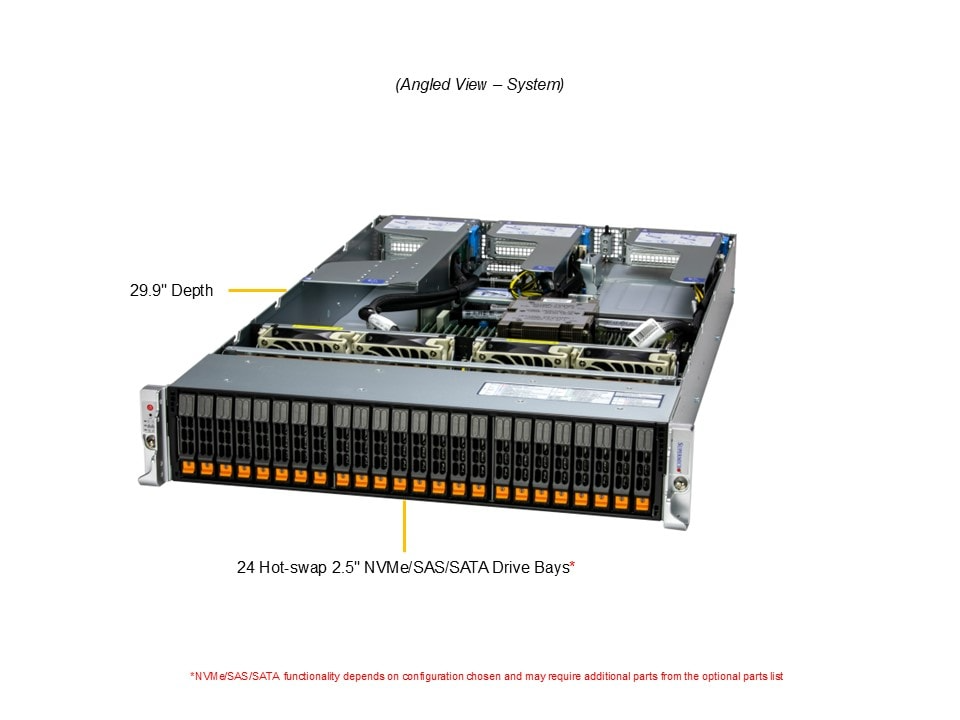

24 Hot-swap 2.5" NVMe/SATA/SAS drive bays
2 M.2 PCIe 3.0 NVMe slots
-
Dual 1600W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)
-
Virtualization
-
AI Inference and Machine Learning
-
Enterprise Server
-
Software-defined Storage
-
Cloud Computing
