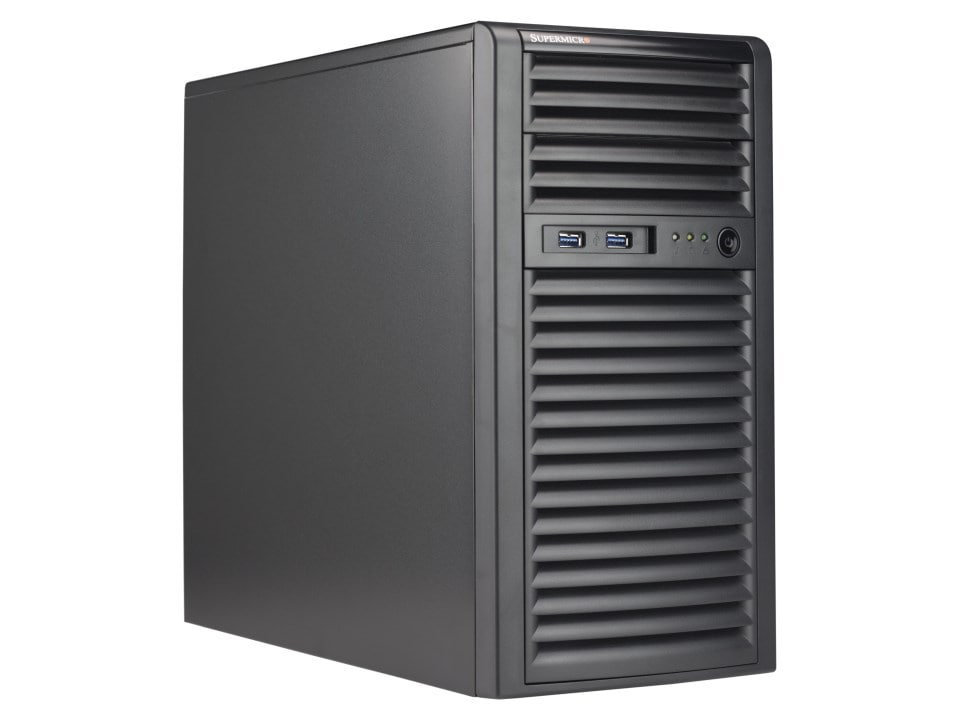

SYS-530T-I

UP mid-tower workstation for small offices and SMB

型號 : SYS-530T-I

數量 :

規格
特點

Product SKUs
SuperWorkstation SYS-530T-I

Motherboard
Super X12STL-F

Processor
CPU	Single Socket H5 (LGA-1200) Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Core Count	Up to 8C/16T; Up to 16MB Cache
Note	Supports up to 95W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 double-width GPU

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	2 RJ45 1GbE with Intel® I210-AT View AOC Options

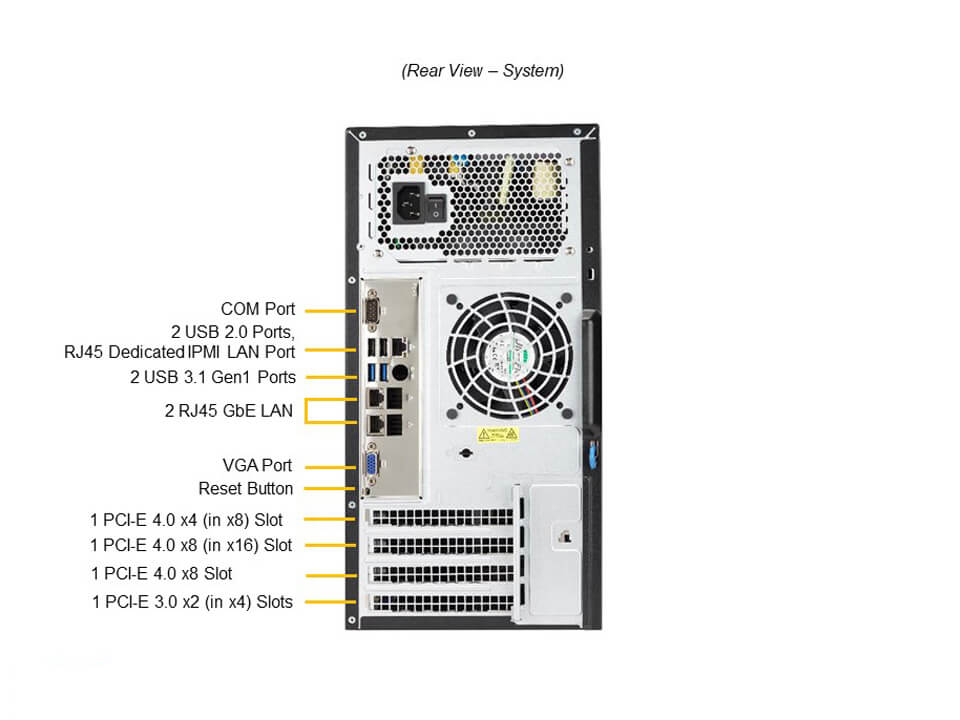

Input / Output
USB	2 USB 2.0 Type-A ports(rear)
Video	1 VGA port
TPM	1 TPM header

System BIOS
BIOS Type	AMI 256MB SPI Flash

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI 6.0 Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant

PC Health Monitoring
Voltage	+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Other Features	8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL

Chassis
Form Factor	mini-tower
Model	CSE-731I-404B

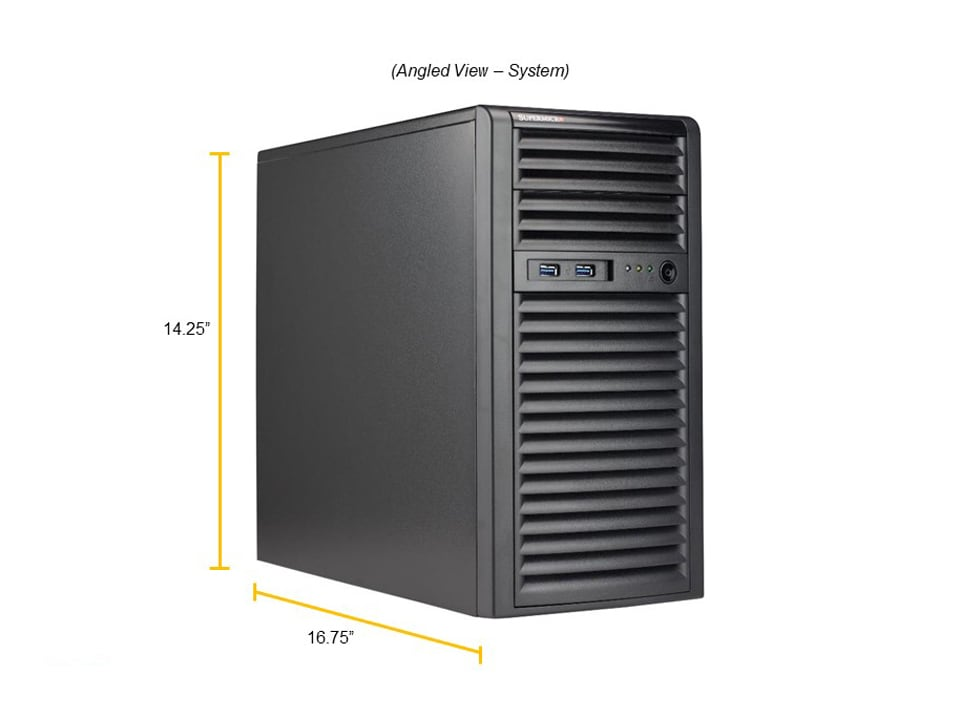

Dimensions and Weight
Height	14.25" (362 mm)
Width	7.25" (184 mm)
Depth	16.75" (425 mm)
Package	20" (H) x 11" (W) x 21" (D)
Weight	Gross Weight: 20 lbs (9.07 kg) Net Weight: 16 lbs (7.26 kg)
Available Color	Black

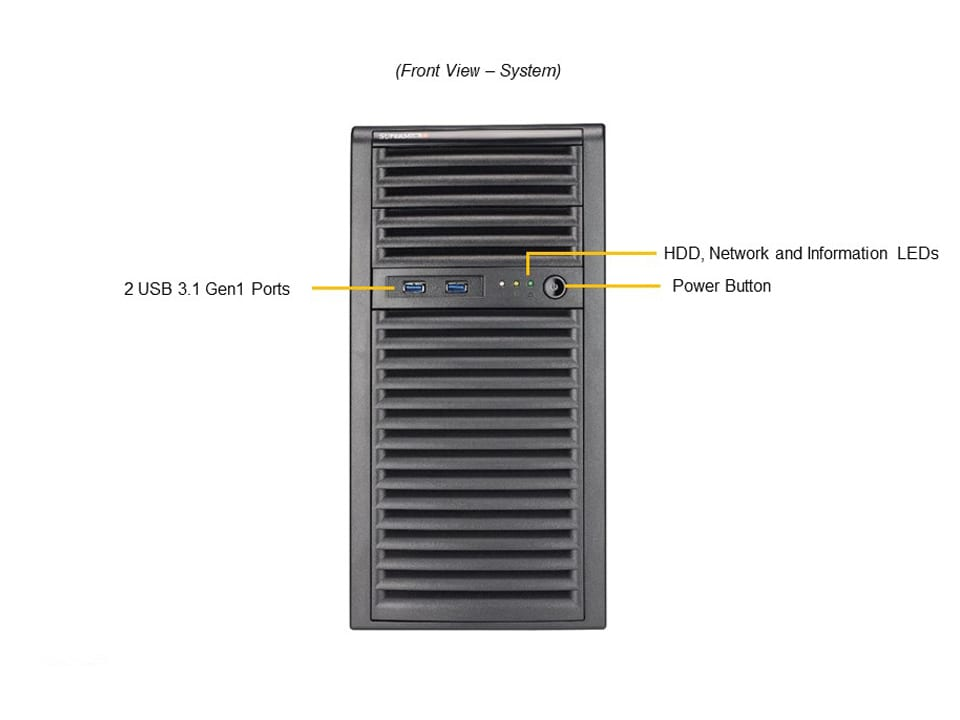

Front Panel
LED	HDD activity LED Network activity LEDs Power LED System Overheat LED
Buttons	Power On/Off button
Port	USB 3.0 Port(s)

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 4.0 x8 FHFL slots 1 PCIe 4.0 x4 FHFL slot 1 PCIe 3.0 x2 FHFL slot View AOC Options

Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays 4 internal fixed 3.5" SATA drive bays View Drive Options
M.2	1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110) View M.2 Options
Peripheral Bays	2 5.25" bays

System Cooling
Fans	Up to 1x 90mm Fan(s)

Power Supply

1x 400W Gold Level (90%) power supply

Dimension (WxHxL)	150 x 86 x 140 mm
Input	100-240Vac 400W: 100-240Vac / 50-60Hz
+12V	Max: 12.62A / Min: 0.05A (100Vac-240Vac) Max: 12.62A / Min: 0A (100Vac-240Vac)
5V SB	Max: 2.23A / Min: 0A
Output Type	24pin ATX
Certification	Gold Level

Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Supports Intel® Xeon® E-2300 Series Processors
PCIe 4.0 Support
Dual LAN ports, GbE and dedicated IPMI LAN port
9cm PWM quiet exhaust fan and optional front intake fan
400W 80PLUS Gold Power Supply

相關產品

SYS-531A-IL

型號 : SYS-531A-IL

SYS-530A-IL

型號 : SYS-530A-IL

AS-2115HV-TNRT

型號 : AS-2115HV-TNRT

SYS-531AD-I

型號 : SYS-531AD-I

SYS-531AD-I

型號 : SYS-531AD-I

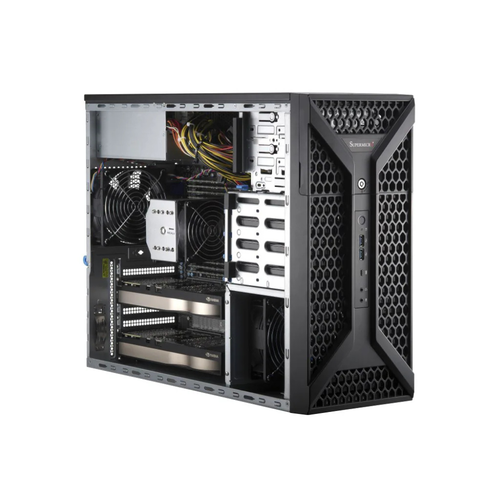

SYS-531A-I
