AS -531AW-TC 是 Supermicro SuperWorkstation 系列伺服器等級工作站,設計用於高效能專業運算、工程設計、視覺化、AI 開發與企業級創作工作流程。
本頁資料依據 Supermicro 官方產品系列與亞郁既有產品頁格式恢復建立,詳細規格與可配置選項請以原廠最新資料與實際報價規格為準。
原廠參考連結:Supermicro 官方產品頁
AS -531AW-TC Specifications
|
Product SKUs
|
|
|
A+ Workstation AS -531AW-TC
|
|
Processor
|
|
CPU
|
Single Socket sTR5 (LGA-4844) AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series Processors
|
|
Core Count
|
Up to 96C/192T; Up to 384MB Cache
|
|
System Memory
|
|
Memory
|
Slot Count: 4 DIMM slots/4 Channels Max Memory (1DPC): Up to 512GB 6400MT/s ECC DDR5 RDIMM
|
|
Memory Voltage
|
1.1V
|
|
Input / Output
|
|
LAN
|
2 RJ45 10 GBASE-T LAN ports (Broadcom® BCM57416) 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600)
|
|
USB
|
2 USB 3.2 Gen1 Type-A ports(front) 4 USB 3.2 Gen2 Type-A ports(Rear) 1 USB 3.2 Gen2 Type-C port(Rear) 1 USB 3.2 Gen2 Type-C port(Front)
|
|

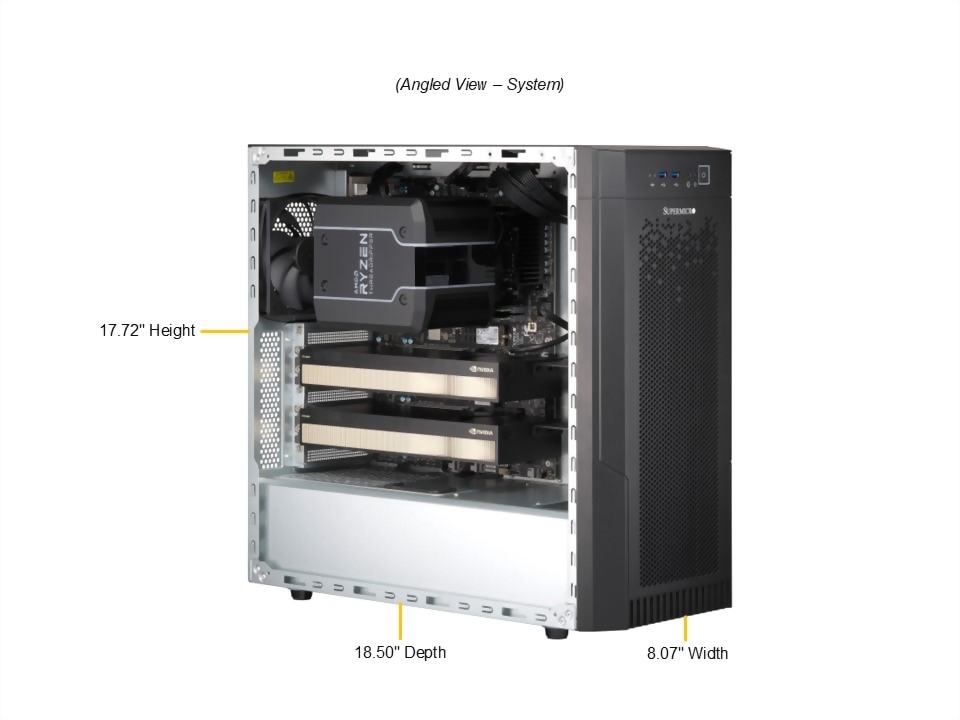

Dimensions and Weight
|
|
Height
|
17.72" (450 mm)
|
|
Width
|
8.07" (205 mm)
|
|
Drive Bays / Storage
|
|
Drive Bays Configuration
|
Default: Total 8 bays2 internal fixed 3.5" SATA* drive bays 6 internal fixed 2.5" SATA* drive bays Option A: Total 8 bays2 internal fixed 3.5" SATA drive bays 4 internal fixed…
|
|
M.2
|
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
|
|
|
|
GPU
|
|
Max GPU Count
|
Up to 1 quad-width or 2 triple-width or 2 double-width or 2 single-width GPUs
|
|
Supported GPU
|
NVIDIA PCIe: NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation…
|
|
On-Board Devices
|
|
Network Connectivity
|
2 RJ45 10GbE with Broadcom® BCM57416 1 RJ45 1GbE with ASPEED AST2600
|
|
IPMI
|
Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
|
Chassis
|
|
Form Factor
|
Mid-Tower
|
|
Model
|
CSE-GS3A-000NBP
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
Default2 PCIe 5.0 x16 (in x16) FHFL slots 2 PCIe 5.0 x8 (in x8) FHFL slots
|
|
M.2
|
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
|
|
System Cooling
|
|
Fans
|
Up to 1 Rear Exhaust Fan 120mm Fan(s) Up to 3 Front Intake 120mm Fan(s)
|
|
Liquid Cooling
|
Direct to Chip (D2C) Cold Plate (optional)
|
|
詳細規格、選配項目與相容性請以 Supermicro 原廠最新資料及亞郁實際報價規格為準。
-
Supermicro 伺服器等級平台設計
-
支援專業工作站與高效能運算應用
-
適合長時間穩定運作的企業環境
-
可依專案需求規劃 CPU、記憶體、儲存與擴充配置
-
工程設計與模擬
-
3D 內容創作與視覺化
-
AI 開發與資料分析
-
企業級專業工作站
