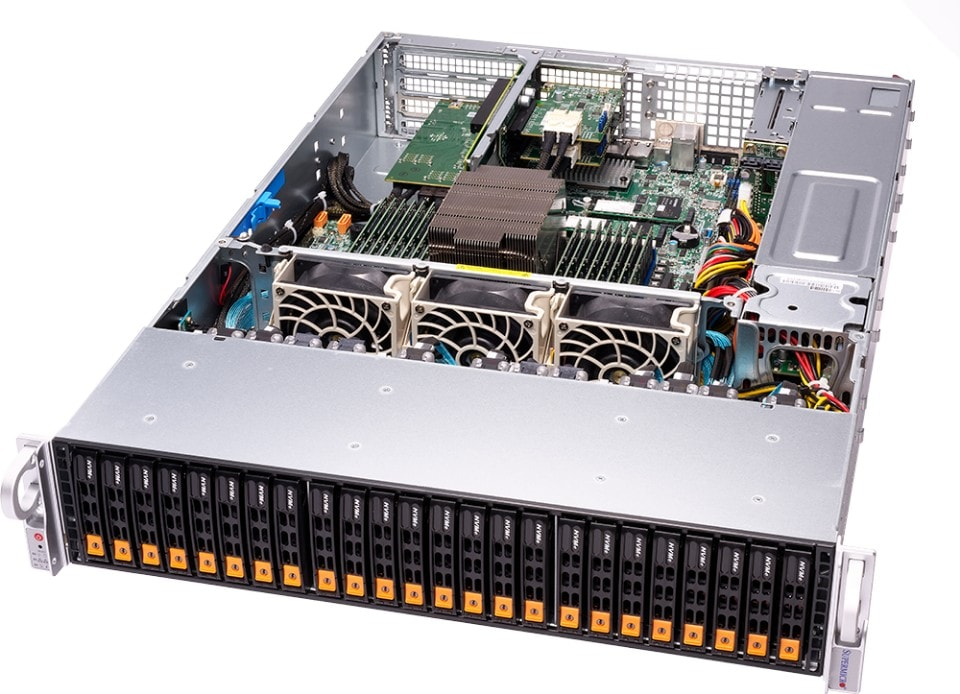

| Product SKUs | | AS -2114S-WN24RT | | Motherboard | | Super H12SSW-NTR | | Processor | | CPU | | | Note | - Supports up to 280W TDP CPUs (Air Cooled)
| | System Memory | | Memory | - Slot Count: 16 DIMM slots
- Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | - 2 RJ45 10GbE
- View AOC Options
| | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
- 2 RJ45 10 GBASE-T LAN ports
| | USB | - 5 USB 3.0 Type-A ports(Rear)
| | Video | | | DOM | - 2 SATA DOM (Disk on Module) ports
| | TPM | | | System BIOS | | BIOS Type | - AMI 256MB SPI Flash EEPROM
| | BIOS Features | - ACPI 6.3
- PCI 2.2
- Plug and Play (PnP)
- SMBIOS 3.0 or later
- USB Keyboard support
| | Management | | Software | | | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- System Lockdown
| | PC Health Monitoring | | CPU | - CPU switching voltage regulator
- Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
| | FAN | - Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
- Up to 6-fan status tachometer monitoring
- Up to six 4-pin fan headers
| | Other Features | - Chassis Intrusion Detection
- Chassis Intrusion Header
| | Temperature | - CPU thermal trip support
- I²C Temperature Sensing Logic
- Monitoring for CPU and chassis environment
- Thermal control for 6x Fan connectors
| | Certifications | | Operating Systems | |
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 11.4" (H) x 26.7" (W) x 34.5" (D)
| | Weight | - Gross Weight: 59 lbs (26.76 kg)
- Net Weight: 33 lbs (15 kg)
| | Available Color | - Black front & sliver body
| | Front Panel | | Buttons | - Power On/Off
- Universal Information (UID)
| | LED | - Drive activity
- Network activity
- Power status
- Universal Information (UID)
| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 2 PCIe 4.0 x16 FHHL slots
- View AOC Options
| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 24 bays
- 24 front hot-swap 2.5" NVMe drive bays
- View NVMe Options
| | System Cooling | | Fans | - Up to 3 heavy duty fans with optimal fan speed control
| | Power Supply | | | 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 76 x 40 x 336 mm | | Input | 1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only) | | +12V | Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc) | | 5V SB | Max: 4A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | ROHS | | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-
Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
-
Up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
-
Up to 2 PCIe 4.0 x16 FH/HL slots
24 NVMe configuration (Standard) – 1 slot available
20 NVMe configuration – 2 slots available
- Virtualization
- All Flash Storage
- Cloud Computing
- Hyperconverged Storage
