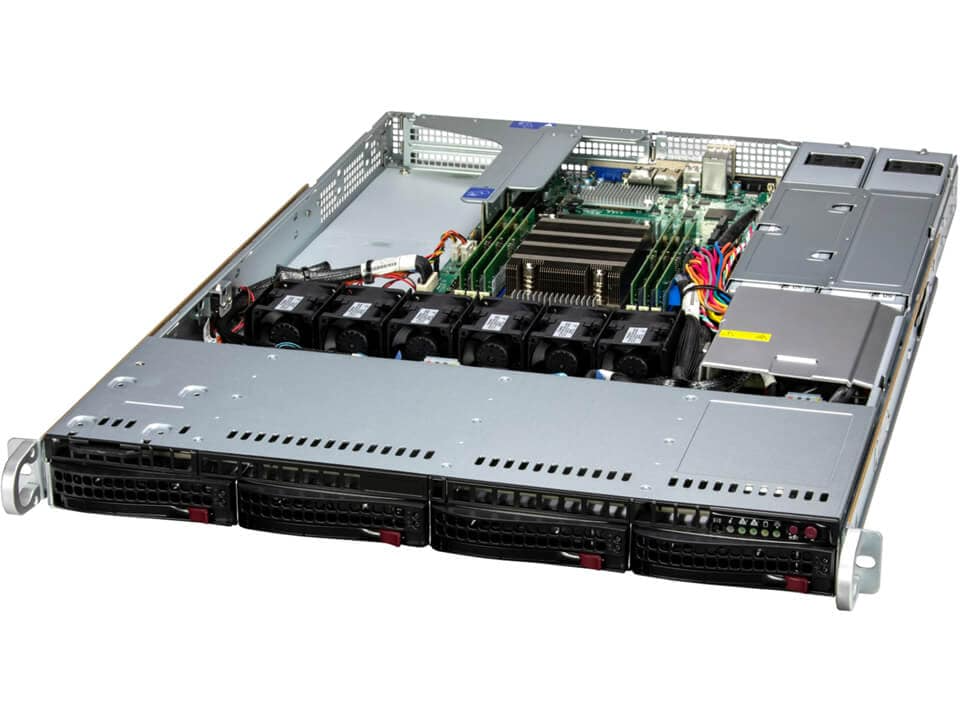

AS -1015SV-WTNRT

1U UP WIO with 4 hot-swap 3.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 slots

型號 : AS -1015SV-WTNRT

數量 :

Product SKUs
A+ Server AS -1015SV-WTNRT

Motherboard
Super H13SVW-NT

Processor
CPU	Single processor(s) AMD EPYC™ 8004 Series Processor
Core Count	Up to 64C/128T
Note	Supports up to 225W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 1 double-width or 2 single-width GPUs
Supported GPU	NVIDIA PCIe: A2, L4, L40 View GPU Options

System Memory
Memory	Slot Count: 6 DIMM slots Max Memory (1DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	System on Chip
Network Connectivity	2 RJ45 10GBASE-T with Broadcom® BCM57416 View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports
USB	4 ports(rear)
Video	1 VGA port
Serial	1 COM port(Rear)
TPM	1 TPM Onboard/port 80

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New!
Power configurations	1U redundant 800/860W Titanium AC power supply

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Dimensions and Weight
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	25.6" (650 mm)
Package	8.5" (H) x 23.5" (W) x 33.7" (D)
Weight	Gross Weight: 34.5 lbs (15.46 kg) Net Weight: 21.5 lbs (9.75 kg)
Available Color	Black

Front Panel
Buttons	Power On/Off button System Reset button Unit Identification (UID) button
LED	Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED Unit Identification (UID) LED

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 LP slot View AOC Options

Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays 4 front hot-swap 3.5" NVMe/SAS/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables) View NVMe Options View Drive Options
M.2	2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) View M.2 Options

System Cooling
Fans	Up to 6 Heavy duty counter-rotating 40x40x56mm Fan(s)
Air Shroud	1 Air Shroud

Power Supply

2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	54.5 x 40.25 x 322 mm
Input	800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz
+12V	Max: 66.67A / Min: 0A (100Vac-127Vac) Max: 71.67A / Min: 0A (Vdc-240Vdc) Max: 71.67A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)

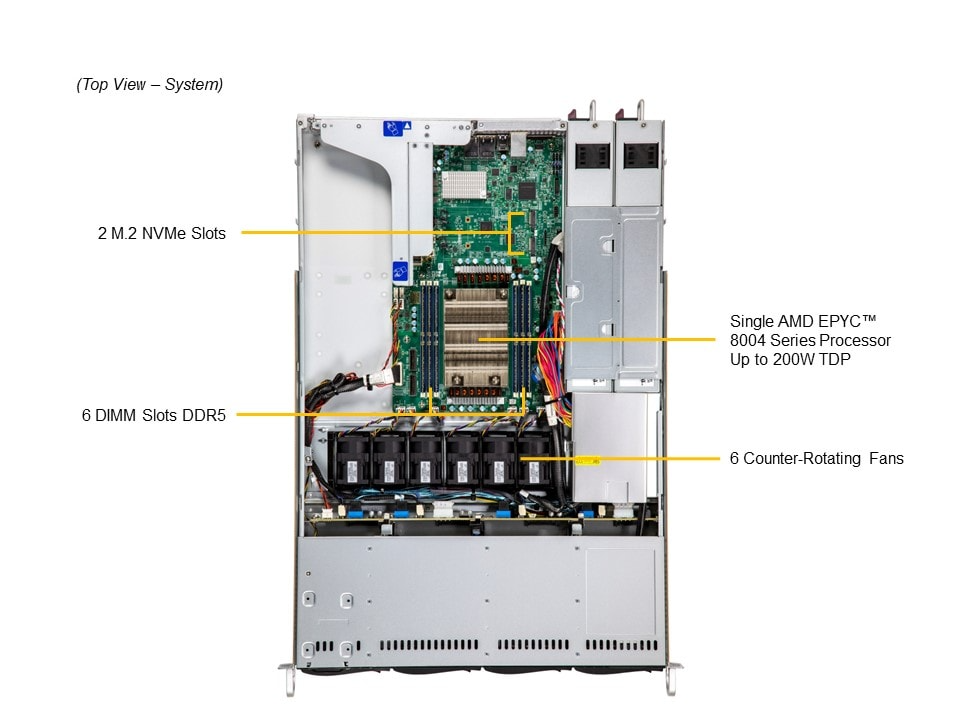

Single Socket AMD EPYC™ 8004 Series Processor
6 DIMM slots, DDR5-4800MHz memory, support up to 768GB
2 PCIe 5.0 x16 FHFL;
1 PCIe 5.0 x16 LP
Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
4 hot-swap 3.5" drive bays support SATA(default)/NVMe/SAS drives (optional cables or SAS controller card for NVMe and SAS drive bays)
Dual 860W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)
