SCB1000.1200 嵌入式智慧城市箱

Industrial Embedded Smart City Box
型號 : scb1000 1200

The SCB1000/1200 series are fully integrated communication systems within an IP67 enclosure for Smart City and Industrial Internet of Thing (IIoT) applications. The Gigabit 802.3bt ultra PoE /802.3at PoE+ ports, Fiber SFP, Serial, Voice, DI, DO are protected by weatherproof cable gland connectors. It is greatly flexible with different power in/out sources, internal USB, SD , Ethernet and mPCIe socket for wireless expansion. Comparing with traditional cabinets, the SCB1000/1200 series save you a lot of time and cost for system integration. The embedded MQTT and RESTful API enable public cloud integration such as AWS or Azure. The private cloud platform ThingsMaster can also be deployed for instant and secured access to for surveillance and IIoT management. With the versatile AC/DC/Solar power sources, you can easily install the box on roadside power tower, street light or wall mount on the wall/roof in the field.

► IP67 Smart City Box for City/Airport/Tunnel Surveillance

► WoMaster's Intelligent Control Room Solutions with Product Demo

► How to install and wire DI/DO on SCB

► How to install RJ12 audio cable with a speaker on SCB

- Full system integration with IP67 enclosure for outdoor applications
- 4 high power PoE with management to connect to cameras
- 1 Giga WAN port for network, USB for configuration and SD slot for storage
- Audio interface to connect the Speaker and Microphone
- Fiber uplink with ERPS Ring support to provide network resilience
- LTE and WiFi support as hot spot
- local RS232 interface and Lora support for IoT devices
- Flexibility power input source including AC or DC power input, two external 24V DC output and optional PV input for solar panels
60W Ultra PoE for Digital Signage / Smart Street Lighting
.2 Giga Ultra PoE 802.3bt Ports with 60W/per port
.2 Giga PoE+ 802.3at Ports with 30W/per port
.1 internal PoE+ 802.3at WAN port for VPN, NAT, Routing Expansion
.PoE Enable/Disable, Budget Control, Port Control, Port Priority, PD Alive Check and port status
.Max. 240W power budget for PoE & DC Output
Weatherproof IP67 Enclosure and cable gland connectors
.Four Giga PoE ports
.Two 100/1000M Fiber SFP slots
SCB1200 only
.One RS232/422/485 RJ-45 port
.One Audio RJ12 port
.Two Digital Inputs
.Two Relay Outputs
Weatherproof M12 connector
- Two DC24V outputs
- One AC100~240V Input
Internal One RS232/422/485 DB9 port
Internal One USB, and One SD socket for Storage
VoIP Voice Broadcast
.RTSP voice streaming Server/Client for VoIP broadcast
.1 to N VoIP broadcasting
Optional Basic Solar Kit
.54V Battery Charge Control board for Solar power input
.Typical 48V/2.5AH Battery for power shortage
.Management Interface for Battery Status
Optional Wireless Expansion
.mPCIe & SIM socket for wireless expansion
.SCB LTE Module and Antenna Kit
- LTE Cat.4/6 Cellular Module
- LTE+GPS Antenna on the top of the box
- 300M(Cat.6)/150M(Cat.4) Downlink, 50M Uplink, FDD/TDD-LTE
.SCB Industrial WLAN Module
- N-Type Antenna Socket on the top of the box
- 5G/2.4G Qualcomm IEEE 802.11ac 2T2R MIMO, up to 866Mbps
- WLAN AP/CPE mode

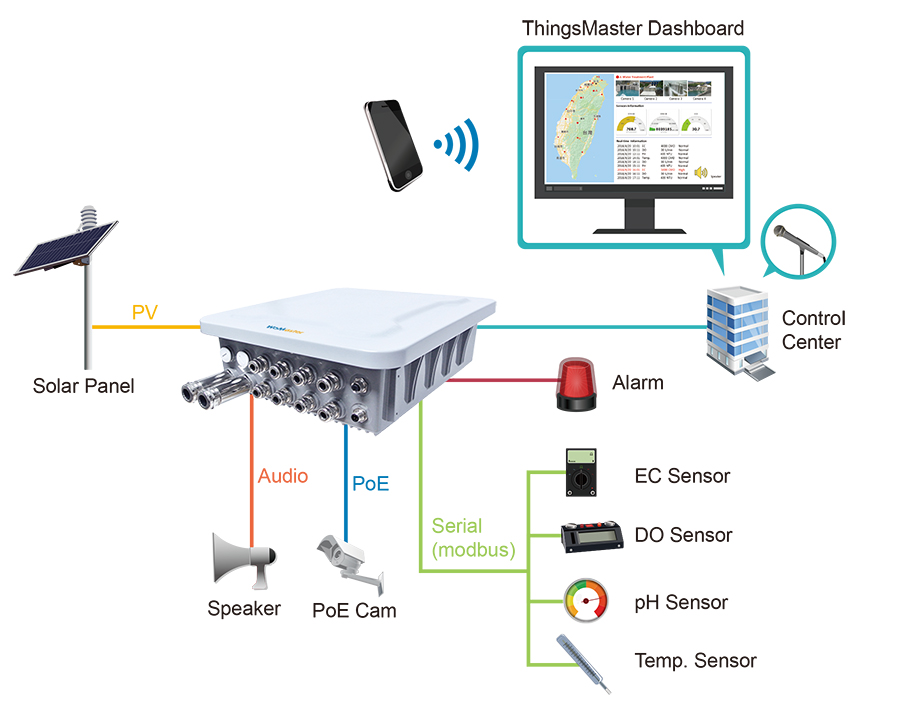

  • Serial: It's able to connect with various water sensors, SCB supports industrial Modbus communication protocol which provides the efficiency of connectivity.
    - The used Sensors as follows:
    • Electrical Conductivity sensor
    • Dissolved Oxygen sensor
    • pH sensor
    • Temp. sensor

  • RTSP IP camera provides the real-time image monitoring.

  • VoIP: SCB provides an audio interface and can connect to a speaker. When a suspicious person or abnormality is discovered, it can be broadcasted remotely through VoIP.

  • DI / DO: Connect to an alarm, when the EC / DO / pH / Temp. over a certain value, the alarm will be triggered.
  • SCB built-in a 48V / 2.5A battery and support solar PV power input, preventing power outage.
