SSG-521E-E1CR24H 伺服器

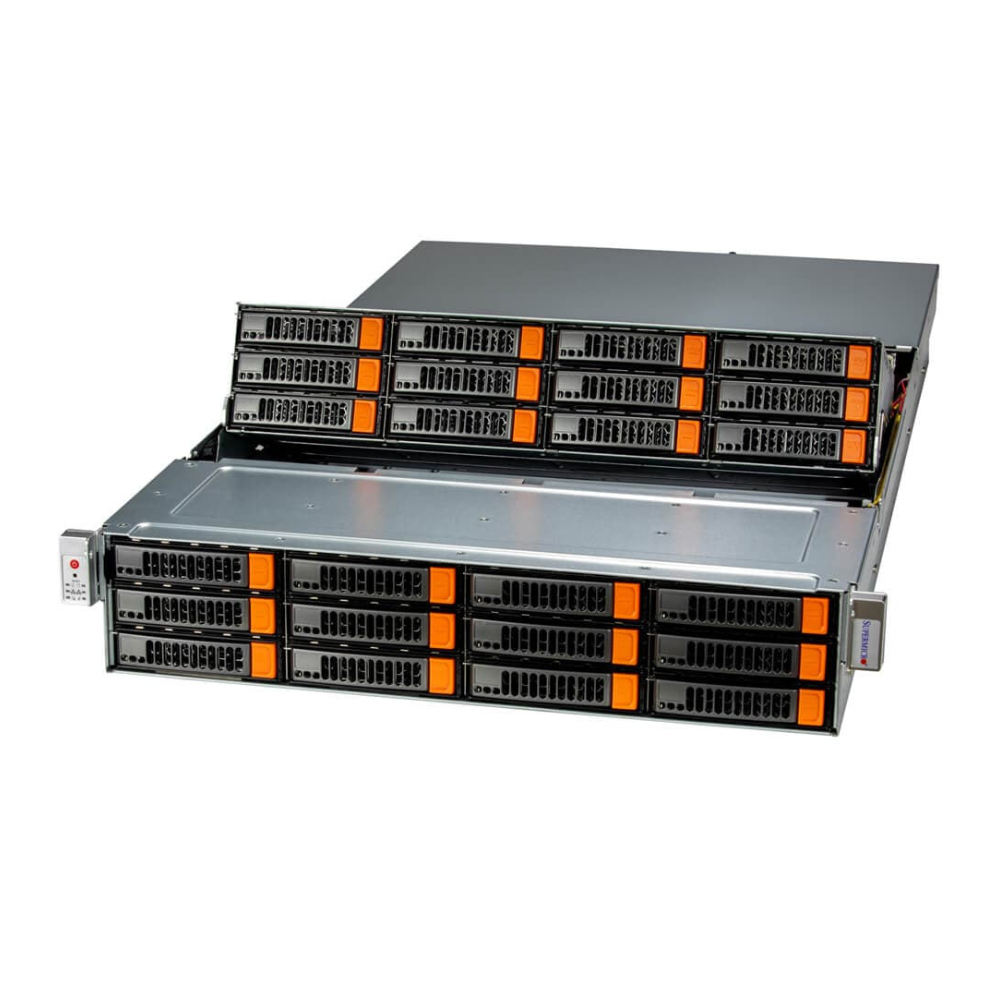

2U front/top-loading storage server with 24 hot-swap 3.5" SAS/SATA bays (SAS hardware RAID) and PCIe 5.0
- Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processor. Up to 300W TDP.
- 16 ECC DDR5-5600: LRDIMM/RDIMM
-
Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant)
Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3908 controller by default) - Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node

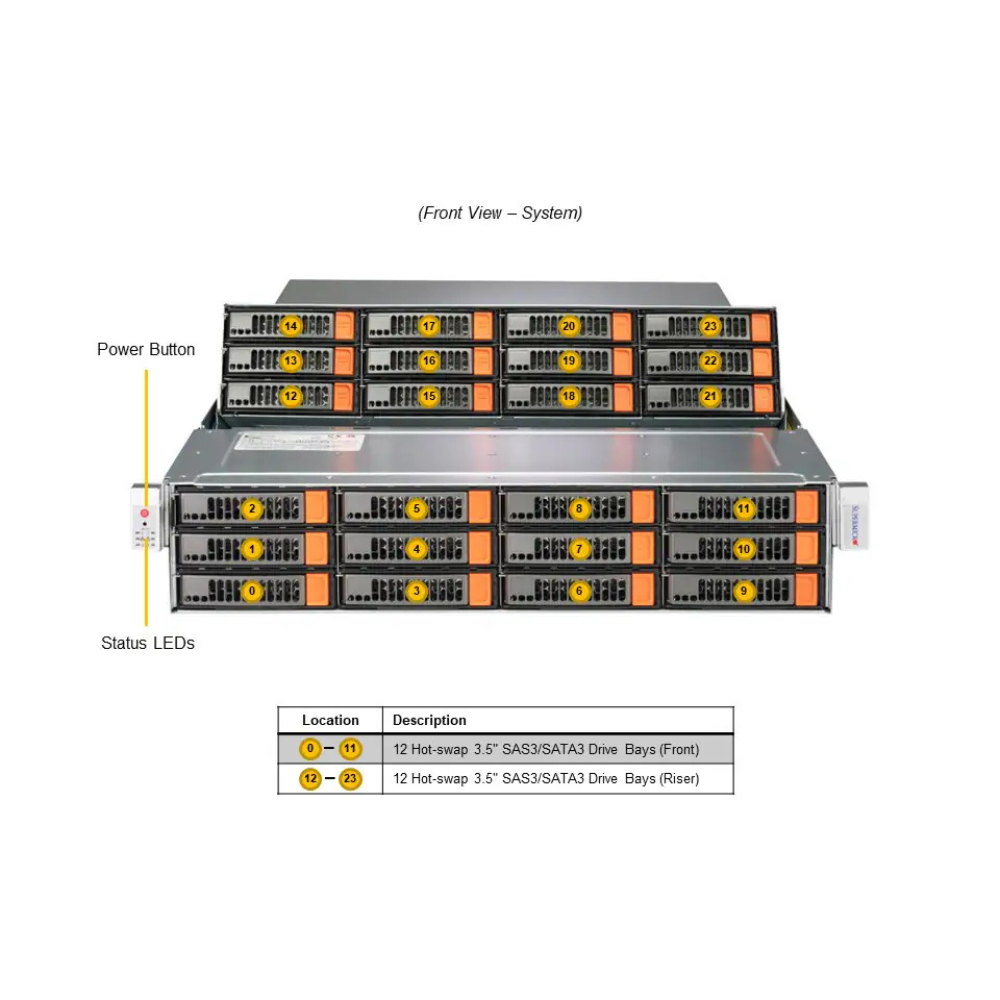

- 24 3.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe/SATA M.2 (form factor: 2280)
- 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1600W Redundant Power Supplies Titanium Level (96%)
- HW RAID support via Broadcom® 3908
