WR312G-LTE 工業級4G LTE閘道器
Industrial Secure Cellular Router,
2GbE+2COM,
LTE-E or LTE-U
2GbE+2COM,
LTE-E or LTE-U
型號 :
wr312g lte
Innovative industrial secure LTE router WR312G Series is designed for IIoT applications by single WR312G high-speed LTE routing. Two RS232/422/485 ports are able to connect to local serial devices. The 3T3R radio can deliver up to 1.3Gbps high throughput. The USB design helps easy field installation. The SD card can store application programs or diagnostic log file. The support of OpenVPN and IPsec provides security to the gateway.
► WoMaster's industrial secured and rugged LTE router for IIoT WR302G, WR312G, WR322G Series
| Technology | |
| Standard | 3GPP Release 11/12 Long Term Evolution (LTE), fallback 3GPP Release 7,8,9 for HSPA/UMTS |
| IEEE 802.11ac wireless local area network (WLAN), Backward support 802.11n/g/a/b Wireless LAN | |
| IEEE 802.3 10Base-T Ethernet | |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet copper | |
| IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP) | |
| IEEE 802.1Q for VLAN | |
| Interface | |
| Ethernet Port | 2 x 10/100/1000MBase-T RJ45, Auto Negotiation, Auto-MDI/MDIX |
| System LED |
1 x PWR: Green On 1 x SYS: Ready: Green On, Firmware Updating: Green Blinking 1 x DO: Red On 2 x Ethernet Ports: Link: Green On, Activity: Green Blinking 2 x Serial Ports (Serial 1/2, by model): Activity: Green Blinking 3 x Radio (Ra, Rb, Rc): Radio status Ra: SIM detected: Green On, SIM not inserted: Off Rb: 2/3G connection: Green On, Not 2/3G connection: Off Rc: 4G connection: Green On, Note 4G connection: Off |
| USB | 1 x USB for Configuration/Firmware Update |
| Reset | System Reset(2~6 Seconds) / Default Settings Reset (over 7 Seconds) |
| SMA Socket |
Up to 2 xRP-SMA Female LTE 2T2R: ANT1 for LTE Main, ANT2 for LTE Aux OR LTE + GPS: ANT1 for LTE Main, ANT2 for GPS |
| SIM Socket | 2 x Nano SIM with redundancy |
| Micro SD |
(Only for E Series) 1 x for field diagnostic data logging |
| Serial | Up to 2 x RS232/422/485, DB9 |
| Power Input, Digital Output |
6-Pin Removable Terminal Block Connector 4 Pin for Redundant Power 2 Pin for DO (Relay Alarm) DO: Dry Relay Output with 1A /24V DC |
| Cellular Properties (LTE Cat.6) | |
| Standard |
UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 12 (LTE Cat.6) |
| Data Rate |
TD-SCDMA: DL Max. 4.2 Mbps, UL: Max.2.2 Mbps HSPA: DL: Max. 42 Mbps, UL: Max. 5.76 Mbps WCDMA: DL: Max 384 Kbps, UL: Max 384 Kbps LTE-FDD: DL: Max. 300 Mbps, UL: Max. 50 Mbps, 2x2 DL MIMO LTE-TDD: DL: Max. 226 Mbps, UL: Max. 28 Mbps, 2x2 DL MIMO |
| Band Information: LTE-E |
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/ 1800/ 850/ 2600/ 900/ 800/ 700/ 1500MHz) LTE: TDD B38/B40/B41 (2600/ 2300/ 2500MHz) WCDMA: FDD B1/B3/B5/B8 (2100/ 1800/ 850/ 900MHz) |
| Band Information: LTE-U |
LTE: FDD B2/B4/B5/B7/B12/B13/B17/ B25/B26/B29/B30/B66 (1900/ 1700/ 700/ 2600/ 700/ 700/ 700/ 1900/ 850/ 700/ 2300/ 1700MHz) LTE-TDD: B41 (2500MHz) WCDMA: B2/B4/B5 (1900/1700/850MHz) |
| Band Information: LTE-AP |
LTE FDD: B1/B3/B5/B7/B8/B18/B19/B21/B26 (2100/ 1800/ 850/ 2600/ 900/ 850/ 850/ 1500/ 850MHz) LTE TDD: B38/B39/B40/B41 (2600/ 1900/ 2300/ 2500MHz) TD-SCDMA: B39 (1900MHz) WCDMA: B1/B5/B6/B8/B9/B19 (2100/ 850/ UMTS only/ 900/ 1800/ 850MHz) |
| Cellular Properties (LTE Cat.4) | |
| Standard |
GSM/GPRS/EDGE 3GPP Pelease 6 UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 11 |
| Data Rate |
GPRS: DL: max. 85.6 kbps, UL: max.85.6 kbps EDGE: DL: max. 236.8 kbps, UL: max. 236.8 kbps HSPA: DL: max. 42 Mbps, UL: max. 5.76 Mbps LTE-FDD Cat.4: DL: max. 150 Mbps, UL: max. 50 Mbps, 2x2 DL MIMO LTE-TDD Cat.4: DL: max. 130 Mbps, UL: max. 35 Mbps, 2x2 DL MIMO |
| Band Information: LTE-E |
LTE: FDD B1/B3/B5/B7/B8/B20 (2100/ 1800/ 850/ 2600/ 900/ 800MHz) LTE: TDD B38/B40/B41 (2600/ 2300/ 2500MHz) WCDMA: FDD B1/B5/B8 (2100/ 850/ 900MHz) GSM: B3/B8 (1800/ 900MHz) |
| Band Information: LTE-AU |
LTE: FDD B1/B2/B3/B4/B5/B7/B8/B28 (2100/ 1900/ 1800/ 1700/ 850/ 2600/ 900/ 700MHz) LTE: TDD B40 (2300MHz) WCDMA: FDD B1/B2/B5/B8 (2100/ 1900/ 850/ 900MHz) GSM: B2/B3/B5/B8 (1900/ 1800/ 850/ 900MHz) |
| Band Information: LTE-U |
LTE: FDD B2/B4/B12 (1900/ 1700/ 700MHz) WCDMA: B2/B4/B5 (1900/ 1700/ 850MHz) |
| Band Information: LTE-CN |
LTE FDD: B1/B3/B5/B8 (2100/ 1800/ 850/ 900MHz) LTE TDD: B38/B39/B40/B41 (2600/ 1900/ 2300/ 2500MHz) TD-SCDMA: B34/B39 (2000/ 1900MHz) WCDMA: B1/B8 (2100/ 900MHz) CDMA: BC0 GSM: 900/1800MHz |
| Wi-Fi Properties | |
| Standard |
IEEE 802.11ac/a/b/g/n, 2T2R MINO 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
| Data Rate |
802.11ac: MCS0~9, max. 866Mbps 802.11b: 11Mbps / 802.11a/g: 54Mbps / 802.11n: MCS0~15, max.300Mbps Check detail TX/RX information in User Manual |
| Frequency | ISM Band, 2.412GHz~2.472GHz, 5.180MHz~5.825MHz(Band 1,4) |
| RSSI | ≦20db, compliant with CE request |
| GPS Properties | |
| GNSS | GPS/GLONASS/BeiDou/Galileo |
| Performance | Cold start: 18s, Warm start: 2.2s, Hot start: 1.8s |
| Sensitivity | Cold start: -146dBm, Reacquisition: -157dBm, Tracking: -157dBm |
| Accuracy | < 1.5M |
| GNSS Frequency |
GPS/Galileo: 1575.42±1.023 MHz GLONASS: 1597.5~1605.8 MHz BeiDou: 1561.098±2.046 MHz |
| Antenna |
Frequency range: 1561~1615MHz Polarization: RHCP or linear VSWR: <2 (Typ.) Passive antenna gain: >0dBi |
| Software | |
| Network Protocols | TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP,NTP,ARP, ICMP,DDNS |
| Management Interface | CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP |
| User Management | Radius client, TACACS+, local database |
| Serial communication | TCP Server/TCP Cleint/UDP mode, TCP Alive check, Force TX Delimiter.Timeout/interval/length, Long Distance Termination |
| Time Managemant | NTPv3, SNTP, Cellular Time |
| IoT | AWS Agent, Azure Agent, ThingMaster Agent |
| Network Management | IPv4, SNMP v1/v2c/v3/Trap, MIB II, Entity MIB, DHCP server/client, DHCP relay*, TFTP, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS (client/proxy) |
| Traffic Management | Traffic Control, 1:1 NAT, Customized NAT, NAPT(SNAT/DNAT), Port Forwarding |
| Routing | RIPv2*, Static Route |
| Security | Firewall, DMZ, HTTPs, SSH, IEEE 802.1X/RADIUS |
| Redundancy Protocol | Rapid Spanning Tree Protocol (RSTP) |
| VPN | IPsec, OpenVPN (server/ client), L2TP*, GRE |
| Cellular Configuration | Radio on/off, 2G, 3G and 4G modes Configurable, SIM Security, Connection Status, Cellular to Eth-WAN Redundancy, GPS positioning (by model), Backup Sim Retry (1-10 times) |
| WLAN Configuration | WLAN Basic Settings: Radio on/off, AP/client mode, 2.4G 11n/5G 11ac Band and Frequency selection, SSID/Multi-SSID configuration, SSID broadcast, VLAN ID, WLAN to LAN Link fault pass-through, Cellular to WLAN Auto Offload and advanced WLAN settings, 802.1X |
| Utility | ViewMaster, NetMaster, Ping, Traceroute |
| Power Requirement | |
| Input Voltage | 24V(12~48VDC) |
| Reverse Polarity Protect | Yes |
| Input Current | 0.23A@24V |
| Power Consumption | Max 5.52W@24VDC full traffic, suggest to reserve 15% tolerance |
| Mechanical | |
| Installation | DIN Rail |
| Enclosure Material | Steel Metal with Aluminum |
| Dimension | 50(W) x 151(H) x 120(D) mm / without DIN Rail Clip |
| Ingress Protection | IP30 |
| Weight | ≒600g without package |
| Environmental | |
| Operating Temperature & Humidity | -40°C~75°C , 5%~95% Non-Condensing |
| Storage Temperature | -40°C~85°C |
| MTBF | >200,000 hours |
| Warranty | 5 years |
| Approval | |
| Safety |
EN60950-1 Compliance EN62368-1:2014/AC:2017 Compliance IEC 60255-27:2013 Compliance |
| EMC | EN61000-6-2/EN61000-6-4 Compliance |
| EMI | CISPR 22, FCC part 15B Class A Compliance |
| EMS | EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5, EN61000-4-6 CS, EN61000-4-8 Magnetic Field, EN61000-4-12/16/17/18/29 |
| Radio |
RED Compliance Safety: EN 62368-1 EN 50385/EN62311 MPE assessment EN 301 489-1/17/19/52, EN 55032/55024 EN 300 328/EN 301 893 EN 301 908-1 FCC Part 15B |
| Railway | EN50121-4 |
| Environmental |
EN60870-2-2:1998 Compliance IEC 60068-2-21: 2006 Compliance |
・2-port Gigabit Ethernet Routing and Bridging
・Close to wire-speed NAT routing performance
・Ethernet ports’ hardware NAT, save CPU utilization
High speed 4G LTE & Fallback
・LTE Cat.4, 2x2 MIMO, 150M downlink and 50M uplink
・4G/3G/2G full cellular network compatibility
LTE-E:
- FDD B1/3/5/7/8/20 (2100/1800/850/2600/900/800MHz)
- TDD B38/40/41 (2600/2300/2500MHz)
LTE-U:
- FDD B2/4/12 (1900/1700/700MHz)
Enhanced Cyber Security for Critical Application
・Support LAN & WAN Security
・Firewall for traffic classification
・DMZ, port forwarding, NAT for LAN protection
・OpenVPN, IPsec for secure connection
・HTTPs/SSH secure login
Management Features
・Various configuration paths, including Web GUI, Telnet, Utility and SNMP
・USB for easy field configuration and firmware upgrade
・Software selectable RS232/422/485 Serial Interface
・SD for field diagnostic log or extended application

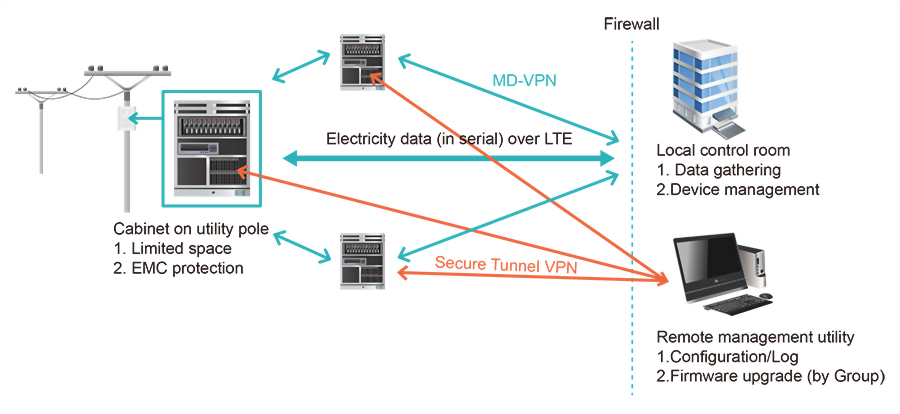

Rugged Design for Wayside Surveillance, ITS Application
・Up to 150Mbps LTE network bandwidth with EN50121-4 for Industrial IoT, ITS, Railway track side application
・Effective heat dissipation design for operating in -40~70°C environments
・Railway EMC: EN50121-4 compliance
・CE Marking
・IEC61000-6-2/IEC61000-6-4 heavy industrial
|
Specifications
|
|
| Technology | |
| Standard | 3GPP Release 11/12 Long Term Evolution (LTE), fallback 3GPP Release 7,8,9 for HSPA/UMTS |
| IEEE 802.11ac wireless local area network (WLAN), Backward support 802.11n/g/a/b Wireless LAN | |
| IEEE 802.3 10Base-T Ethernet | |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet copper | |
| IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP) | |
| IEEE 802.1Q for VLAN | |
| Interface | |
| Ethernet Port | 2 x 10/100/1000MBase-T RJ45, Auto Negotiation, Auto-MDI/MDIX |
| System LED |
1 x PWR: Green On 1 x SYS: Ready: Green On, Firmware Updating: Green Blinking 1 x DO: Red On 2 x Ethernet Ports: Link: Green On, Activity: Green Blinking 2 x Serial Ports (Serial 1/2, by model): Activity: Green Blinking 3 x Radio (Ra, Rb, Rc): Radio status Ra: SIM detected: Green On, SIM not inserted: Off Rb: 2/3G connection: Green On, Not 2/3G connection: Off Rc: 4G connection: Green On, Note 4G connection: Off |
| USB | 1 x USB for Configuration/Firmware Update |
| Reset | System Reset(2~6 Seconds) / Default Settings Reset (over 7 Seconds) |
| SMA Socket |
Up to 2 xRP-SMA Female LTE 2T2R: ANT1 for LTE Main, ANT2 for LTE Aux OR LTE + GPS: ANT1 for LTE Main, ANT2 for GPS |
| SIM Socket | 2 x Nano SIM with redundancy |
| Micro SD |
(Only for E Series) 1 x for field diagnostic data logging |
| Serial | Up to 2 x RS232/422/485, DB9 |
| Power Input, Digital Output |
6-Pin Removable Terminal Block Connector 4 Pin for Redundant Power 2 Pin for DO (Relay Alarm) DO: Dry Relay Output with 1A /24V DC |
| Cellular Properties (LTE Cat.6) | |
| Standard |
UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 12 (LTE Cat.6) |
| Data Rate |
TD-SCDMA: DL Max. 4.2 Mbps, UL: Max.2.2 Mbps HSPA: DL: Max. 42 Mbps, UL: Max. 5.76 Mbps WCDMA: DL: Max 384 Kbps, UL: Max 384 Kbps LTE-FDD: DL: Max. 300 Mbps, UL: Max. 50 Mbps, 2x2 DL MIMO LTE-TDD: DL: Max. 226 Mbps, UL: Max. 28 Mbps, 2x2 DL MIMO |
| Band Information: LTE-E |
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/ 1800/ 850/ 2600/ 900/ 800/ 700/ 1500MHz) LTE: TDD B38/B40/B41 (2600/ 2300/ 2500MHz) WCDMA: FDD B1/B3/B5/B8 (2100/ 1800/ 850/ 900MHz) |
| Band Information: LTE-U |
LTE: FDD B2/B4/B5/B7/B12/B13/B17/ B25/B26/B29/B30/B66 (1900/ 1700/ 700/ 2600/ 700/ 700/ 700/ 1900/ 850/ 700/ 2300/ 1700MHz) LTE-TDD: B41 (2500MHz) WCDMA: B2/B4/B5 (1900/1700/850MHz) |
| Band Information: LTE-AP |
LTE FDD: B1/B3/B5/B7/B8/B18/B19/B21/B26 (2100/ 1800/ 850/ 2600/ 900/ 850/ 850/ 1500/ 850MHz) LTE TDD: B38/B39/B40/B41 (2600/ 1900/ 2300/ 2500MHz) TD-SCDMA: B39 (1900MHz) WCDMA: B1/B5/B6/B8/B9/B19 (2100/ 850/ UMTS only/ 900/ 1800/ 850MHz) |
| Cellular Properties (LTE Cat.4) | |
| Standard |
GSM/GPRS/EDGE 3GPP Pelease 6 UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 11 |
| Data Rate |
GPRS: DL: max. 85.6 kbps, UL: max.85.6 kbps EDGE: DL: max. 236.8 kbps, UL: max. 236.8 kbps HSPA: DL: max. 42 Mbps, UL: max. 5.76 Mbps LTE-FDD Cat.4: DL: max. 150 Mbps, UL: max. 50 Mbps, 2x2 DL MIMO LTE-TDD Cat.4: DL: max. 130 Mbps, UL: max. 35 Mbps, 2x2 DL MIMO |
| Band Information: LTE-E |
LTE: FDD B1/B3/B5/B7/B8/B20 (2100/ 1800/ 850/ 2600/ 900/ 800MHz) LTE: TDD B38/B40/B41 (2600/ 2300/ 2500MHz) WCDMA: FDD B1/B5/B8 (2100/ 850/ 900MHz) GSM: B3/B8 (1800/ 900MHz) |
| Band Information: LTE-AU |
LTE: FDD B1/B2/B3/B4/B5/B7/B8/B28 (2100/ 1900/ 1800/ 1700/ 850/ 2600/ 900/ 700MHz) LTE: TDD B40 (2300MHz) WCDMA: FDD B1/B2/B5/B8 (2100/ 1900/ 850/ 900MHz) GSM: B2/B3/B5/B8 (1900/ 1800/ 850/ 900MHz) |
| Band Information: LTE-U |
LTE: FDD B2/B4/B12 (1900/ 1700/ 700MHz) WCDMA: B2/B4/B5 (1900/ 1700/ 850MHz) |
| Band Information: LTE-CN |
LTE FDD: B1/B3/B5/B8 (2100/ 1800/ 850/ 900MHz) LTE TDD: B38/B39/B40/B41 (2600/ 1900/ 2300/ 2500MHz) TD-SCDMA: B34/B39 (2000/ 1900MHz) WCDMA: B1/B8 (2100/ 900MHz) CDMA: BC0 GSM: 900/1800MHz |
| Wi-Fi Properties | |
| Standard |
IEEE 802.11ac/a/b/g/n, 2T2R MINO 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
| Data Rate |
802.11ac: MCS0~9, max. 866Mbps 802.11b: 11Mbps / 802.11a/g: 54Mbps / 802.11n: MCS0~15, max.300Mbps Check detail TX/RX information in User Manual |
| Frequency | ISM Band, 2.412GHz~2.472GHz, 5.180MHz~5.825MHz(Band 1,4) |
| RSSI | ≦20db, compliant with CE request |
| GPS Properties | |
| GNSS | GPS/GLONASS/BeiDou/Galileo |
| Performance | Cold start: 18s, Warm start: 2.2s, Hot start: 1.8s |
| Sensitivity | Cold start: -146dBm, Reacquisition: -157dBm, Tracking: -157dBm |
| Accuracy | < 1.5M |
| GNSS Frequency |
GPS/Galileo: 1575.42±1.023 MHz GLONASS: 1597.5~1605.8 MHz BeiDou: 1561.098±2.046 MHz |
| Antenna |
Frequency range: 1561~1615MHz Polarization: RHCP or linear VSWR: <2 (Typ.) Passive antenna gain: >0dBi |
| Software | |
| Network Protocols | TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP,NTP,ARP, ICMP,DDNS |
| Management Interface | CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP |
| User Management | Radius client, TACACS+, local database |
| Serial communication | TCP Server/TCP Cleint/UDP mode, TCP Alive check, Force TX Delimiter.Timeout/interval/length, Long Distance Termination |
| Time Managemant | NTPv3, SNTP, Cellular Time |
| IoT | AWS Agent, Azure Agent, ThingMaster Agent |
| Network Management | IPv4, SNMP v1/v2c/v3/Trap, MIB II, Entity MIB, DHCP server/client, DHCP relay*, TFTP, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS (client/proxy) |
| Traffic Management | Traffic Control, 1:1 NAT, Customized NAT, NAPT(SNAT/DNAT), Port Forwarding |
| Routing | RIPv2*, Static Route |
| Security | Firewall, DMZ, HTTPs, SSH, IEEE 802.1X/RADIUS |
| Redundancy Protocol | Rapid Spanning Tree Protocol (RSTP) |
| VPN | IPsec, OpenVPN (server/ client), L2TP*, GRE |
| Cellular Configuration | Radio on/off, 2G, 3G and 4G modes Configurable, SIM Security, Connection Status, Cellular to Eth-WAN Redundancy, GPS positioning (by model), Backup Sim Retry (1-10 times) |
| WLAN Configuration | WLAN Basic Settings: Radio on/off, AP/client mode, 2.4G 11n/5G 11ac Band and Frequency selection, SSID/Multi-SSID configuration, SSID broadcast, VLAN ID, WLAN to LAN Link fault pass-through, Cellular to WLAN Auto Offload and advanced WLAN settings, 802.1X |
| Utility | ViewMaster, NetMaster, Ping, Traceroute |
| Power Requirement | |
| Input Voltage | 24V(12~48VDC) |
| Reverse Polarity Protect | Yes |
| Input Current | 0.23A@24V |
| Power Consumption | Max 5.52W@24VDC full traffic, suggest to reserve 15% tolerance |
| Mechanical | |
| Installation | DIN Rail |
| Enclosure Material | Steel Metal with Aluminum |
| Dimension | 50(W) x 151(H) x 120(D) mm / without DIN Rail Clip |
| Ingress Protection | IP30 |
| Weight | ≒600g without package |
| Environmental | |
| Operating Temperature & Humidity | -40°C~75°C , 5%~95% Non-Condensing |
| Storage Temperature | -40°C~85°C |
| MTBF | >200,000 hours |
| Warranty | 5 years |
| Approval | |
| Safety |
EN60950-1 Compliance EN62368-1:2014/AC:2017 Compliance IEC 60255-27:2013 Compliance |
| EMC | EN61000-6-2/EN61000-6-4 Compliance |
| EMI | CISPR 22, FCC part 15B Class A Compliance |
| EMS | EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5, EN61000-4-6 CS, EN61000-4-8 Magnetic Field, EN61000-4-12/16/17/18/29 |
| Radio |
RED Compliance Safety: EN 62368-1 EN 50385/EN62311 MPE assessment EN 301 489-1/17/19/52, EN 55032/55024 EN 300 328/EN 301 893 EN 301 908-1 FCC Part 15B |
| Railway | EN50121-4 |
| Environmental |
EN60870-2-2:1998 Compliance IEC 60068-2-21: 2006 Compliance |
Datasheet....jpg)
|
QIG...
|
| Ordering Information | |
| Model Name | |
| WR302G | Industrial Secuer Serial Server, 2GbE+2COM, USB, SD |
| WR312G-WLAN | Industrial Secuer Wireless Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN |
| WR312G-LTE-E | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E, 1SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR312G-LTE-CN | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-CN, 1SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
| WR312G-LTE6-E | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E Cat.6, 1SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41 |
| WR322GR-WLAN+LTE-E | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-E, GPS, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR322GR-WLAN+LTE-CN | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-CN, GPS, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
| WR322GR-WLAN+LTE6-E | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-E Cat.6, GPS, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41 |
| WR312G-LTE-E (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, LTE-E, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR312G-LTE-CN (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, LTE-CN, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
| WR312G-LTE6-E (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, LTE-E Cat.6, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41 |
| WR322GR-WLAN+LTE-E (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-E, GPS, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR322GR-WLAN+LTE-CN (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-CN, GPS, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
| WR322GR-WLAN+LTE6-E (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-E Cat.6, GPS, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41 |
| WR312G-LTE-E (D Series) | Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-E, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR312G-LTE-CN (D Series) | Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-CN, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
| WR312G-LTE6-E (D Series) | Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-E Cat.6, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41 |
| WR312G-LTE-E (E Series) | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E, 1SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR312G-LTE-CN (E Series) | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-CN, 1SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
|
*Embedded SIM by request *LTE-AU/LTE-U Cat.4 by request *LTE-AP/LTE-U Cat.6 by request *Dual LTE concurrent by request *GPS support for WR312G-LTE series by request |
|
| Package List | |
| 1 x Product Unit | |
| 1 x 6-pin Removable Terminal Connector | |
| 2 x LTE Antenna, Black | |
| 1 x Atached Din Clip | |
| 1 x Quick Installation Guide | |
-
Real time status to improve energy efficiency
- RS232/422/485 9-pin full serial functions
-
Secure control/data channel
- MD-VPN
- IPsec
- OpenVPN
- SD Card for persistent log storage
- Consistent LTE connectivity & exceptional EMC capability
| ► WoMaster's industrial secured and rugged LTE router for IIoT WR302G, WR312G, WR322G Series |
|
|
-
- Real time status to improve energy efficiency
- RS232/422/485 9-pin full serial functions
- Secure control/data channel ◦MD-VPN
◦OpenVPN
- SD Card for persistent log storage
- Consistent LTE connectivity & exceptional EMC capability
| Ordering Information | |
| Model Name | |
| WR302G | Industrial Secuer Serial Server, 2GbE+2COM, USB, SD |
| WR312G-WLAN | Industrial Secuer Wireless Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN |
| WR312G-LTE-E | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E, 1SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR312G-LTE-CN | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-CN, 1SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
| WR312G-LTE6-E | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E Cat.6, 1SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41 |
| WR322GR-WLAN+LTE-E | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-E, GPS, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR322GR-WLAN+LTE-CN | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-CN, GPS, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
| WR322GR-WLAN+LTE6-E | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-E Cat.6, GPS, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41 |
| WR312G-LTE-E (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, LTE-E, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR312G-LTE-CN (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, LTE-CN, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
| WR312G-LTE6-E (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, LTE-E Cat.6, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41 |
| WR322GR-WLAN+LTE-E (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-E, GPS, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR322GR-WLAN+LTE-CN (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-CN, GPS, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
| WR322GR-WLAN+LTE6-E (C Series) | Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-E Cat.6, GPS, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41 |
| WR312G-LTE-E (D Series) | Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-E, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR312G-LTE-CN (D Series) | Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-CN, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
| WR312G-LTE6-E (D Series) | Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-E Cat.6, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41 |
| WR312G-LTE-E (E Series) | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E, 1SIM, FDD B1/3/5/7/8/20, TDD B38/40/41 |
| WR312G-LTE-CN (E Series) | Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-CN, 1SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41 |
|
*Embedded SIM by request *LTE-AU/LTE-U Cat.4 by request *LTE-AP/LTE-U Cat.6 by request *Dual LTE concurrent by request *GPS support for WR312G-LTE series by request |
|
| Package List | |
| 1 x Product Unit | |
| 1 x 6-pin Removable Terminal Connector | |
| 2 x LTE Antenna, Black | |
| 1 x Atached Din Clip | |
| 1 x Quick Installation Guide | |
