WR329P-WLAN-LTE 工業級LTE POE交換器
Industrial 8+1G port Cellular PoE Routing Switch,
802.11ac/n WLAN,
LTE-E, FDD B1/3/5/7/8/20,
TDD B38/40/41
802.11ac/n WLAN,
LTE-E, FDD B1/3/5/7/8/20,
TDD B38/40/41
型號 :
wr329p wlan lte
The cellular LTE and WLAN wireless routing switch WR329 series include WR329-WLAN-LTE with 8-Port Ethernet and 1 GbE WAN port, WR329P-WLAN-LTE with 8-port PoE+ boost up to 30W/port for bus/vehicle, WR329A-WLAN-LTE with 1 RS232/422/485 serial port, 3 DIs and 2 DOs for IoT sensors, DIO applications and WR329PA-WLAN-LTE for both PoE and IoT features. The security design includes static routing, IPSec VPN, DMZ, and a stateful firewall inspection in order to segregate networks and protect mission-critical data. With support for Network Address Translation (NAT) and port-forwarding, it isolates the threats from the Internet. The USB port for configuration can help mass installation and site support. The embedded MQTT and RESTful API enables public cloud integration such as AWS®, Azure®, or user-defined cloud. The private cloud platform ThingsMaster® by WoMaster can also be set up for an instant and secured access for video surveillance and IoT control over the cloud.
| Technology | |
| Standard | 3GPP Release 11 Long Term Evolution (LTE), fallback 3GPP Release 7,8,9 for HSPA/UMTS |
| IEEE 802.11ac wireless local area network (WLAN), Backward support 802.11a/b/g/n Wireless LAN | |
| IEEE 802.3 10Base-TX Ethernet | |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper | |
| IEEE 802.3af/at Power-over-Ethernet (WR329P, WR329PA) | |
| IEEE 802.1Q for VLAN | |
| Interface | |
| Ethernet Port |
WR329/WR329A LAN: 8 x 10/100Base-TX RJ45, Auto Negotiation, Auto MDI/MDI-X WAN: 1 x 100/1000Base-T RJ45, Auto Negotiation, Auto MDI/MDI-X WR329P/WR329PA LAN: 8 x 10/100Base-TX RJ45, Auto Negotiation, Auto MDI/MDI-X, IEEE 802.3af/at PoE/PoE+ WAN: 1 x 100/1000Base-T RJ45, Auto Negotiation, Auto MDI/MDI-X |
| System LED (Front Panel) |
1x DO: Red On 1x Power: Green On 1x SYS: Ready: Green On, Firmware Updating: Green Blinking 1x WAN: Link: Green On, Activity: Green Blinking 1x 1000M: WAN port speed, 1000M: Green On, Not 1000M: Off WR329-2xWLAN Series 3x Radio (Ra, Rb, Rc): Radio status Ra: Reserved Rb: AP mode: Green On, Station mode connected: Green Blinking, Station mode/radio disable: Off Rc: AP mode: Green On, Station mode connected: Green Blinking, Station mode/radio disable: Off WR329-WLAN+LTE series: 3x Radio (Ra, Rb, Rc): Radio status Ra: SIM detected: Green On, SIM not inserted: Off Rb: 4G connection: Green On, 2/3G connection: Green blinking, Disconnected: Off Rc: AP mode: Green On, Station mode connected: Green Blinking, Station mode/radio disable: Off (Note: WR319-WLAN series use Rc only, WR319-LTE series use Ra/Rb only) |
| Ethernet Port LED |
Link: Green On, Activity: Green Blinking WR329P/WR329PA PoE power feeding: Amber on, PoE power not feeding: Off |
| USB | 1 USB for Configuration/Firmware Update |
| Reset | System Reset(2~6 Seconds) / Default Settings Reset(over 7 Seconds) |
| SMA Connector | Up to 5 LTE/GPS: SMA Female; Wi-Fi: RP-SMA Female |
| SIM Socket | 2 Nano SIM (Cellular Models Only) |
| Power Input, Digital Output |
4-Pin Removable Terminal Block Connector 2 Pin for Power Input 2 Pin for DO (Relay Alarm) DO: Dry Relay Output with 0.5A/24V DC |
|
IIoT Expansion (Back Panel) WR329A/ WR329PA |
LED: 1x DO: Red On 1x Serial: Green Blinking, Packets transmitting/receiving |
|
Serial: 1x RS232/422/485, DB9 female |
|
|
Digital Input/Output: 1x 6-Pin Removable Terminal Block Connector 4 pin for 3x Digital Input, High: 2-30V, Low: 0-1V, 2-pin for 1x Digital Output: max. 30V/100mA |
| Cellular Properties | (LTE Cat. 4) |
| Standard |
GSM/GPRS/EDGE 3GPP Release 6 UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 11 |
| Data Rate |
GPRS: DL: max. 85.6 kbps, UL: max. 85.6 kbps EDGE: DL: max. 236.8 kbps, UL: max. 236.8 kbps HSPA: DL: max. 42 Mbps, UL: max. 5.76 Mbps LTE-FDD Cat.4: DL: max. 150 Mbps, UL: max. 50 Mbps, 2x2 DL MIMO LTE-TDD Cat.4: DL: max. 130 Mbps, UL: max. 35 Mbps, 2x2 DL MIMO |
| Band Information: LTE-E |
LTE: FDD B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800MHz) LTE: TDD B38/B40/B41 (2600/2300/2500MHz) WCDMA: FDD B1/B5/B8 (2100/850/900MHz) GSM: B3/B8 (1800/900MHz) |
| Band Information: LTE-AU |
LTE: FDD B1/B2/B3/B4/B5/B7/B8/B28 (2100/1900/1800/1700/850/2600/900/700MHz) LTE: TDD B40 (2300MHz) WCDMA: FDD B1/B2/B5/B8 (2100/1900/850/900MHz) GSM: B2/B3/B5/B8 (1900/1800/850/900MHz) |
| Band Information: LTE-U |
FDD LTE: B2/B4/B12 (1900/1700/700MHz) WCDMA: B2/B4/B5 (1900/1700/850MHz) |
| Band Information: LTE-CN |
LTE FDD: B1/B3/B5/B8 (2100/1800/850/900MHz) LTE TDD: B38/B39/B40/B41 (2600/1900/2300/2500MHz) TD-SCDMA: B34/B39 (2000/1900MHz) WCDMA: B1/B8 (2100/900MHz) CDMA: BC0 GSM: 900/1800MHz |
|
Band Information: LTE-V (Verizon Certified) |
FDD LTE: B4/B13 (1700/700MHz) |
| Cellular Properties | (LTE Cat. 6) |
| Standard |
UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 12 (LTE Cat.6) |
| Data Rate |
TD-SCDMA: DL Max 4.2Mbps, UL: Max 2.2Mbps HSPA: DL: Max. 42 Mbps, UL: Max. 5.76 Mbps WCDMA: DL: Max 384Kbps, UL: Max 384Kbps LTE-FDD: DL: Max. 300 Mbps, UL: Max. 50 Mbps, 2x2 DL MIMO LTE-TDD: DL: Max. 226 Mbps, UL: Max. 28 Mbps, 2x2 DL MIMO |
| Band Information: LTE-E |
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500MHz) LTE-TDD: B38/B40/B41 (2600/2300/2500MHz) WCDMA: B1/B3/B5/B8 (2100/1800/850/900MHz) |
| Band Information: LTE-U |
LTE-FDD: B2/B4/B5/B7/B12/B13/B17/B25/B26/B29/B30/B66 (1900/1700/700/2600/700/700/700/1900/850/700/2300/1700MHz) LTE-TDD: B41 (2500MHz) WCDMA: B2/B4/B5 (1900/1700/850MHz) |
| Band Information: LTE-AP |
LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B21/B26 (2100/1800/850/2600/900/850/850/1500/850MHz) LTE-TDD: B38/B39/B40/B41 (2600/1900/2300/2500MHz) WCDMA: B1/B5/B6/B8/B9/B19 (2100/850/UMTS only/900/1800/850MHz) TD-SCDMA: B39 (1900MHz) |
| GPS Properties | |
| GNSS | GPS/GLONASS/BeiDou/Galileo |
| Performance | Cold start: 18s, Warm start: 2.2s, Hot start: 1.8s |
| Sensitivity | Cold start: -146dBm, Reacquisition: -157dBm, Tracking: -157dBm |
| Accuracy | <1.5M |
| GNSS Frequency |
GPS/Galileo: 1575.42±1.023 MHz GLONASS: 1597.5~1605.8 MHz BeiDou: 1561.098±2.046 MHz |
|
Antenna (Optional Accessory- A-GPS-27-RSM-3M ) |
Frequency range: 1561~1615MHz Polarization: RHCP or linear VSWR: <2 (Typ.) Passive antenna gain: >0dBi |
| Wi-Fi Properties | |
| Standard |
IEEE 802.11ac/a/b/g/n (2T2R) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
| Data Rate |
802.11ac: MCS0 ~ 9, max. 866Mbps 802.11b: 11Mbps / 802.11a/g: 54Mbps / 802.11n: MCS0 ~ 15, max. 300Mbps |
| Frequency | IISM Band, 2.412GHz ~ 2.472GHz, 5.180MHz ~ 5.825MHz(Band 1,4) |
| MIMO | 2T2R, 2xAntennas (Optional Accessory) |
| RSSI | ≦20db, compliant with CE request |
| Software | |
| Management | CGI WebGUI, Command Line Interface (CLI), IPv4/IPv6*, Telnet, SNMP v1/v2c/v3, DDNS, DHCP server/client, DHCP Relay, TFTP, System Log, SMTP, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS (client/proxy) |
| Traffic Management | Flow Control, Traffic shaping |
| Filter | IEEE802.1Q VLAN |
| Security |
IEEE 802.1X/RADIUS, TLS v1.2, HTTPs/SSH, First login password management WLAN AP Security: Share Key, WPA/WPA2-PSK(Pre-Shared Key), WPA/WPA2 Enterprise Encryption: 64/128-bit WEP(Wired Equivalent Privacy), TKIP(WPA-PSK), AES(WPA2-PSK) |
| Advanced Security | TACACS+, Multi-user authentication |
| Time Management | NTP, SNTP, Cellular Time |
| Redundancy Protocol | WAN/LTE Redundancy |
|
WAN / Routing / NAT/ Firewall / VPN |
Routing: RIPv2, OSPFv2, VRRPv2 NAT: 1-1 NAT, NAPT(SNAT/DNAT), DMZ Firewall: Stateful Inspection firewall, IP/Port Filter, MAC Filter* VPN: IPSec, OpenVPN, L2TP, GRE, PPTP* |
| IIoT Industrial Protocol | Modbus RTU, MQTT, RESTful API |
| Private Cloud | ThingsMaster, ThingMaster OTA |
| Public Cloud | AWS Agent, Azure Agent |
| Location | Google map, Baidu map |
| MIB | MIB-II, Entity MIB, WoMaster Private MIB |
| Utility | ViewMaster, NetMaster, Ping, Traceroute |
|
Serial communication (WR329A/ WR329PA) |
TCP Server/TCP Client/UDP mode, TCP Alive check, Force TX Delimiter/Timeout/interval/length, Long Distance Termination |
|
Cellular Configuration (By Optional module) |
Radio on/off, 4G LTE/3G HSPA Configuration, SIM Security, Connection Status, Cellular to Eth-WAN Redundancy, GPS positioning, Backup SIM Retry (1-10 times) |
|
WLAN Configuration (By Optional module) |
WLAN Basic Settings: Radio on/off, 2.4G 11n/5G 11ac Band and Frequency selection, SSID/Multi-SSID configuration, SSID broadcast, Cellular to WLAN Auto Offload and advanced WLAN settings, 802.1X |
| PoE(WR329P,WR329PA) | |
| Power forwarding mode | Alternative A |
| PoE Power Budget |
System: Max. 120W@70°C/12VDC, Max.60W@70°C/8VDC Per Port: Max. 30W |
| PoE Standard | IEEE 802.3af/at |
| Management | PoE Enable/Disable, System/Port Power Budget Control, PoE Scheduling, PoE Status |
| Power Requirement | |
| Input Voltage |
WR329P/WR329PA: 12/24VDC (8~54VDC with booster to 54V) min. 8V low-peak auxiliary voltage WR329/WR329A: 12/24VDC (8~32VDC) |
| Reverse Polarity Protect | Yes |
| Input Current |
WR329: 0.2A@24VDC, 0.58A@8VDC WR329A: 0.21A@24VDC, 0.6A@8VDC WR329P/329PA: 5.67A@24VDC with 120W PD Loading, 10.76A@8VDC with 60W PD loading |
| Power Consumption |
WR329: Max. 4.8W@24VDC full traffic, suggest to reserve 15% tolerance. WR329A: Max. 5W@24VDC full traffic, suggest to reserve 15% tolerance. WR329P/WR329PA: Max. 138.08W@24VDC with 120W PD loading, Max. 86.08W@8VDC with 60W PD loading, suggest to reserve 15% tolerance. |
| Mechanical | |
| Installation | Wall mount / DIN Rail kit |
| Enclosure Material | Steel Metal with Aluminum |
| Dimension |
WR329P/WR329PA 200x 55 x 126 (W x H x D) / without Mounting Clip WR329/WR329A 200x 51 x 126 (W x H x D) / without Mounting Clip |
| Ingress Protection | IP30 |
| Weight | ~1350g without package |
| Environmental | |
| Operating Temperature & Humidity | -40°C~70°C , 5%~95% Non- Condensing |
| Storage Temperature | -40°C~85°C |
| MTBF | >200,000 hours |
| Warranty | 5 years |
| Approval | |
| Safety | EN60950-1 Compliance |
| EMC | EN61000-6-2/EN61000-6-4 |
| EMI | CISPR 22, FCC part 15B Class A |
| Radio |
RED Compliance Safety: EN 62368-1 EN 50385/EN62311 MPE assessment EN 301 489-1/17/19/52, EN 55032/55024 EN 300 328/EN 301 893 EN 301 908-1 FCC Part 15B |
| Railway | EN50155 / EN61373 |
High Throughput Wireless Performance
• LTE Cat.4, 2x2 MIMO, 150M downlink and 50M uplink
• 4G/3G/2G full cellular network compatibility
LTE-E: FDD B1/3/5/7/8/20; TDD B38/40/41
LTE-AU: FDD B1/B2/B3/B4/B5/B7/B8/B28; TDD B40
LTE-CN: FDD B1/3/5//8; TDD B38/39/40/41
LTE-U: FDD B2/B4/B12
• IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
• Selectable 5G/2.4G Wi-Fi for local coverage, up to 866Mbps bandwidth
Multiple Ethernet ports
• Supports 8x Fast Ethernet PoE+ ports, provides 100M wire-speed switching
• Supports 1x Gigabit Ethernet WAN port for uplink or NVR
• LAN Switch port to LTE or WAN port routing
• WAN to LTE Redundant
Extreme PoE Capability
• Provides 8-port IEEE 802.3af/at compliance PoE+, up to 30W per port
• 12/24V to 54VDC Booster PoE
• Up to 120W PoE power budget
• Complete PoE management including per-port Power Budget Control, PoE Scheduling and PoE Status
Enhanced Cyber Security for Critical Application
• Firewall for traffic classification, port forwarding
• Support NAT, DMZ for LAN protection
• Support OpenVPN, IPsec for secure connection
• Support HTTPs/SSH secure login
Management Features
• Various configuration paths, including WebGUI, CLI and SNMP
• Support ViewMaster Utility, Remote configuration software utility and NetMaster NMS System
• Redundancy: Supports WAN to LTE redundancy, wireless auto-offload
• LLDP topology discovery
• Diagnostic tool includes Radio LED, Ping, TFTP, SNMP Trap, E-mail Alert and System Log
• LTE watchdog, auto-reconnect cellular connection
• OPCuA, Cloud monitoring by request

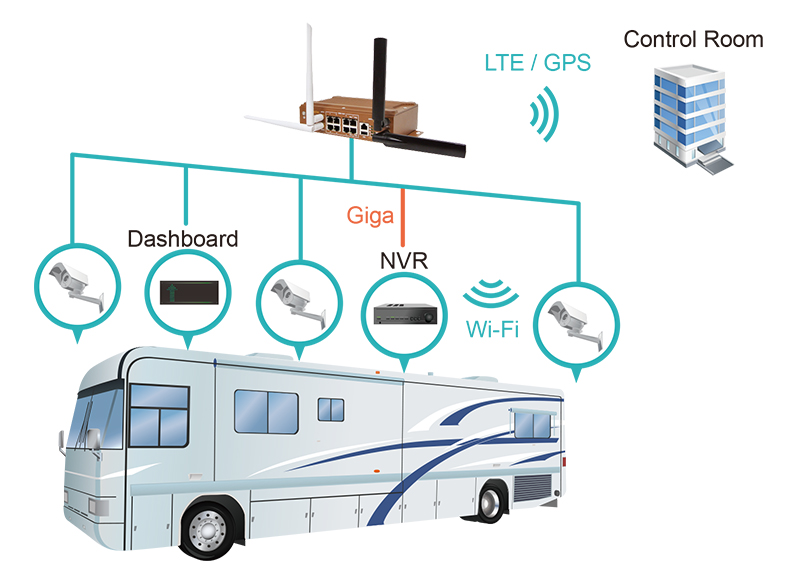

Rugged Design for Bus, Wayside Surveillance, ITS Application
• Railway EMC: EN50121-4 compliance
• IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
• ITS/Traffic Control: NEMA-TS2 compliance
• Vehicle: E-mark compliance
• Radio RED for CE Marking
• Emission: FCC part 15 B Class A
• Effective heat dissipation design for operating in -40~75°C environments
• LTE Cat.4, 2x2 MIMO, 150M downlink and 50M uplink
• 4G/3G/2G full cellular network compatibility
LTE-E: FDD B1/3/5/7/8/20; TDD B38/40/41
LTE-AU: FDD B1/B2/B3/B4/B5/B7/B8/B28; TDD B40
LTE-CN: FDD B1/3/5//8; TDD B38/39/40/41
LTE-U: FDD B2/B4/B12
• IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
• Selectable 5G/2.4G Wi-Fi for local coverage, up to 866Mbps bandwidth
Multiple Ethernet ports
• Supports 8x Fast Ethernet PoE+ ports, provides 100M wire-speed switching
• Supports 1x Gigabit Ethernet WAN port for uplink or NVR
• LAN Switch port to LTE or WAN port routing
• WAN to LTE Redundant
Extreme PoE Capability
• Provides 8-port IEEE 802.3af/at compliance PoE+, up to 30W per port
• 12/24V to 54VDC Booster PoE
• Up to 120W PoE power budget
• Complete PoE management including per-port Power Budget Control, PoE Scheduling and PoE Status
Enhanced Cyber Security for Critical Application
• Firewall for traffic classification, port forwarding
• Support NAT, DMZ for LAN protection
• Support OpenVPN, IPsec for secure connection
• Support HTTPs/SSH secure login
Management Features
• Various configuration paths, including WebGUI, CLI and SNMP
• Support ViewMaster Utility, Remote configuration software utility and NetMaster NMS System
• Redundancy: Supports WAN to LTE redundancy, wireless auto-offload
• LLDP topology discovery
• Diagnostic tool includes Radio LED, Ping, TFTP, SNMP Trap, E-mail Alert and System Log
• LTE watchdog, auto-reconnect cellular connection
• OPCuA, Cloud monitoring by request
Rugged Design for Bus, Wayside Surveillance, ITS Application
• Railway EMC: EN50121-4 compliance
• IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
• ITS/Traffic Control: NEMA-TS2 compliance
• Vehicle: E-mark compliance
• Radio RED for CE Marking
• Emission: FCC part 15 B Class A
• Effective heat dissipation design for operating in -40~75°C environments
 |
|
