DS406 工業級乙太網路交換器

Industrial 4G+2G SFP Managed Ethernet Switch with 4 Gigabit Ethernet ports and 2 100M and Gigabit SFP optical ports
Supports the latest ERPS v2 ring standard and is fully compatible with third-party devices
Can withstand harsh industrial environments (-40~70°C)
Product overload test
型號 : ds406

DS406 is an industrial L2 smart managed Ethernet switch equipped with 4 Gigabit Ethernet ports with 2 100M/1000M fiber SFP ports. ViewMaster configuration utility and USB port for configuration file can help mass installation and site support. DS406 supports latest ERPS v.2 ring standard and is fully compatible with 3rd party devices for flexible network planning. Wide operation temperature design (-40~70oC) can withstand critical industrial environment. All switches pass 4 hours 60oC stress test before delivery to ensure utmost quality.
 Technology
Standard IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.3u 100Base-FX Fast Ethernet Fiber
IEEE 802.3x Flow Control and back-pressure
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.1AB Link Layer Discovery Protocol(LLDP)
IEEE 802.1p Class of Service (CoS)
IEEE 802.1Q VLAN
ITU-T G.8032 Ethernet ring protection switching(ERPS)
IEEE 802.1D-2004 Rapid Spanning Tree Protocol(RSTP)
IEEE 1588Precision Time Protocol v1/v2
 Interface
Ethernet Port 4 x 10/100/1000BaseT RJ-45, Auto-Negotiation
2 x 100/1000M SFP
System LED 2 x Power: Green On
1 x SYS: Ready: (Green On), Fireware Updating: (Green Blinking)
1 x DO: Red On
2 x Fiber:  Link (Green On), Activity (Green Blinking)

1 x Ring: Off: Ring disabled, Green On: Ring normal (Not RPL Owner),Green Blinking: Ring normal (RPL Owner)
1 x Ra: Green On: Ring abnormal, Green Blinking: Ring port fail
Ethernet Port LED Link (Green On), Activity (Green Blinking)
Rsest System Reset(2-6 Seconds) / Default Settings Reset (over 7 Seconds)
USB 1 x USB for Configuration/Firmware Update
Power Input, Digital Output 6-Pin Removable Terminal Block Connector
   4 Pin for Redundant Power
   2 Pin for DO( Relay Alarm)
DO: Dry Relay Output with 0.5A /24V DC
 Power Requirement
Input Voltage 24VDC(12~48VDC)
Reverse Polarity Protect Yes
Input Current 0.3A@24V
Power Consumption Max 7.2W@24VDC full loading, suggest to reserve 15% tolerance
 Software
Management  Interface CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
Time Management NTP, *IEEE 1588 Precision Time Protocol v1/v2
Network Management IPv4, SNMP v1/v2/v3/Trap, MIBs,  LLDP, DHCP server/client, TFTP, System Log, SMTP
Traffic Management Flow Control, VLAN, Class of Service, QOS, Rate Control, Port Mirror
Security Management IP, SSH, SSL
Redundancy Rapid Spanning Tree Protocol (RSTP)
ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPS)
 Mechanical
Installation DIN Rail
Enclosure Material Steel Metal with Aluminum
Dimension 67.9(W) x 149(H) x 125(D) mm / without DIN Rail Clip
Ingress Protection IP30
Weight Around 765g without package
 Environmental
Operating Temperature & Humidity -40°C~70°C , 5%~95% Non-Condensing
Storage Temperature -40°C~85°C
MTBF >200,000 hours
Warranty 5 years
 Approval
Safety IEC60950-1 Compliance
EMC EN61000-6-2/EN61000-6-4
EMI CISPR 22, FCC part 15B Class A
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 , EN61000-4-6 CS, EN61000-4-8 Magnetic Field
High Throughput Ethernet Switching
・4 Gigabit Ethernet port and 2 SFP slots
・8K MAC address table
・Stores and Forwards with non-blocking Switch Fabric
Management Features
・Various configuration paths, including WebGUI, CLI, Telnet, SNMP V1/V2c/V3/trap
・LLDP topology control
・USB for easy field side configuration and firmware update
・*IEEE 1588v1/2 PTP time management
・Software utility interface for LAN devices management
・*NMS system for individual component monitoring
Rugged Design for IP Surveillance
・Robust design protects from mechanical deformation
・Wide operating temperature and humidity range -40~70℃,  95% humidity
・Wide operating voltage range 12~48VDC
・IEC 61000-6-2/4 Heavy Industrial Environment
ITU-T G.8032 v1/v2 ERPS Ring Redundancy
・An ITU standard Ring redundancy Protocol
・Provide sub-50ms protection and recovery switching for Ethernet traffic
・Interoperate with 3rd party industrial switch and still remain fast recovery time
・Interoperate with commercial switch instead of STP/RSTP
・Efficient network interconnection and topology with ERPS Chain, multiple chain

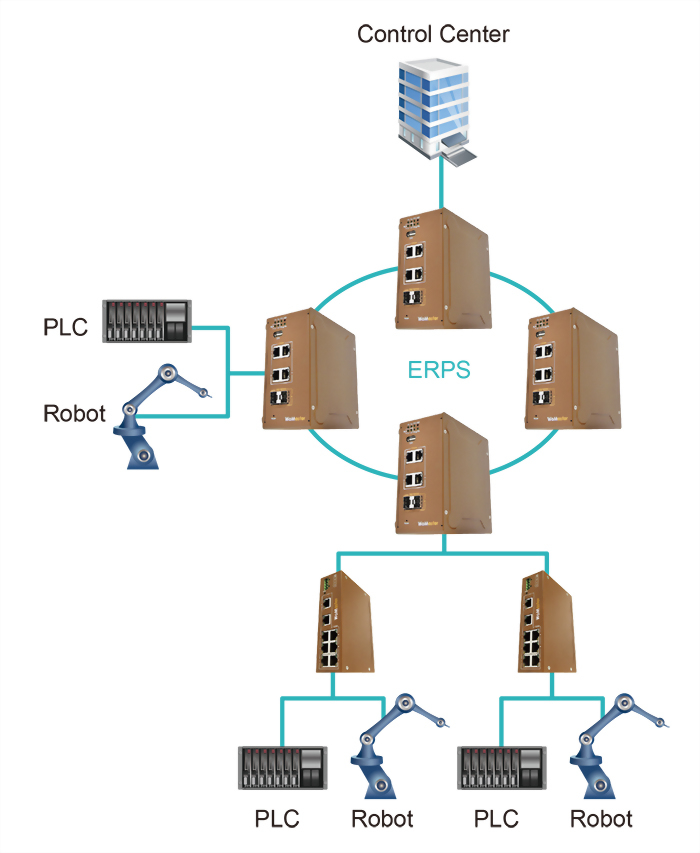

  • The DS108 is equipped with eight 100M Ethernet ports for connecting robots and PLCs.
  • The DS406 is equipped with 4 Gigabit Ethernet ports and 2 100M and Gigabit SFP ports to provide a long-distance connection to the control center.
  • The DS406 supports the G.8032 v1 / v2 ERPS network redundancy, keeps the network available.
  • Wide temperature designdesign for operating in -40~75℃ environment.


Ordering Information
 Model Name
DS406 Industrial 4G+2GFManaged Ethernet Switch
Package List
1 x Product Unit
1 x 6-pin Removable Terminal Connector
1 x Attached Din Clip
1 x Quick Installation Guide

Optional Accessory
 Item
SFPGEM05 SFP, 1000Mbps, LC, multi, 550M, 0~70°C
SFPGEM05T
SFP, 1000Mbps, LC, multi, 550M, -40~85°C
SFPGEM05D
SFP, 1000Mbps, LC, multi, DDM, 550M, 0~70°C
SFPGEM05DT
SFP, 1000Mbps, LC, multi, DDM, 550M, -40~85°C
SFPGEM2
SFP, 1000Mbps, LC, multi, 2KM, 0~70°C
SFPGEM2T
SFP, 1000Mbps, LC, multi, 2KM, -40~85°C
SFPGEM2D
SFP, 1000Mbps, LC, multi, DDM, 2KM, 0~70°C
SFPGEM2DT
SFP, 1000Mbps, LC, multi, DDM, 2KM, -40~85°C
SFPGES10
SFP, 1000Mbps, LC, single, 10KM, 0~70°C
SFPGES10T
SFP, 1000Mbps, LC, single, 10KM, -40~85°C
SFPGES10D
SFP, 1000Mbps, LC, single, DDM, 10KM, 0~70°C
SFPGES10DT
SFP, 1000Mbps, LC, single, DDM, 10KM, -40~85°C
SFPGES30 SFP, 1000Mbps, LC, single, 30KM, 0~70°C
SFPGES30T SFP, 1000Mbps, LC, single, 30KM, -40~85°C
SFPGES30D SFP, 1000Mbps, LC, single, DDM, 30KM, 0~70°C
SFPGES30DT
SFP, 1000Mbps, LC, single, DDM, 30KM, -40~85°C
SFPGES40 SFP, 1000Mbps, LC, single, 40KM,  0~70°C
SFPGES40T SFP, 1000Mbps, LC, single, 40KM, -40~85°C
SFPGES40D SFP, 1000Mbps, LC, single, DDM, 40KM, 0~70°C
